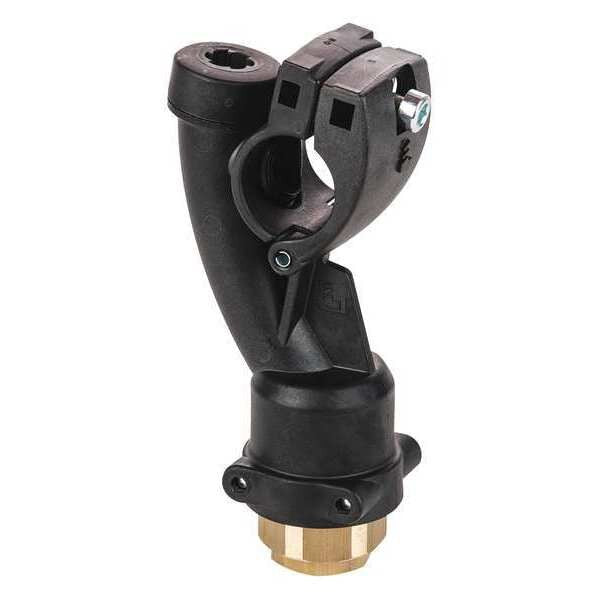

Drop Bracket, For 40mm to 17mm Tubing

SKU
Brand Transair
Categories
Description Tubing Fitting, Application Air, Inert Gases, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1 1/2 in, Fitting Side B Tube Outer Diameter 1/2 in, Fitting Material Polyamide, Color Black, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 1 1/2 in, Specific Fitting Shape Drop Bracket Adapter, Release Type Ring
graingerSKU: , mscSKU: 37465135, zoro_no: G2432141, mongo_id: 65bbe94a22d7a989a9947bb3

Web Price

$89.86 / each

Qty

Product Details

Application Air, Inert Gases, Vacuum

Color Black

Compatible Tube Material Aluminum

Connection Type Push-to-Connect x Push-to-Connect

Country of Origin (subject to change) France

End Connection Type Push-to-Connect

Fitting Body Material Polyamide

Fitting Material Polyamide

Fitting Shape Adapter

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Tube Outer Diameter 1 1/2 in

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 1/2 in

For Tube OD 1 1/2 in x 1/2 in

For Tube Outside Diameter 1 1/2 in, 1/2 in

For Tubing O.D. 1 40 mm

For Tubing O.D. 2 17 mm

Material Polyamide

Maximum Operating Pressure 232 psi

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature 4 Degrees F

Overall Length 1 1/2 in

Package Quantity 1

Quick Connect Air Coupling Interchange Type Industrial

Quick Connect Air Coupling Max. Pressure 232 psi

Quick Connect Air Coupling Pipe Size 1-1/2

Quick Connect Air Coupling Product Grouping Quick Coupler Plug

Release Type Ring

Resistance Properties Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape Drop Bracket Adapter

Standards ASME B31.1, ASME B31.3, ATEX Directive 2014/34/EU, CE Directive 2014/68/EU, EN 13501-1, EN 13501-2, IATF 16949 Version 2016 Certified, ISO 14001, ISO 8573, ISO 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, REACH

System of Measurement Imperial

Temp. Range -4 Degrees F to 140 Degrees F

Type Drop Bracket

Vacuum Rating 0.03 inHg
