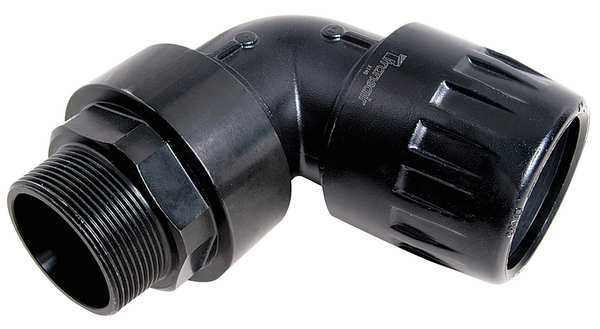

Fitting, Elbow, For 38.10mm

SKU
Brand Transair
Categories
Description Fitting, Application Air, Inert Gases, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1 1/4 in, Fitting Side A Tube Outer Diameter 1 1/2 in, Fitting Material Polyamide, Color Black, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 5 13/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Release Type Ring

Web Price

$181.24 / each

Qty

Product Details

Application Air, Inert Gases, Vacuum

Basic Material Brass

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Elbow

Color Black

Compatible Tube Material Aluminum

Compliance UL94HB, UL94V-2

Connection Type Push-to-Connect x MNPT

Country of Origin (subject to change) France

Dia./Thread Size 1-1/4

End Connection Type Push-to-Connect, Threaded

Fitting Body Material Polyamide

Fitting Material Polyamide

Fitting Pipe Size 1 1/4 in

Fitting Shape Elbow

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Tube Outer Diameter 1 1/2 in

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 1 1/4 in

Fitting Size (NPT) 1 1/4 in

For Tube OD 1 1/2 in

For Tube Outside Diameter 1 1/2 in

For Tubing O.D. 1 40 mm

For Use With Use with Compressed Air, Vacuum, Inert Gas; Use with Push-to-Connect Style, Aluminum Tubing Fittings

Green Environmental Attribute 100% Recyclable

Includes Pre-Applied Thread Sealant No

Industry Type Automotive Assembly; Food & Beverage; Packaging; Industrial Plants; Aerospace

Material Treated Brass/Polyamide

Max. Pressure 232 psi

Max. Temp. 140 Degrees F

Maximum Operating Pressure 232 psi

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature 4 Degrees F

Overall Length 5 13/32 in

Package Quantity 1

Pipe Fitting Connection Type Coupler x Male NPT

Pipe Size 1 1/4 in

Pipe Size (Fittings) 1-1/4

Release Ring Material Stainless Steel

Release Type Ring

Resistance Properties Chemical-Resistant, Corrosion-Resistant

Special Features Quick Connection Technology; Modular and Reusable; No Corrosion; Full-Bore Design; Lower Installation Costs; Optimum Flow Rate; Leak-free Guarantee; Immediate Pressurization; Lightweight; Easy to Install and Modify; Most Versatile Compressed Air Pipe System; Silicone Free; Made of Non-Flammable Materials

Specific Fitting Shape 90 Degrees Elbow Adapter

Specific Pipe Fitting Shape Elbow

Standards ASME B31.1, ASME B31.3, ATEX Directive 2014/34/EU, CE Directive 2014/68/EU, EN 13501-1, EN 13501-2, IATF 16949 Version 2016 Certified, ISO 14001, ISO 8573, ISO 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, REACH

System of Measurement Imperial

Temp. Range -4 Degrees to 140 Degrees F

Tube Outside Dia. 1-1/2

Tube Size 1-1/2

Type Elbow

Vacuum Rating 0.03 inHg
