Home / Fitting, Wall Bracket, For 12.70mm

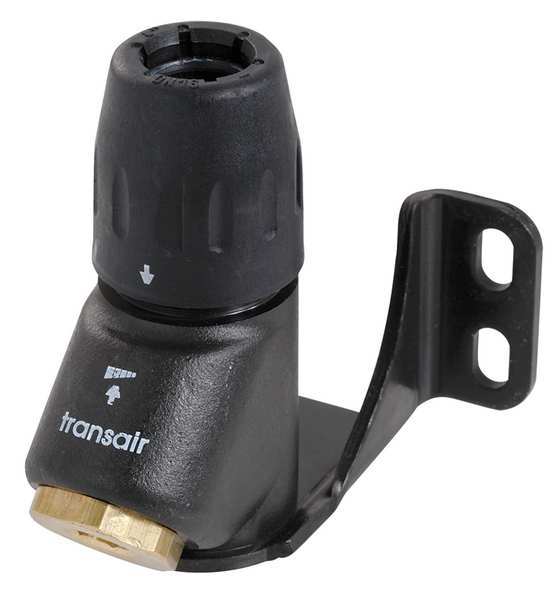

Fitting, Wall Bracket, For 12.70mm

SKU
Brand Transair
Categories
Description Fitting, Application Air, Inert Gases, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type NPT, Fitting Side B Pipe Size 1/2 in, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Material Brass, Color Black, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 10 in, Specific Fitting Shape 45 Degrees Wall Bracket, Release Type Ring

Web Price

$112.74 / each

Qty

Product Details

Application Air, Inert Gases, Vacuum

Basic Pipe Fitting Material Metal

Color Black

Compatible Tube Material Aluminum

Connection Type Push-to-Connect x NPT

Country of Origin (subject to change) France

End Connection Type Push-to-Connect, Threaded

Fitting Body Material Brass

Fitting Material Brass

Fitting Pipe Size 1/2 in

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Tube Outer Diameter 1/2 in

Fitting Side B Connection Type NPT

Fitting Side B Pipe Size 1/2 in

Fitting Size (NPT) 1/2 in

For Tube OD 1/2 in

For Tube Outside Diameter 1/2 in

For Tubing O.D. 1 16.5 mm

Includes Pre-Applied Thread Sealant No

Material Treated Brass/Polyamide

Maximum Operating Pressure 232 psi

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature 4 Degrees F

Overall Length 10 in

Package Quantity 1

Pipe Size 1/2 in

Release Ring Material Stainless Steel

Release Type Ring

Resistance Properties Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape 45 Degrees Wall Bracket

Standards ASME B31.1, ASME B31.3, ATEX Directive 2014/34/EU, CE Directive 2014/68/EU, EN 13501-1, EN 13501-2, IATF 16949 Version 2016 Certified, ISO 14001, ISO 8573, ISO 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, REACH

System of Measurement Imperial

Type Wall Bracket

Vacuum Rating 0.03 inHg
