Home / In-Line Reducer, For 63mm to 40mm Tubing

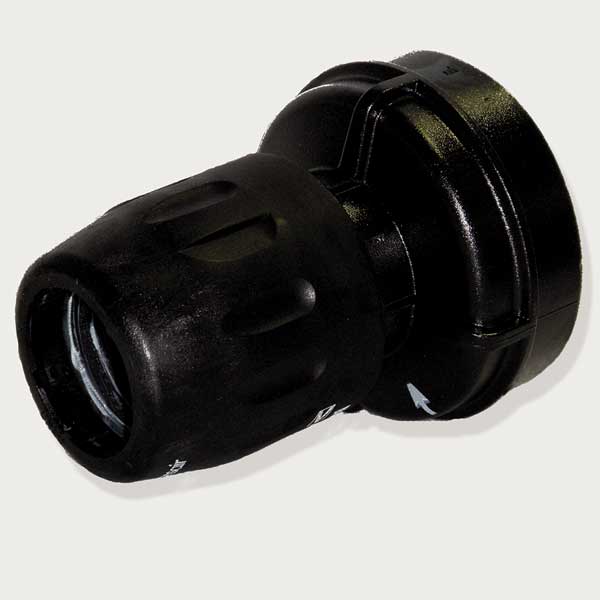

In-Line Reducer, For 63mm to 40mm Tubing

SKU
Brand Transair
Categories
Description Tubing Fitting, Application Air, Inert Gases, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side B Pipe Size 2 1/2 in, Fitting Side A Tube Outer Diameter 2 1/2 in, Fitting Side B Tube Outer Diameter 1 1/2 in, Fitting Material Polyamide, Color Black, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 4 23/32 in, Specific Fitting Shape Straight Reducing Connector, Release Type Ring
graingerSKU: , mscSKU: 65354508, zoro_no: G3061344, mongo_id: 65bbe7503aaddbd5a90890e5

Web Price

$119.49 / each

Qty

Product Details

Application Air, Inert Gases, Vacuum

Basic Pipe Fitting Material Metal

Color Black

Compatible Tube Material Aluminum

Connection Type Push-to-Connect x Push-to-Connect

Country of Origin (subject to change) France

End Connection Type Push-to-Connect

Fitting Body Material Polyamide

Fitting Material Polyamide

Fitting Pipe Size 2 1/2 in

Fitting Shape Connector

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Tube Outer Diameter 2 1/2 in

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Pipe Size 2 1/2 in

Fitting Side B Tube Outer Diameter 1 1/2 in

For Tube OD 2 1/2 in x 1 1/2 in

For Tube Outside Diameter 1 1/2 in, 2 1/2 in

For Tubing O.D. 1 63 mm

For Tubing O.D. 2 40 mm

Material Treated Aluminum

Maximum Operating Pressure 232 psi

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature 4 Degrees F

Overall Length 4 23/32 in

Package Quantity 1

Pipe Size 2 1/2 in

Release Ring Material Stainless Steel

Release Type Ring

Resistance Properties Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape Straight Reducing Connector

Standards ASME B31.1, ASME B31.3, ATEX Directive 2014/34/EU, CE Directive 2014/68/EU, EN 13501-1, EN 13501-2, IATF 16949 Version 2016 Certified, ISO 14001, ISO 8573, ISO 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, REACH

System of Measurement Imperial

Type In-Line Reducer

Vacuum Rating 0.03 inHg
