Home / Male Threaded Connector, Transair, Brass

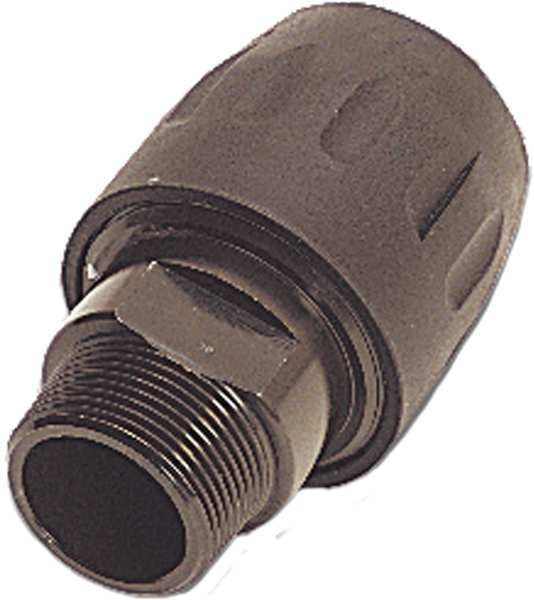

Male Threaded Connector, Transair, Brass

SKU
Brand Transair
Categories Raw Materials
Description Male Threaded Connector, Application Air, Inert Gases, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1 1/4 in, Fitting Side A Tube Outer Diameter 1 1/2 in, Fitting Material Polyamide, Color Black, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 4 1/2 in, Specific Fitting Shape Straight Adapter, Release Type Ring
graingerSKU: , mscSKU: , zoro_no: G3966825, mongo_id: 65bbe65c3aaddbd5a9024d0e

Web Price

$128.74 / each

Qty

Product Details

Application Air, Inert Gases, Vacuum

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Connector

Color Black

Compatible Tube Material Aluminum

Connection Type Push-to-Connect x MNPT

Country of Origin (subject to change) France

End Connection Type Push-to-Connect, Threaded

Fitting Body Material Polyamide

Fitting Material Polyamide

Fitting Pipe Size 1 1/4 in

Fitting Shape Adapter

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Tube Outer Diameter 1 1/2 in

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 1 1/4 in

Fitting Size (NPT) 1 1/4 in

For Tube OD 1 1/2 in

For Tube Outside Diameter 1 1/2 in

For Tubing O.D. 1 40 mm

Includes Pre-Applied Thread Sealant No

Material Brass

Maximum Operating Pressure 232 psi

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature 4 Degrees F

Overall Length 4 1/2 in

Package Quantity 1

Pipe Fitting Connection Type MNPT

Pipe Size 1 1/4 in

Pipe Size (Fittings) 1-1/4

Release Ring Material Stainless Steel

Release Type Ring

Resistance Properties Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape Straight Adapter

Specific Pipe Fitting Shape Connector

Standards ASME B31.1, ASME B31.3, ATEX Directive 2014/34/EU, CE Directive 2014/68/EU, EN 13501-1, EN 13501-2, IATF 16949 Version 2016 Certified, ISO 14001, ISO 8573, ISO 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, REACH

System of Measurement Imperial

Tube Fitting Material Brass

Type Transair

Vacuum Rating 0.03 inHg
