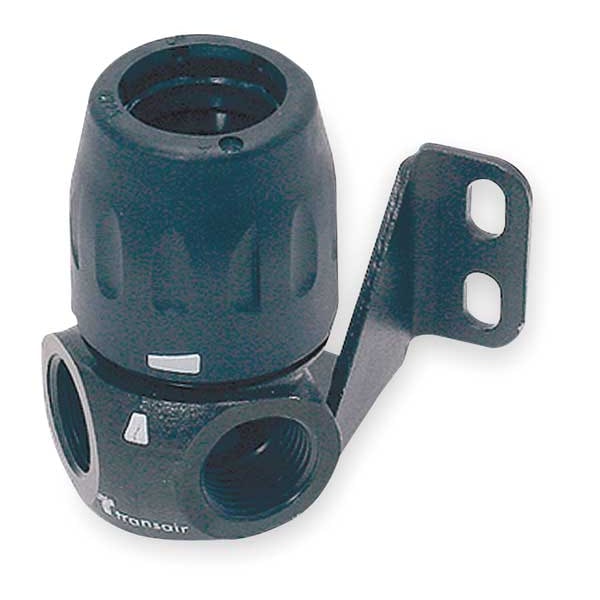

Two Port Wall Bracket, 1/2 NPT, For 25mm

SKU
Brand Transair
Categories
Description Tubing Fitting, Application Air, Industrial Gases, Inert Gases, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type NPT, Fitting Side C Connection Type NPT, Fitting Side A Pipe Size 1 in, Includes Pre-Applied Thread Sealant No, Fitting Side B Pipe Size 1/2 in, Fitting Side C Pipe Size 1/2 in, Fitting Side A Tube Outer Diameter 25 mm, Fitting Material Brass, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 185 Degrees F
graingerSKU: , mscSKU: 01664069, zoro_no: G2840004, mongo_id: 65bbe8919a749db82279c418

Web Price

$114.11 / each

Qty

Product Details

Application Air, Industrial Gases, Inert Gases

Basic Material Brass

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Connector

Color Black

Compliance UL and CE

Connection Type Push-to-Connect x NPT x NPT

Country of Origin (subject to change) France

Dia./Thread Size 1/2

End Connection Type Push-to-Connect, Threaded

Fitting Body Material Brass

Fitting Material Brass

Fitting Pipe Size 1 in, 1/2 in

Fitting Shape Wye

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Pipe Size 1 in

Fitting Side A Tube Outer Diameter 25 mm

Fitting Side B Connection Type NPT

Fitting Side B Pipe Size 1/2 in

Fitting Side C Connection Type NPT

Fitting Side C Pipe Size 1/2 in

Fitting Size (NPT) 1/2 in

For Tube OD 25 mm

For Tube Outside Diameter 25 mm

For Tubing O.D. 1 25 mm

For Use With Use with Compressed Air, Vacuum, Inert Gas

Green Environmental Attribute 100% Total Recycled Content

Includes Pre-Applied Thread Sealant No

Industry Type Automotive Assembly; Food & Beverage; Packaging; Industrial Plants; Aerospace

Material Plated Brass

Max. Pressure 232 psi

Max. Temp. 140 Degrees F

Maximum Operating Pressure 232 psi

Maximum Operating Temperature 185 Degrees F

Minimum Operating Temperature 4 Degrees F

Overall Length 2 1/4 in

Package Quantity 1

Pipe Fitting Connection Type NPT

Pipe Size 1 in x 1/2 in x 1/2 in

Pipe Size (Fittings) 1/2

Special Features Quick Connection Technology; Modular and Reusable; No Corrosion; Full-Bore Design; Lower Installation Costs; Optimum Flow Rate; Leak-free Guarantee; Immediate Pressurization; Lightweight; Easy to Install and Modify; Most Versatile Compressed Air Pipe System; Silicone Free; Made of Non-Flammable Materials

Specific Fitting Shape 2 Port Wall Bracket

Specific Pipe Fitting Shape Connector

Standards ASME B31.1-31.9, CE, EN 573.3, EN 755.2, EN 755.8, ISO 8573, ISO 9001, TUV Certified

System of Measurement Imperial/Metric

Temp. Range -4 Degrees to 140 Degrees F

Tube Outside Dia. 7/8

Tube Size 7/8

Type Two Port Wall Bracket

Vacuum Rating 0.03 inHg
