Home / Union Connector, For 25mm Tubing

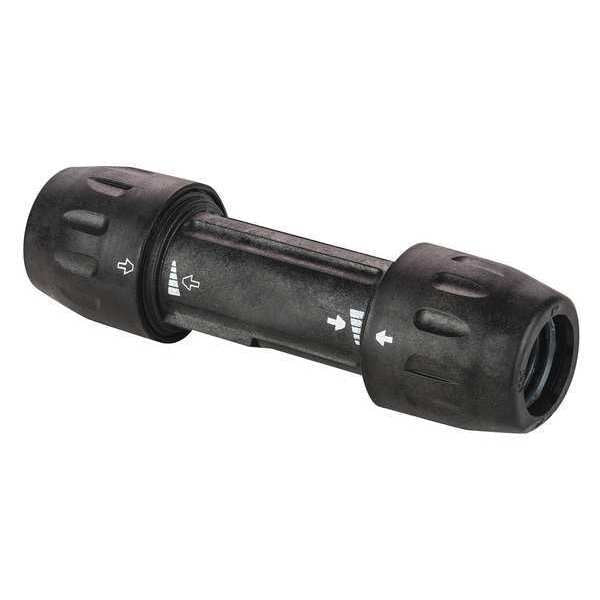

Union Connector, For 25mm Tubing

SKU
Brand Transair
Categories
Description Tubing Fitting, Application Air, Inert Gases, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1 in, Fitting Side B Tube Outer Diameter 1 in, Fitting Material Polyamide, Color Black, Maximum Operating Pressure 232 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 6 3/32 in, Specific Fitting Shape Straight Connector, Release Type Ring
graingerSKU: 4JMH4, mscSKU: 01663848, zoro_no: G0290421, mongo_id: 65bbe80e22d7a989a98d507e

Web Price

$58.06 / each

Qty

Product Details

Application Air, Inert Gases, Vacuum

Color Black

Compatible Tube Material Aluminum

Connection Type Push-to-Connect x Push-to-Connect

Country of Origin (subject to change) France

End Connection Type Push-to-Connect

Fitting Body Material Polyamide

Fitting Material Polyamide

Fitting Shape Connector

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Tube Outer Diameter 1 in

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 1 in

For Tube OD 1 in x 1 in

For Tube Outside Diameter 1 in

For Tubing O.D. 1 25 mm

Material Polyamide

Maximum Operating Pressure 232 psi

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature 4 Degrees F

Overall Length 6 3/32 in

Package Quantity 1

Release Ring Material Stainless Steel

Release Type Ring

Resistance Properties Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape Straight Connector

Standards ASME B31.1, ASME B31.3, ATEX Directive 2014/34/EU, CE Directive 2014/68/EU, EN 13501-1, EN 13501-2, IATF 16949 Version 2016 Certified, ISO 14001, ISO 8573, ISO 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, REACH

System of Measurement Imperial

Type Union Connector

Vacuum Rating 0.03 inHg
