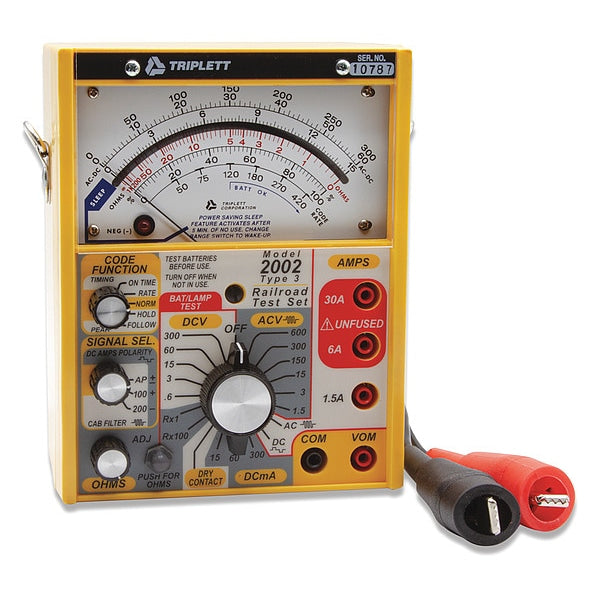

Analog Railroad Tester, 600V, 30A, Scale

SKU
Brand Triplett
Categories
Description Analog Railroad Tester, Basic AC Current Accuracy +/-1.50 Percent, Resistance Measurement Accuracy +/-2.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, AC Frequency Response 25 to 400 Hz, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Basic AC Voltage Accuracy +/-3.00 Percent, Basic DC Voltage Accuracy +/-1.50 Percent, Minimum AC Voltage Measurement 1.5 V, Maximum AC Voltage Measurement 600 V, Minimum DC Voltage Measurement 0.6 V
graingerSKU: 29FK32, mscSKU: , zoro_no: G7951535, mongo_id: 65bbe84c22d7a989a98e9716

Web Price

$2,568.74 / each

Qty

Product Details

AC Frequency Response 25 to 400 Hz

Accuracy +/-3% Scale Length

Audible Continuity No

Basic AC Current Accuracy +/-1.50%

Basic AC Voltage Accuracy +/-3.00%

Basic DC Current Accuracy +/-1.50%

Basic DC Voltage Accuracy +/-1.50%

Batteries Included Yes

Battery Size 9V; D

Battery Type 9V, D

Battery Voltage 1.5V DC; 9V DC

Calibration Certificate Not Included

Calibration Certificate Included No

Country of Origin (subject to change) Taiwan, Province of China

Includes Padded Water Repellent Carrying Case, Shoulder Strap, Test Leads

Manufacturers Warranty Length 1 yr

Max. AC Amps 30 A

Max. AC Volts 600 V

Max. DC Amps 30 A

Max. DC Volts 300 V

Max. Ohms 1000 ohm

Maximum AC Current Measurement 30 A

Maximum AC Voltage Measurement 600 V

Maximum DC Current Measurement 30 A

Maximum DC Voltage Measurement 300 V

Maximum Operating Temperature 185 Degrees F

Maximum Resistance Measurement 100 ohm

Maximum Storage Temperature 185 Degrees F

Minimum AC Current Measurement 0 A

Minimum AC Voltage Measurement 1.5 V

Minimum DC Current Measurement 1.5 A

Minimum DC Voltage Measurement 0.6 V

Minimum Operating Temperature -40 Degrees F

Minimum Resistance Measurement 0 ohm

Minimum Storage Temperature -40 Degrees F

Mirrored Scale Yes

Movement 100 Degree Deflection, Critically Damped, High Strength Magnet, Mirrored, Shock Mounted, Taut Band

Multimeter Features 100Hz and 200Hz Cab Filters

Overall Height 6.5 in

Overall Width 3.2 in

Overload Protector Yes

Package Quantity 1

Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance

Resistance Measurement Accuracy +/-2.00%

Sensitivity 1,000 ohm/V

Special Features Auto Polarity in DC Functions, Base Unit with No Cab Filters, Auto and Selectable DC Amps Polarity, Direct Measurement of Code Parameters, Ohmmeter Voltage Mode Detects Foreign AC or DC Voltages, Peak Measurements Require No Adjustment, Relay Contact on Time (Dry Contact) Requires No Adjustment
