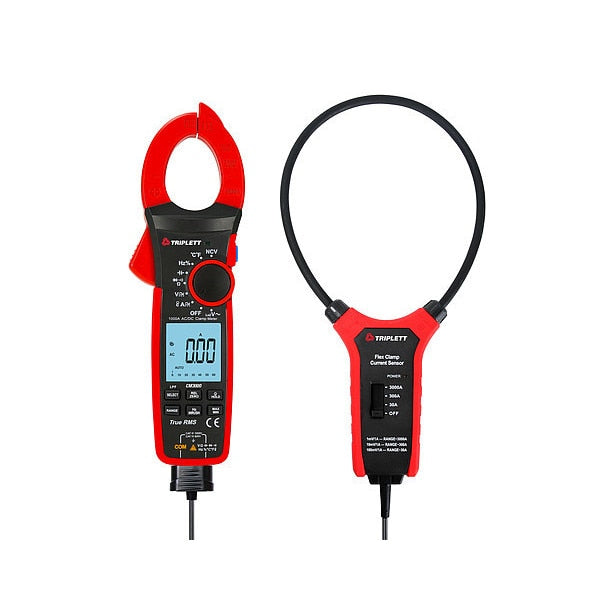

True RMS Clamp Meter, CAT IV 600V, TRMS

SKU
Brand Triplett
Categories
Description True RMS Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, DC Voltage, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging No, Thermal Imaging No, Removable Screen No
graingerSKU: , mscSKU: , zoro_no: G210565723, mongo_id: 65bbe98022d7a989a995c21c

Web Price

$537.49 / each

Qty

Product Details

AC Response Calculation TRMS

Audible Continuity Yes

Auto Power Off Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/-2.00%

Basic AC Voltage Accuracy +/-1.0% +/-8 digits

Basic DC Current Accuracy +/-2.0% +/-5 digits

Basic DC Voltage Accuracy +/-0.5% +/-5 digits

Batteries Included Yes

Battery Access Yes

Battery Size AAA

Bluetooth Compatible No

Calibration Certificate Included No

Capacitance Measurement Accuracy +/-4.0% +/-5 digits

Country of Origin (subject to change) China

Current Leakage Testing No

Data Hold Yes

Data Logging No

Digital/Analog Analog

Display Type Backlit LCD with Bargraph

Dustproof No

Frequency Measurement Accuracy +/-0.1% +/-3 digits

Includes (3) AAA Batteries, 3000A AC Flex Clamp with (3) AAA Batteries, Carrying Case, Test Leads, Type K Thermocouple Bead Probe

Inrush Current Measurable Yes

Instrument Counts 6,000

Intrinsically Safe No

IP Rating Not Rated

Jaw Opening 1.7 in

Jaw Style Clamp On

Maximum AC Current Measurement 1,000 A

Maximum AC Voltage Measurement 1,000 V

Maximum Capacitance Measurement 60 mF

Maximum DC Current Measurement 1,000 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 1 MHz

Maximum Resistance Measurement 60 megaohm

Minimum Operating Temperature -40 Degrees F

Non-Contact Voltage Detector Yes

Overall Height 10.7 in

Overall Width 1.7 in

Package Quantity 1

Parameters Measured AC Current, AC Voltage, DC Voltage

Promotion Restriction Not eligible for promotion

Removable Screen No

Resistance Measurement Accuracy +/-1.0% +/-2 digits

Safety Rating CAT IV 600V

Special Features Built-In Flashlight, Captures the Instantaneous Surge (Inrush) Current when Power Equipment is Turned On, Low Battery Indicator, Low Pass Filter (LPF) for Filtering Frequency and Harmonic Interference when Measuring Variable Frequency Drives, LoZ (Impedance) Mode for Identifying Ghost Voltages, Min/Max Records Highest and Lowest Readings, Relative Mode for Making Comparisons to a Stored Reference Value, True RMS Provides Better Accuracy when Measuring Non-Sinusoidal or Noisy Waveforms

Standards CE

Thermal Imaging No

Thermometer Type Type K Thermocouple

Waterproof No
