Home / Datacom Surge Protector, 7 Outlet, Gray

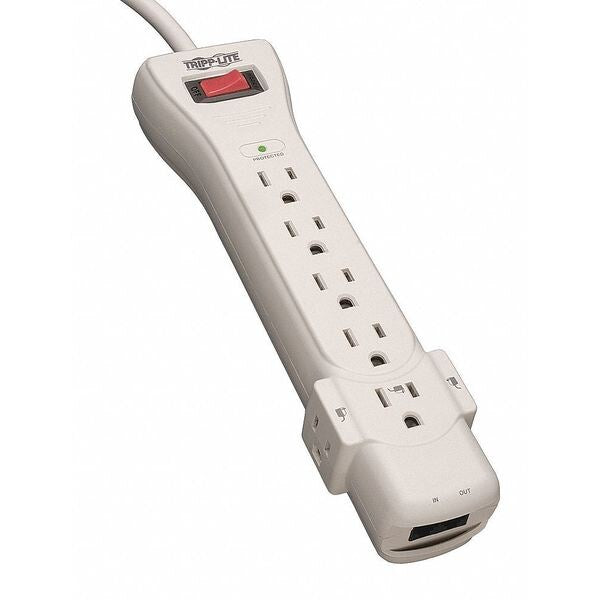

Datacom Surge Protector, 7 Outlet, Gray

SKU
Brand Tripp Lite
Categories
Description Datacom Surge Protector, Total Number of Outlets 7, Color Gray, Cord Length 6 ft, Communication Port (2) RJ11 Telephone, Rated Joules 1,080, Application Home and Office, Housing Material Plastic, Max. Amps 15 A, Power Indicator Yes, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Number of Transformer Outlets 3, USB Charging Port 0, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Conductors 3, Voltage 120V AC, Length 10 3/8 in
graingerSKU: 5JK41, mscSKU: , zoro_no: G3446746, mongo_id: 65bbe8819a749db822795f89

Web Price

$39.36 / each

Qty

Product Details

AC Suppression Joule Rating 1080

AC Suppression Response Time < 1 ns

Additional Information Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition, Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 5 transformers total, Keyhole mounting tabs enable wall mounting, 14 gauge, SJT Input cord

Application Home and Office

Certifications & Standards UL1449 (let through rating 330V), IEEE 587 Category A and B, UL1363, cUL, FCC Part 68, UL497A

Circuit Breaker No

Circuit Breaker (amps) 15

Coax Surge Protection No

Color Light Gray

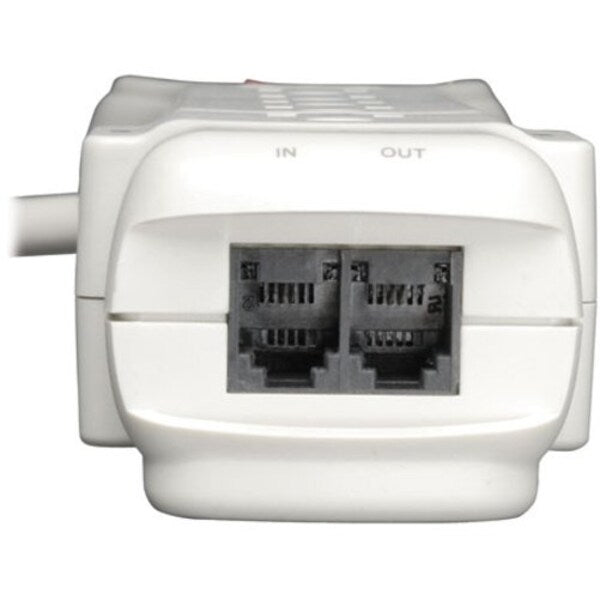

Communication Port (2) RJ11 Telephone

Compatibility Ideal for any desktop, network or home computing application requiring AC and dialup or DSL modem line protection

Cord Length 1.83m

Country of Origin (subject to change) China

Dataline Protection Phone

Depth 1-35/64

Diagnostic LED Details Built-in LED confirms suppressor protection present (green) status

Diagnostic LED(s) Yes

EMI / RFI Filtering Up to 20 dB

Features Diagnostic LED(s), Integrated Keyhole Mounting Slots

Footnotes 2

For Use With Desktop, Network Or Home Computing Application Requiring Ac and Dialup Or Dsl Modem Line Protection

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Gauge/Conductor 14 ga.

Height 1 1/2 in

Housing Color Light Gray

Housing Material Plastic

Hz_ 50/60 Hz

Includes 6 ft Telephone Cord, Instruciton Manual with Warranty Information

Input Cord Color White

Input Cord Details SJT

Input Cord Gauge (AWG) 14

Input Cord Gauge Type 14 gauge; SJT

Input Cord Length (ft.) 6

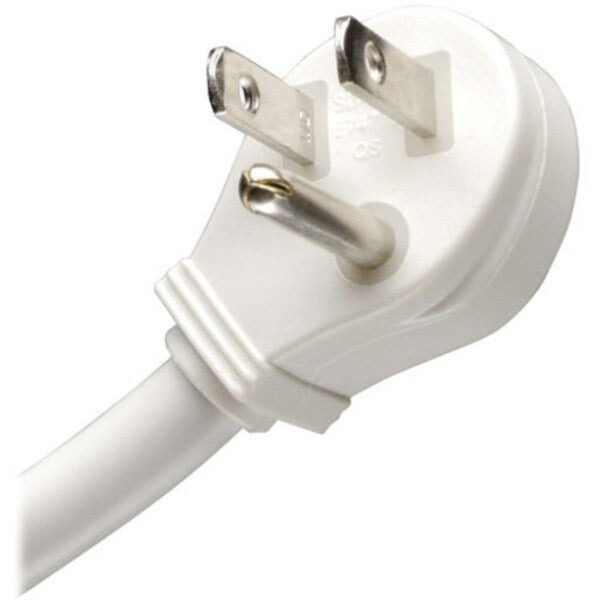

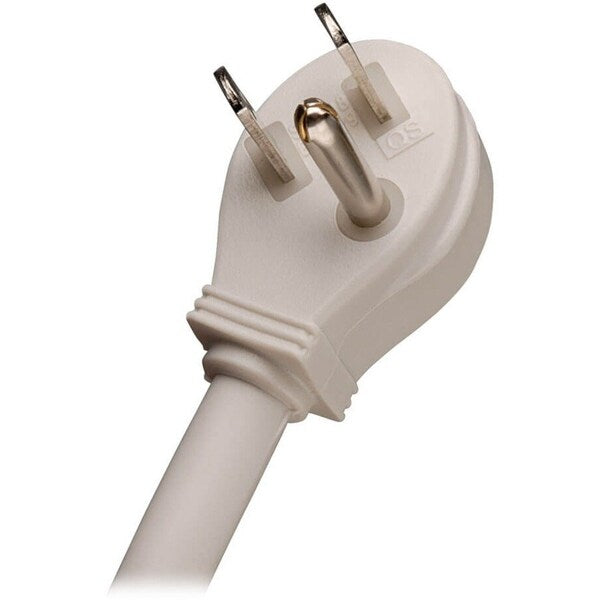

Input Plug Features Right Angle

Input Plug Type NEMA 5-15P

Input Voltage 120 V AC

Length 10 3/8 in

Length (Straight Wireway) 10 5/16 in

Material of Construction Plastic

Max. Amps 15A

Max. Surge Current 72 kA

Maximum Line Current 15 A

Maximum Surge Amps 72000

Medical Facility Use Outside Patient Care Areas (UL 1363)

Medical Grade No

Mounting Holes or Slots Yes

Mounting Style Keyhole

NEC Cord Designation SJT

NEMA Plug Configuration NEMA 5-15P

NEMA Receptacle Configuration NEMA 5-15R

Network (Ethernet) Protection No

Noise Attenuation Up to 20db

Nominal Input Voltage(s) Supported 120V AC

Number of Conductors 3

Number of Outlet Rows 1

Number of Outlets 7

Number of Transformer Outlets 3

Outlet Center Distance 29mm Standard and 48mm Transformer

Outlet Configuration Single Row of 5, 2 Side Mounted Outlets, Right-Angle Plug

Outlet Orientation Single row of 5, plus 2 side mounted outlets

Outlet Surge Protection Yes

Outlets Measurement (Center to Center) Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm

Output Receptacles (7) 5-15R

Output Voltage 120 V AC

Package Contents Protect It! SUPER6TEL 7-Outlets 120V Surge Suppressor, 6-ft. telephone cord, Instruction manual with warranty information

Package Includes SUPER6TEL Surge Suppressor;6-ft. (1.83 m) telephone cord;Instruciton manual with warranty information

Package Quantity 1

Plug Configuration NEMA 5-15P

Plug/Connector Type NEMA 5-15P

Power Cord Color Gray

Power Cord/Cable Length 6 ft

Power Handling 1800 VA

Power Indicator Yes

Product Certifications CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed

Product Color Gray

Product Compliance FCC Part 68

Product Name ProtectIT 7 Outlets 120V Surge Suppressor

Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

Protection Type Surge

Rated Joules 1,080

Receptacle Color Gray

Receptacle Configuration NEMA 5-15R

Receptacles 7 x NEMA 5-15R

Recommended Electrical Service 120V (110-125V)

Right-Angle Plug Yes

Slot or Hole Mount Measurement (Center to Center) Distance between slots = 70 mm; Distance between slot height = 24 mm

Standards Approvals RoHS, cUL / CSA (Canada), Exceeds IEEE 587 category A&B specifications, FCC Part 68 (Communications), Industry Canada (Communications), UL1363 (Power Tap), UL1449 3rd Edition (AC Suppression), UL497A (Communications)

Status Indicators Protection present

Surge Energy Rating 1080 J

Switches Two position on/off power switch

Telephone/DSL Protection Yes

Telephone/DSL Protection Details 1 line

Telephone/Fax Surge Protection Yes

Total Number of Outlets 7

Trade Designation SJT

Transformer Accommodation (4) Yes

Unit Dimensions (hwd / in.) 1.540 x 2.720 x 10.300

USB Charging Port 0

Voltage 120VAC
