Name: Datacom Surge Protector, 7 Outlet, White
Brand: Tripp Lite
SKU: G2519185
Price: 70.74 USD
Availability: InStock

Home / Datacom Surge Protector, 7 Outlet, White

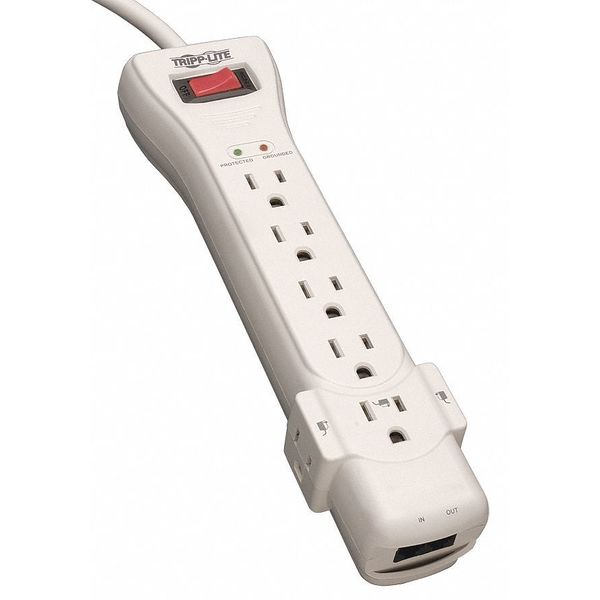

Datacom Surge Protector, 7 Outlet, White

SKU
Brand Tripp Lite
Categories
Description Datacom Surge Protector, Total Number of Outlets 7, Color White, Cord Length 15 ft, Communication Port (2) RJ11 Telephone, Rated Joules 2,520, Application Home and Office, Housing Material Plastic, Max. Amps 15 A, Power Indicator Yes, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Number of Transformer Outlets 3, USB Charging Port 0, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Conductors 3, Voltage 120V AC, Length 10 3/8 in
graingerSKU: null, mscSKU: null, zoro_no: G2519185, mongo_id: 65bbe6f53aaddbd5a9066257

Web Price

$70.74 / each

Qty

Product Details

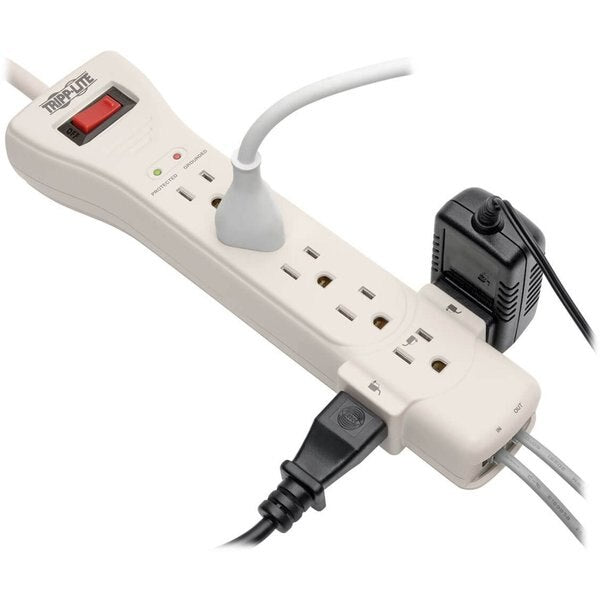

Additional Information Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition, Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 5 transformers total, Keyhole mounting tabs enable wall mounting, Space-saving right angle input plug, 14 gauge, SJT Input cord

Application Home and Office

Assembly Required No

Certifications & Standards UL Listed Certification

Circuit Breaker No

Coax Surge Protection No

Color Light Gray

Communication Port (2) RJ11 Telephone

Compatibility Ideal for any desktop, network or home computing application requiring AC and dialup or DSL modem line protection

Cord Length 4.57m

Country of Origin (subject to change) China

Dataline Protection Phone

Depth 1-35/64

Features Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots

Footnotes 1,2,6

For Use With Desktop, Network Or Home Computing Application Requiring Ac and Dialup Or Dsl Modem Line Protection

Frequency 50/60 Hz

Gauge/Conductor 14 ga.

Height 1 1/2 in

Housing Material Plastic

Hz_ 50/60 Hz

Includes 6 ft Telephone Cord, Instruciton Manual with Warranty Information

Input Voltage 120 V AC

Length 10 3/8 in

Length (Straight Wireway) 10 5/16 in

Max. Amps 15A

Max. Surge Current 156 kA

Maximum Line Current 15 A

Medical Facility Use Outside Patient Care Areas (UL 1363)

Medical Grade No

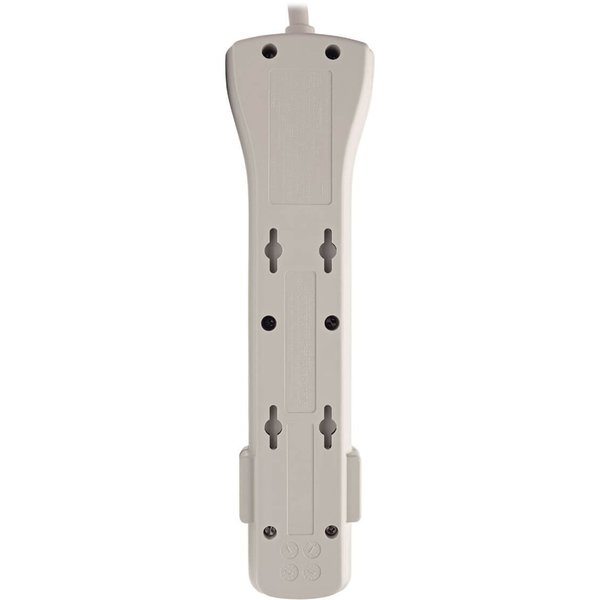

Mounting Style Keyhole

NEC Cord Designation SJT

NEMA Plug Configuration NEMA 5-15P

NEMA Receptacle Configuration NEMA 5-15R

Noise Attenuation Up to 20db

Number of Conductors 3

Number of Outlet Rows 1

Number of Outlets 7

Number of Transformer Outlets 3

Outlet Center Distance 29mm Standard and 48mm Transformer

Outlet Configuration Single Row of 5, 2 Side Mounted Outlets, Right-Angle Plug

Outlet Surge Protection Yes

Output Voltage 120 V AC

Package Contents Protect It! 7-Outlets Surge Suppressor, 6-ft. telephone cord, Instruciton manual with warranty information

Package Quantity 1

Plug Configuration NEMA 5-15P

Plug Style Right Angle

Plug/Connector Type NEMA 5-15P

Power Cord/Cable Length 15 ft

Power Handling 1800 VA

Power Indicator Yes

Product Color Gray

Product Line Protect It!

Product Name Protect It! 7-Outlets Surge Suppressor

Protection Type Surge

Rated Joules 2,520

Receptacle Configuration NEMA 5-15R

Receptacles 7 x NEMA 5-15R

Standards Approvals RoHS, cUL / CSA (Canada), Exceeds IEEE 587 category A&B specifications, FCC Part 68 (Communications), Industry Canada (Communications), UL1363 (Power Tap), UL1449 3rd Edition (AC Suppression), UL497A (Communications)

Status Indicators Protection present

Surge Energy Rating 2520 J

Telephone/Fax Surge Protection Yes

Total Number of Outlets 7

Trade Designation SJT

USB Charging Port 0

Voltage 120VAC

Watts 1800W

Width 2 3/4 in

Wire Size 14 AWG
