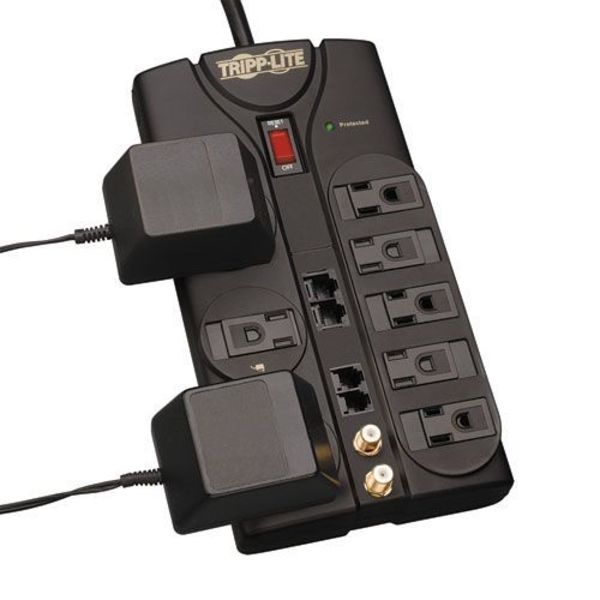

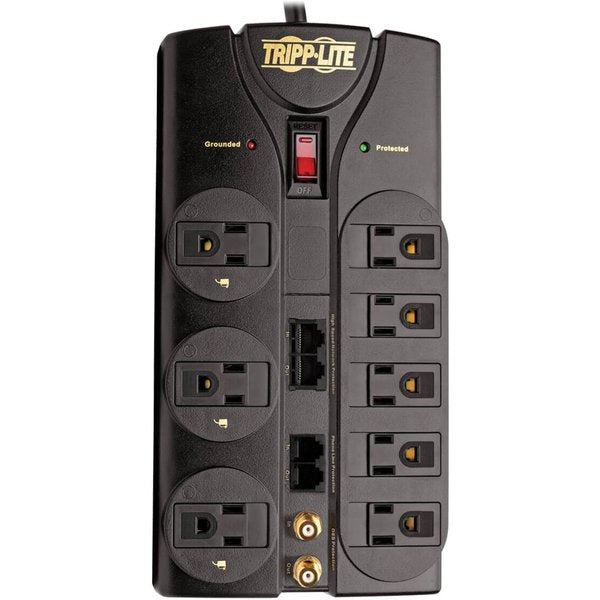

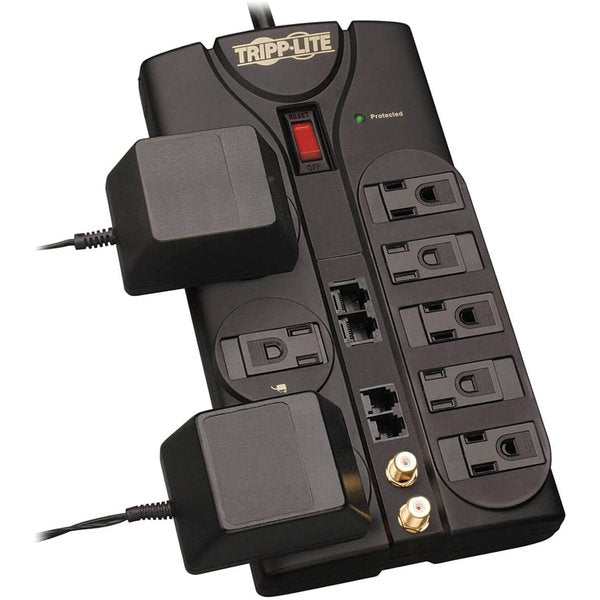

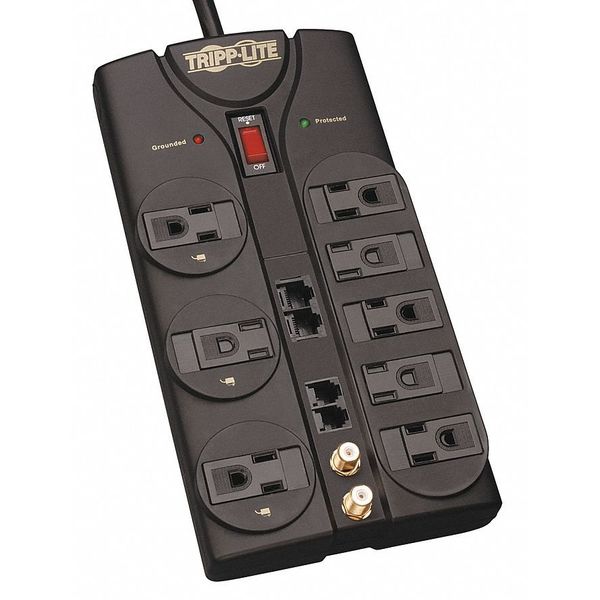

Datacom Surge Protector, 8 Outlet, Black

SKU
Brand Tripp Lite
Categories
Description Datacom Surge Protector, Total Number of Outlets 8, Color Black, Cord Length 10 ft, Communication Port (2) Coaxial, (2) RJ11 Telephone, (2) RJ45 Network, Rated Joules 3,240, Application Home and Office, Housing Material Plastic, Max. Amps 15 A, Power Indicator Yes, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Number of Transformer Outlets 3, USB Charging Port 0, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Conductors 3
graingerSKU: 3RY86, mscSKU: 01493121, zoro_no: G2382712, mongo_id: 65bbe7fe22d7a989a98cec24

Web Price

$84.99 / each

Qty

Product Details

AC Suppression Joule Rating 3240

AC Suppression Response Time < 1 ns

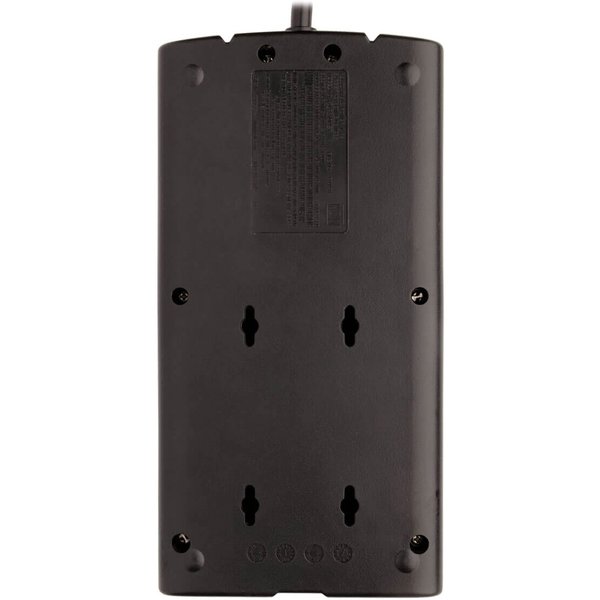

Additional Information Audible alarm sounds to indicate damage to suppression components, Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 6 transformers total, Keyhole mounting tabs enable wall mounting, Space-saving right angle input plug

Application Home and Office

Assembly Required No

Audible Alarm Audible alarm sounds to indicate damage to suppression components

Automatic Shut-Off Yes

Cable (Coax) Protection Yes

Cable (Coax) Protection Details 1 line (2.2 GHz Bandwidth)

Certifications & Standards UL1449 (let through rating 330V), IEEE 587 Category A and B, FCC Part 68, UL497A, UL1363, cUL

Circuit Breaker No

Circuit Breaker (amps) 15

Coax Surge Protection Yes

Color Black

Communication Port (2) Coaxial, (2) RJ11 Telephone, (2) RJ45 Network

Compatibility Computer, Modem, CAD/CAM/CAE Workstations, Network Nodes, File Servers, Point-of-Sale Terminals, a, Audio/Visual Devices

Cord Length 3.05m

Country of Origin (subject to change) China

Dataline Protection Fax/Modem/Phone, Network, Cable TV/Satellite

Depth 1-33/64

Diagnostic LED Details Built-in LEDs confirm suppressor protection present (green) and grounded (red) status

Diagnostic LED(s) Yes

EMI / RFI Filtering Up to 40 dB

Features Audible Alarm, Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots

Footnotes 1,2,3,4,6

For Use With and More, Audio/Visual Devices, Cad/Cam/Cae Workstations, Fileservers, Modems, Network Nodes, Personal Computers, Point-Of-Sale Terminals

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Gauge/Conductor 14 ga.

Height 1 1/2 in

Housing Color Gray

Housing Material Plastic

Hz_ 50/60 Hz

Includes 6 ft Coax Cable, 6 ft Network Cable, 6 ft Telephone Cord, Instruction Manual with Warranty Information

Input Cord Color White

Input Cord Details SJT

Input Cord Gauge (AWG) 14

Input Cord Gauge Type 14 gauge; SJT

Input Cord Length (ft.) 10

Input Plug Features Right Angle (36D)

Input Plug Type NEMA 5-15P

Input Voltage 120 V AC

Length 9 1/2 in

Length (Straight Wireway) 9 35/64 in

Material of Construction Plastic

Max. Amps 15A

Max. Surge Current 216 kA

Maximum Line Current 15 A

Maximum Surge Amps 216000

Medical Facility Use Outside Patient Care Areas (UL 1363)

Medical Grade No

Mounting Holes or Slots Yes

Mounting Style Keyhole

NEC Cord Designation SJT

NEMA Plug Configuration NEMA 5-15P

NEMA Receptacle Configuration NEMA 5-15R

Network (Ethernet) Protection Yes

Network Compatibility 100 Mbps (Fast Ethernet)

Noise Attenuation Up to 40dB

Nominal Input Voltage(s) Supported 120V AC

Number of Conductors 3

Number of Outlet Rows 2

Number of Outlets 8

Number of Transformer Outlets 3

Outlet Center Distance 28.5mm Standard and 57mm Transformer

Outlet Configuration Single Row of 5, Second Row of 3 For Transformer Accommodation, Right-Angle Plug

Outlet Orientation Single row of 5, plus a second row of 3 for transformer accommodation

Outlet Safety Covers Detail Includes built-in sliding outlet safety covers

Outlet Surge Protection Yes

Outlets Measurement (Center to Center) Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm

Output Receptacles (8) 5-15R

Output Voltage 120 V AC

Package Contents 8-Outlet TV/Modem Surge Protector, 6-ft. Telephone Cord, 6-ft. Network Cable, 6-ft. Coax Cable, Instruction Manual with Warranty Information

Package Includes TLP810NET;6 ft. telephone cord;6 ft. network cable;6 ft. coax cable;Instruction manual with warranty information

Package Quantity 1

Plug Configuration NEMA 5-15P

Plug Style Right-Angle Plug

Plug/Connector Type NEMA 5-15P

Power Cord Color Gray

Power Cord/Cable Length 10 ft

Power Handling 1800 VA

Power Indicator Yes

Product Certifications CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed

Product Color Black

Product Compliance FCC Part 68

Product Line Protect It!

Product Name 8-Outlet TV/Modem Surge Protector

Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

Protection Type Surge

Rated Joules 3,240

Receptacle Color Gray

Receptacle Configuration NEMA 5-15R

Receptacles 8 x NEMA 5-15R

Recommended Electrical Service 120V (110-125V)

Right-Angle Plug Yes

Slot or Hole Mount Measurement (Center to Center) Distance between horizontal tabs = 75 mm; Distance between vertical tabs = 41.6 mm

Standards Approvals RoHS, cUL / CSA (Canada), FCC Part 68 (Communications), Industry Canada (Communications), UL1363 (Power Tap), UL1449 3rd Edition (AC Suppression), UL497A (Communications)

Status Indicators Protection Present, Grounded

Surge Energy Rating 3240 J

Switches Combination AC circuit breaker and 2-position red illuminated on/off power switch

Telephone/DSL Protection Yes

Telephone/DSL Protection Details 2 line

Telephone/Fax Surge Protection Yes

Total Number of Outlets 8

Trade Designation SJT

Transformer Accommodation (6) Yes

Unit Dimensions (hwd / in.) 4.860 x 9.550 x 1.510

USB Charging Port 0

Voltage 120VAC
