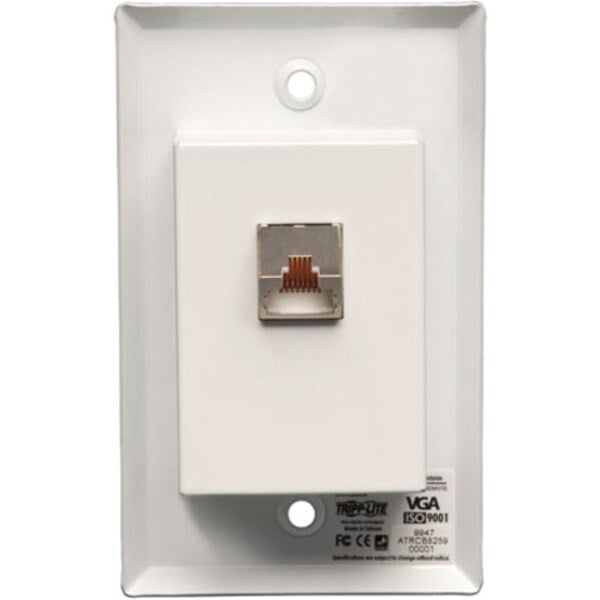

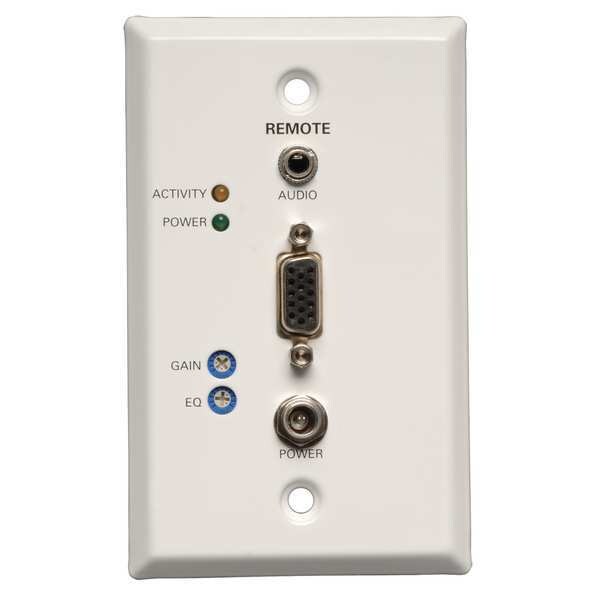

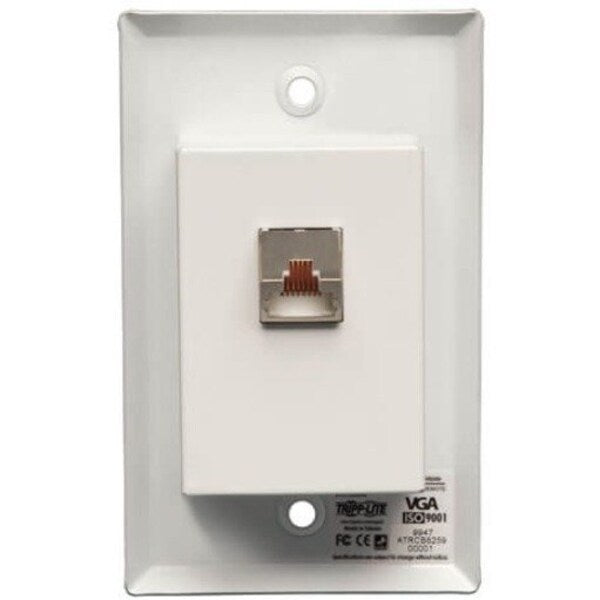

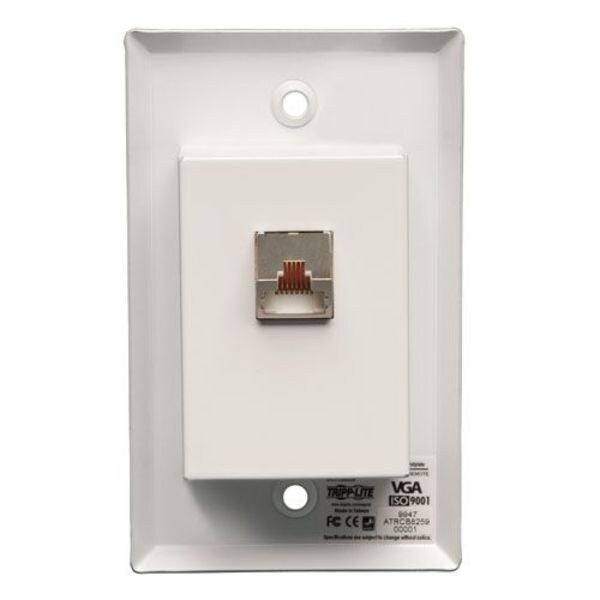

Display Extender Recvr, VGA, 3.5mm, Cat5e/6

SKU
Brand Tripp Lite
Categories
Description Display Extender Receiver, Product Type Wall Plate, Wallplate Type Audio/Video, Color White, NEMA Enclosure Rating 1, Number of Ports 2, Compatible Cable Performance Category 6, Material Plastic, Includes 5 ft External Power Supply with NEMA 1-15P Plug, Mini-Screwdriver, Includes Mounting Hardware Yes, Manufacturer Warranty Length 1 yr, Overall Depth 1 1/2 in, Overall Height 4 1/2 in, Overall Width 2 3/4 in, Standards cUL Listed, FCC, PSE, REACH, RoHS Compliant, TAA, TUV, UL Listed
graingerSKU: 13J038, mscSKU: , zoro_no: G3731305, mongo_id: 65bbe6863aaddbd5a903736c

Web Price

$86.49 / each

Qty

Product Details

AC Adapter Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.

AC Plug Type NEMA 1-15P

AC Power Adapter Cord Length (ft.) 4.5

AC Power Adapter Output Specs (V / A) 5V / 2A

Built-In Equalizer Yes

Cable Type 3.5mm Stereo, Cat5e/6, VGA

Certifications & Standards TAA/GSA

Color White

Compatible Cable Performance Category 6

Connectivity Technology Wired

Connector Type - Patch Cord RJ45 (Female); HD15 (Female); 3.5MM (Female)

Country of Origin (subject to change) Taiwan, Province of China

EDID Compatible Yes

External Power Supply Certifications FCC; PSE; TUV; UL; cUL

Form Factor Wall Mountable

Housing Plastic

Includes 5 ft External Power Supply with NEMA 1-15P Plug, Mini-Screwdriver

Includes Mounting Hardware Yes

Jacket Color White

Length 4.5 in

Length (Straight Wireway) 4.5 in

Manufacturer Warranty Length 1 yr

Material Plastic

Max 1024 x 768 Range (ft) 1000

Max 1080i Range (ft) 500

Max 1280 x 720 (720p) Range (ft) 500

Max 1440 x 900 Range (ft) 500

Max 1600 x 1200 Range (ft) 500

Max 1920 x 1080 (1080p) Range (ft) 500

Max 1920 x 1200 Range (ft) 500

Max 1920 x 1440 Range (ft) 500

Max 480i Range (ft) 1000

Max 480P Range (ft) 1000

Max 640 x 480 Range (ft) 1000

Max 720P Range (ft) 500

Max 800 x 600 Range (ft) 1000

Maximum Operating Distance 1000 ft

Maximum Signal Range (ft) 1000

Maximum Video Resolution 1920 x 1440

Media Type Supported Twisted Pair

NEMA Enclosure Rating 1

Network (RJ-45) Yes

Number of Input Devices Supported 1

Number of Network (RJ-45) Ports 1

Number of Output Devices Supported 1

Number of Ports 2

Number of VGA Outputs 1

Operating Temperature Range 32ÃÂ° to 122ÃÂ°F (0ÃÂ° to 50ÃÂ°C)

Overall Depth 1 1/2 in

Overall Height 4 1/2 in

Overall Width 2 3/4 in

Package Contents B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console, Mini-Screwdriver, Wallplate Screws, External Power Supply, Owner's Manual

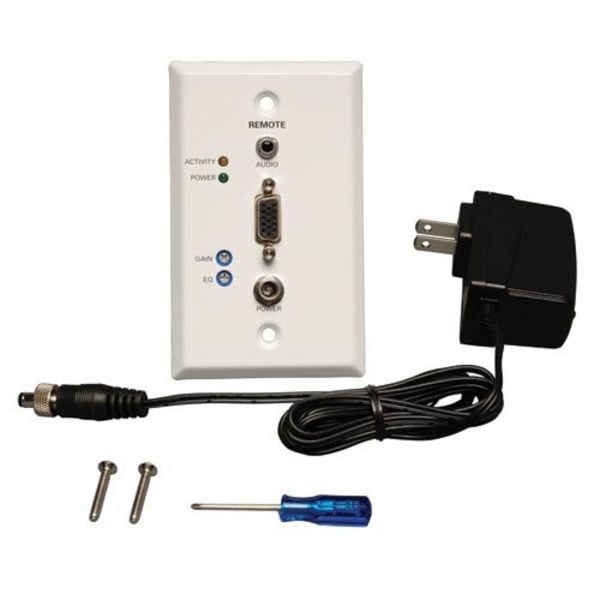

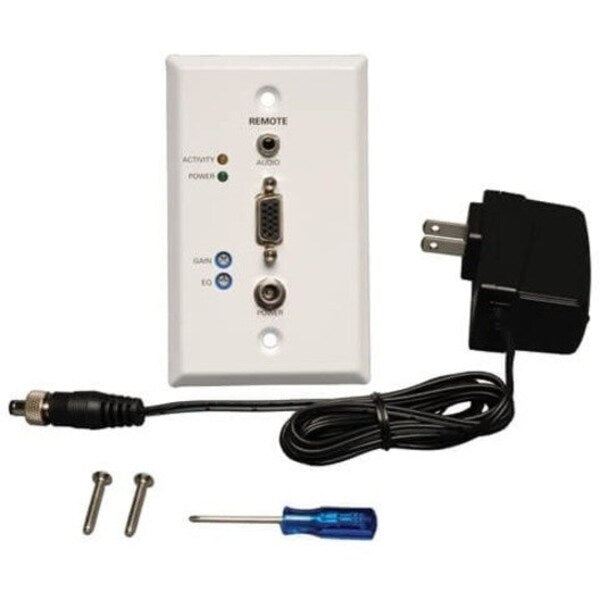

Package Includes Extender remote (Receiver) wallplate;Mini-Screwdriver for EQ/Gain adjustment;Wallplate screws;External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.);Owner's Manual

Package Quantity 1

Power Source Unit (Included)

Product Color White

Product Name B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console

Product Type Wall Plate

Receiver Depth 1

Receiver Height 4.50

Receiver Width 2.75

RS-232 Serial Extension Support No

Standards cUL Listed, FCC, PSE, REACH, RoHS Compliant, TAA, TUV, UL Listed

Storage Temperature Range -4ÃÂ° to 158ÃÂ°F (-20ÃÂ° to 70ÃÂ°C)

TAA Compliant Yes
