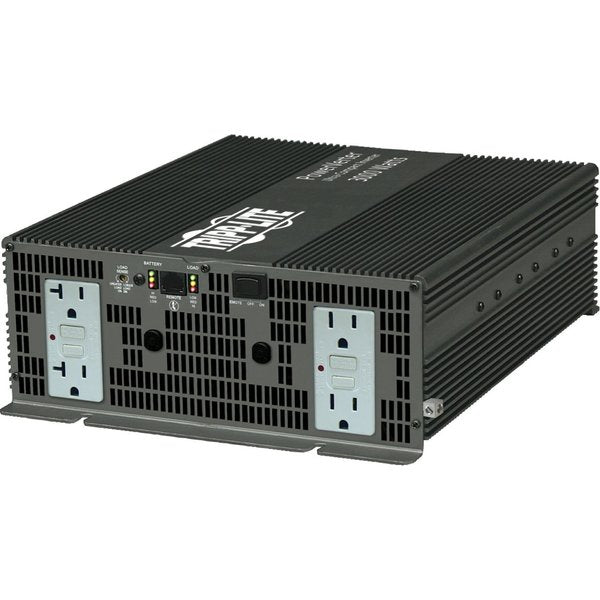

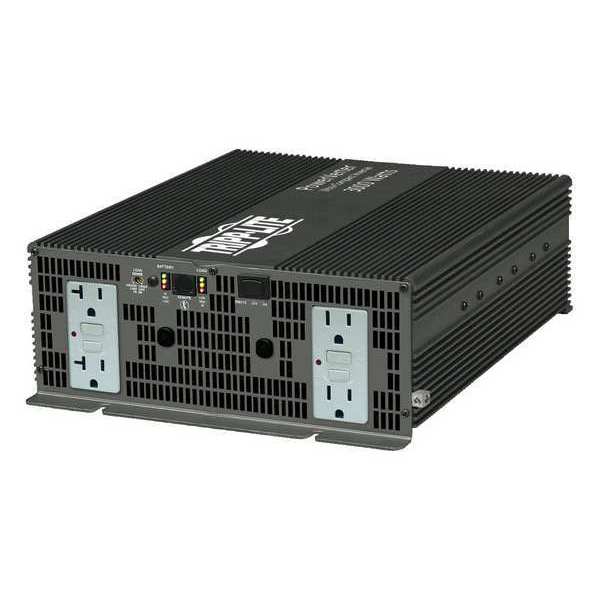

Inverter, Aluminum and Sheet Metal Case, Sine Wave Form, 3000W Nominal Output, 120V Output Voltage

SKU
Brand Tripp Lite
Categories
Description Inverter, Features Battery Charge Level LED, Connected Load Level LEDs, Daisy-Chain Capability, Dual Connections, Grooved Cooling Surface, Low Voltage Alarm/Shutdown, Operating Mode Switch Controls Inverter Operation, Remote Control LED/Switch Module, Output Form Modified Sine Wave, DC Connection Input Terminals, Continuous Output Power 3,000 W, Peak Output Power 6,000 W, Number of Outlets 4, Input Voltage 12V DC, Output Voltage 120V AC, Output Frequency 60 Hz, Overall Depth 14 3/4 in
graingerSKU: 4HHH7, mscSKU: , zoro_no: G3291251, mongo_id: 65bbea3b22d7a989a99a1db7

Web Price

$1,401.24 / each

Qty

Product Details

Application Coffee Makers, DVD Players, Game Systems, Microwaves, Office Equipment, Power Tools, TVs

Audible Alarm Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.

Case Material Aluminum and Sheet Metal

Continuous Output Capacity (Watts) 3000

Continuous Output Power 3,000 W

Continuous Power Load 3000 W

Cooling Method Fan

Country of Origin (subject to change) China

DC Connection Input Terminals

DC System Voltage (VDC) 12

Depth 14.80

Features Battery Charge Level LED, Connected Load Level LEDs, Daisy-Chain Capability, Dual Connections, Grooved Cooling Surface, Low Voltage Alarm/Shutdown, Operating Mode Switch Controls Inverter Operation, Remote Control LED/Switch Module

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 60 Hz

Fused Yes

Grounding Grounding lug grounds the inverter to vehicle or earth ground - user supplies cabling

Height 4.30

Includes 25 ft Remote Cable, Remote Control LED/Switch Module (APSRM4)

Input Connection Input Terminals

Input Cord Length Details User supplies cabling. Minimum gauges for full load operation: 0 (10 ft max), 00 or 2/0 (13 ft max), Twin 00 using 4 conductors (26 ft)

Input Current 286 A at 12V DC, 2.6 A at 12V DC, Less Than 500 mA

Input Voltage 12V DC

Inverter DxWxH 14 3/4 in x 12 1/2 in x 4 1/4 in

Inverter Input Voltage 12V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 115V AC

Inveter Output Voltage 120V

Material of Construction Aluminum, Steel

Max. Input Current Full continuous load - 286 A at 12V DC; No load - 2.6 A at 12V DC; Shutdown / load sense mode - less than 500 mA

Maximum Frequency 60 Hz

Maximum Input Amps 286

Maximum Operating Temperature 104 Degrees F

Minimum Operating Temperature 32 Degrees F

NEMA Rating NEMA 5-15R

Nominal Output Power 3000W

Nominal Output Voltage(s) Supported 120V

Number of Outlets 4

Operating Temperature 32 to 104 F (0 to 40 C)

Outlet Type GFCI

Output Connection (4) NEMA 5-15R

Output Form Modified Sine Wave

Output Frequency 60 Hz

Output Frequency Regulation 60 Hz (+/- 3 Hz)

Output Receptacles (4) 5-15R

Output Voltage 120V AC

Output Voltage Regulation Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC)

Overall Depth 14 3/4 in

Overall Height 4 1/4 in

Overall Width 12 1/2 in

Overload Protection Automatic overload protection shuts down inverter system in the event of overloads. Output is protected by 2 built-in 20A circuit breakers (each controlling power to 2 outlets). Inverter and electrical system are further protected via set of 6 40A automotive input fuses.

Package Contents PowerVerter PV3000GFCI DC-to-AC Power Inverter, Remote Control LED/Switch Module, 25-ft. Remote Cable, Instruction Manual

Package Includes PV3000GFCI Inverter;Remote control LED/switch module (APSRM4);25-ft. (7.62 m) remote cable;Warranty information;Instruction manual

Package Quantity 1

Peak Output Capacity (Watts) 6000

Peak Output Power 6000W

Peak Power Load 6000 W

Product Color Gray

Product Line PowerVerter

Product Name PowerVerter PV3000GFCI DC-to-AC Power Inverter

Product Type Power Inverter

Pure Sine Wave Output No

Real Power Rating 6,000 W

Receptacles 4 x NEMA 5-15R

Recommended Electrical Service Requires 12VDC input source capable of delivering 286A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 500A battery system fusing is recommended.

Relative Humidity 0%-95% Non-Condensing

Standards OSHA 1926.404 (b) (ii)

Switches 3 position rocker switch enables on/off power control, plus remote setting which enables inverter to be remotely powered on or off when used in conjunction with included APSRM4 module.

Temp. Range 32ÃÂ°F to 104ÃÂ°F

Type of Indicator LED

Voltage Compatibility (VDC) 12

Waveform Type Pulse-width Modulated Sine Wave

Width 12-1/2
