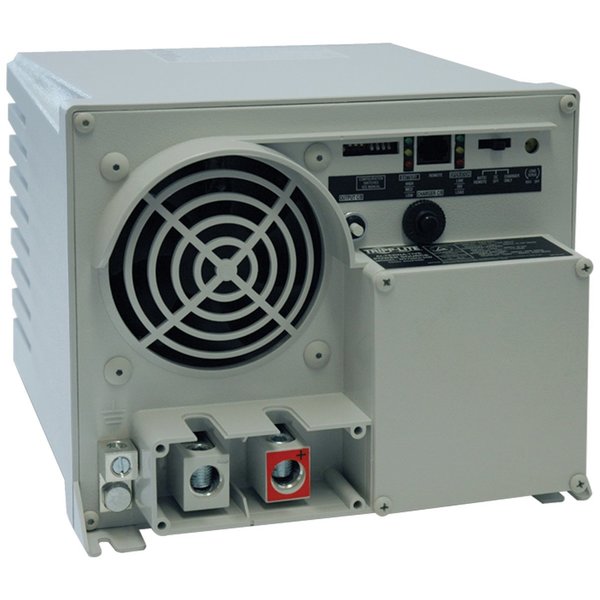

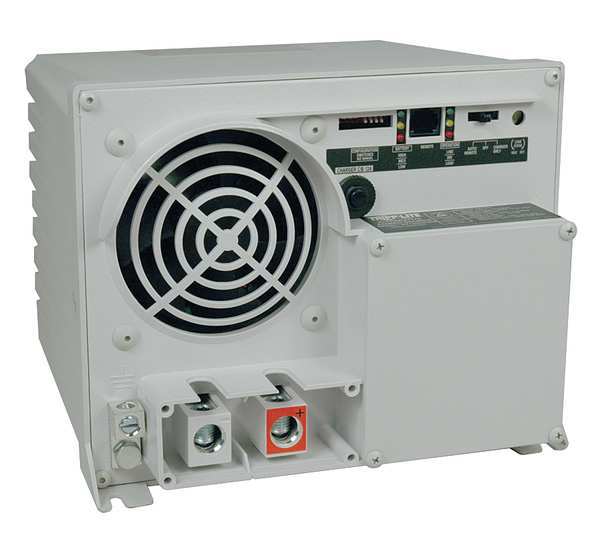

Inverter and Battery Charger, Polycarbonate Case, Sine Wave Form, 1250W Nominal Output

SKU
Brand Tripp Lite
Categories
Description Inverter and Battery Charger, Inverter Output Form Modified Sine Wave, DC Connection 2 Bolt-Down Terminals, Peak Output Power 1,500 W, Inverter Input Voltage 120V AC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Case Material Polycarbonate, Cooling Method Fan, Application Automotive
graingerSKU: 19N907, mscSKU: , zoro_no: G4403436, mongo_id: 65bbe7759a749db82273bb6c

Web Price

$1,026.24 / each

Qty

Product Details

AC Suppression Joule Rating 600

Application Automotive

Automatic/Manual Automatic

Battery Charge 14A / 55A (selectable)

Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)

Case Material Polycarbonate

Certifications & Standards UL458, CSA

Charger Depth 9 in

Charger DxWxH 9 in x 8.8 in x 7 in

Charger Height 7 in

Charger Input Current 9.3 A

Charger Input Voltage 120V AC

Charger Output Amps 55 A

Charger Output Current 55 A

Charger Output Voltage 120V

Charger Width 8.8 in

Continuous Output Capacity (Watts) 1250

Continuous Power Load 1250 W

Cooling Method Fan

Country of Origin (subject to change) China

DC Connection Cabling

DC System Voltage (VDC) 12

Depth 8-3/4

Expandable Runtime Yes

Features Automatic Overload and Thermal Shutoff Safely Turns Off Inverter as Excessive Loads or Overheating Conditions Develop, Front Panel Remote Control Connector Enables Remote Off/on Switching (Requires Apsrm4 Switch Accessory), Grounding Lug Properly Connects the Inverter/Charger System to Earth Ground or Vehicle Grounding System

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 60 Hz

Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Height 9

High Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)

Input Connection Type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: hardwire

Input Cord Length Details DC INPUT: User supplies cabling. 4 gauge or larger (see manual). AC INPUT: hardwire

Input Voltage 12VDC

Inverter Depth 9 in

Inverter Height 7 in

Inverter Input Voltage 120V AC; 12V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 120V AC

Inverter Width 8.7 in

Inveter Output Voltage 120V

Load Sensing Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level.

Low Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)

LVC (Low Voltage Cut-Off) 10VDC +/-3%

Material of Construction Polycarbonate

Max. Input Current Full continuous load - 95 A at 12V DC; 20 A at 120V AC with full inverter and charger load

Maximum Frequency 60 Hz

Maximum Input Amps / Watts DC INPUT: Full continuous load - 95A at 12V DC. AC INPUT: 20 amps at 120V AC with full inverter and charger load (12A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output lo

Nominal Input Voltage(s) Supported 120V AC

Nominal Output Power 1250W

Nominal Output Voltage(s) Supported 120V

Outlet Type Hardwire

Output Frequency 60 Hz

Output Frequency Regulation 60 Hz (+/- 0.3 Hz)

Output Receptacles Hardwire

Output Voltage 115VAC

Output Voltage Regulation LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).

Overload Protection Includes 12A input breaker dedicated to the charging system and 20A output breaker for AC output loads

Package Contents PowerVerter RV1250ULHW 1250W Inverter, Instruction Manual

Package Includes RV1250ULHW Inverter/Charger;Instruction manual with warranty information

Package Quantity 1

Peak Output Capacity (Watts) 2500

Peak Output Power 2500W

Peak Power Load 2500 W

Plug/Connector Type Hardwired

Product Certifications CSA (Canada); UL 458

Product Color Gray

Product Line PowerVerter

Product Name PowerVerter RV1250ULHW 1250W Inverter

Product Type Power Inverter

Pure Sine Wave Output No

Receptacles Hardwired

Recommended Electrical Service DC INPUT: Requires 12V DC input source capable of delivering 95A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). For automotive applications, professional hardwire

Relative Humidity 0%-95% Non-Condensing

Standards CSA, UL458

Switches 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode.

Transfer Time (Line Power to Battery Mode) 16.6 milliseconds (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications)

Unit Dimensions (hwd / in.) 7.000 x 8.750 x 9.000

Voltage Compatibility (VAC) 120

Voltage Compatibility (VDC) 12

Waveform Type Pulse-width Modulated Sine Wave

Width 7
