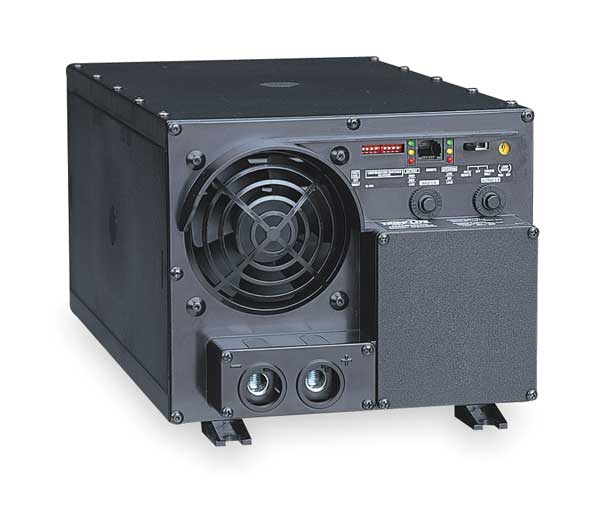

Inverter and Battery Charger, Polycarbonate Case, Sine Wave Form, 2400W Nominal Output
Web Price
$1,787.49
/ each
Product Details
600
Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
Automatic
14A / 55A (selectable)
98-121 sealed lead acid battery (optional)
Polycarbonate
16.3 in
16.3 in x 8.5 in x 7.3 in
7.3 in
24 A
120V AC
55 A
55 A
120V
8.5 in
2400
2400 W
Fan
China
Bolt Down Terminals
24
16-1/4
Yes
Automatic Transfer Switching, Automatic Voltage Regulation, Meets Normal and Peak Power Demands, Reliable Power for Mobile, Emergency and Remote Sites, Remote Control Capability, Rugged Polycarbonate Housing
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
60 Hz
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
7-1/4
In AC auto mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)

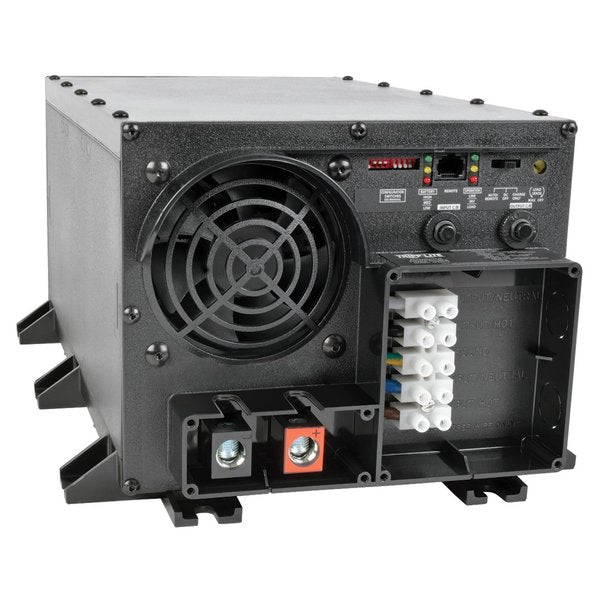

DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate
24VDC
16.3 in
7.3 in
120V AC; 24V DC
Sine Wave
120V AC
8.5 in
120V
Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
In AC auto mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
Polycarbonate
Full continuous load - 112 A at 24V DC; AC INPUT: 44 A at 120V AC with full inverter and charger load
60 Hz
DC INPUT: Full continuous load - 112A at 24VDC. AC INPUT: 44 amps at 120VAC with full inverter and charger load (24A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output load
120V AC
2400W
120V
Hardwire
60 Hz
60 Hz (+/- 0.3 Hz)
Hardwire
115VAC
LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
Includes 30A input breaker dedicated to the charging system and 20A output breaker for AC output loads
PowerVerter APS APS2424 DC-to-AC Inverter, Instruction Manual with Warranty Information
APS2424 2400W PowerVerter APS 24V DC 120V AC Inverter/Charger;Owner's manual
1
4800
4800W
4800 W
Hardwired
Black
PowerVerter
PowerVerter APS APS2424 DC-to-AC Inverter
APS
Power Inverter
No
Hardwired
DC INPUT: Requires 24VDC input source capable of delivering 112A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation).
0%-95% Non-Condensing
3 position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
7.250 x 8.500 x 16.250
120
24
Pulse-width Modulated Sine Wave
8-1/2
