Home / Inverter and Battery Charger, Polycarbonate Case, Sine Wave Form, 750W Nominal Output, 2 Outlets

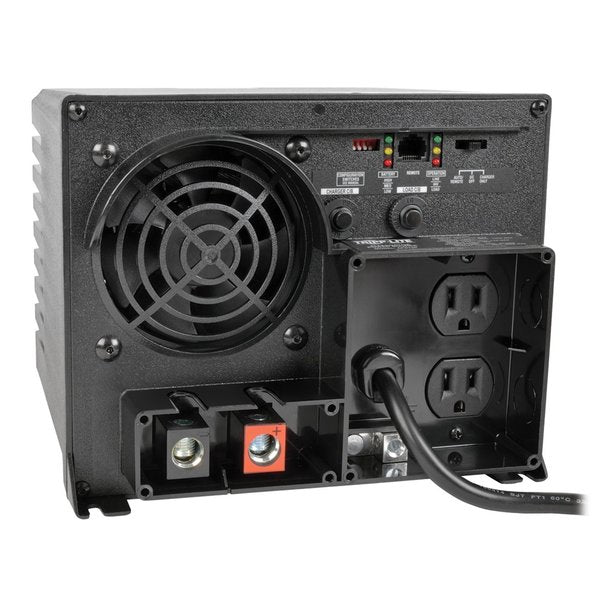

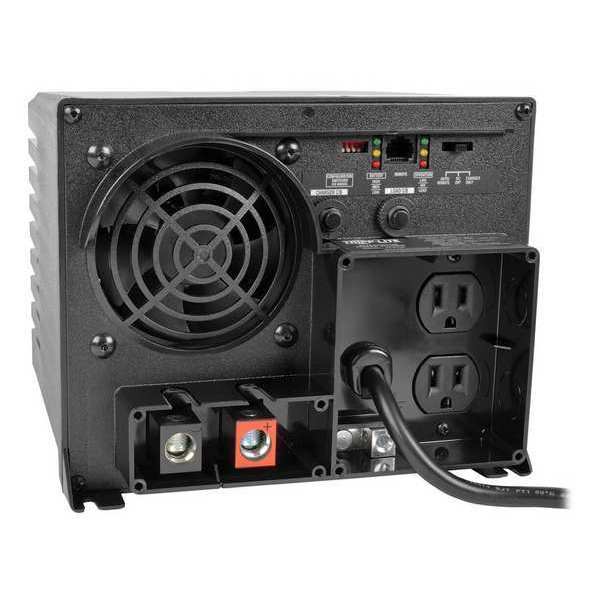

Inverter and Battery Charger, Polycarbonate Case, Sine Wave Form, 750W Nominal Output, 2 Outlets

SKU
Brand Tripp Lite
Categories
Description Inverter and Battery Charger, Inverter Output Form Modified Sine Wave, DC Connection Input Terminals, Peak Output Power 1,500 W, Number of Outlets 2, Inverter Input Voltage 120V AC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Case Material Polycarbonate, Cooling Method Fan, Application Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
graingerSKU: 5KB73, mscSKU: 54072145, zoro_no: G2596675, mongo_id: 65bbe7cb3aaddbd5a90b80bf

Web Price

$747.49 / each

Qty

Product Details

AC Suppression Joule Rating 450

Additional Information Frequency control for operating stability, AC surge suppression not included, Material of construction: Polycarbonate, Low voltage transfer to battery power: User configurable to 75V, 85V, 95V & 105V, High voltage transfer to battery power: User configurable to 135V, 145V, Coated internal circuit boards offer continuous operation in humid environments, Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries, Functions as an extended run UPS system, standalone power source and automotive inverter, RJ-45 port allows connection of APS/PowerVerter Remote Switch (manuf# APSRM4), Switch allows user to select between off, auto-invert/remote and charge-only settings, Configuration switches to allow the user to select the high and low voltage, Mounting slots enable permanent placement of inverter on any horizontal surface, AC input cord and auto-transfer to enable battery charging and automatic UPS support for blackouts & brownouts

Application Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions

Automatic/Manual Automatic

Battery Charge 20A

Case Material Polycarbonate

Charger Depth 9 in

Charger DxWxH 9 in x 8.8 in x 7 in

Charger Height 7 in

Charger Input Current 4.2 A

Charger Input Voltage 120V AC

Charger Output Amps 20 A

Charger Output Current 20 A

Charger Output Voltage 120V

Charger Width 8.8 in

Continuous Output Capacity (Watts) 750

Continuous Power Load 750 W

Cooling Method Fan

Country of Origin (subject to change) China

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 12

Depth 7

Expandable Runtime Yes

Features Automatic Transfer Switching, Emergency and Remote Sites, Front Panel Leds, Meets Normal and Peak Power Demands, Optional Remote Control Capability, Reliable Power for Mobile, Rugged Polycarbonate Housing

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 60 Hz

Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Height 8-3/4

High Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)

Input Connection Type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: NEMA 5-15P input plug

Input Voltage 12VDC

Input Voltage Range 10 V DC - 15 V DC

Inverter Depth 9 in

Inverter Height 7 in

Inverter Input Voltage 120V AC; 12V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 120V AC

Inverter Width 8.7 in

Inveter Output Voltage 120V

Length 12.5

Low Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)

Material of Construction Polycarbonate

Max. Input Current Full continuous load - 72 A at 12V DC; AC INPUT: 8 A at 120V AC with full inverter and charger load

Maximum Frequency 60 Hz

Maximum Input Amps / Watts DC INPUT: Full continuous load - 72A at 12V DC. AC INPUT: 8 amps at 120VAC with full inverter and charger load (4.2A max charger-only)

Nominal Input Voltage(s) Supported 120V AC

Nominal Output Power 750W

Nominal Output Voltage(s) Supported 120V

Number of Outlets 2

Outlet Type NEMA 5-15R

Output Frequency 60 Hz

Output Frequency Regulation 60 Hz (+/- 0.3 Hz)

Output Receptacles (2) 5-15R

Output Voltage 115VAC

Output Voltage Regulation LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).

Overload Protection Includes 6A AC input breaker dedicated to the charging system and 8A output breaker for AC output loads

Package Contents PowerVerter APS 750W Inverter/Charger, Instruction Manual with Warranty Information

Package Includes APS750 750W PowerVerter APS 12V DC 120V AC Inverter/Charger;Owner's manual

Package Quantity 1

Peak Output Capacity (Watts) 1500

Peak Output Power 1500W

Peak Power Load 1500 W

Plug/Connector Type NEMA 5-15P

Product Color Black

Product Line PowerVerter

Product Name PowerVerter APS 750W Inverter/Charger

Product Series APS

Product Type Power Inverter

Protection Type Overload Protection

Pure Sine Wave Output No

Receptacle Color Black

Receptacles 2 x NEMA 5-15R

Recommended Electrical Service DC INPUT: Requires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120V AC recommended

Relative Humidity 0%-95% Non-Condensing

Switches 3 position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterrupt

Transfer Time (Line Power to Battery Mode) 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)

Unit Dimensions (hwd / in.) 7.000 x 8.750 x 9.000

Voltage Compatibility (VAC) 120

Voltage Compatibility (VDC) 12

Waveform Type Pulse-width Modulated Sine Wave

Width 9
