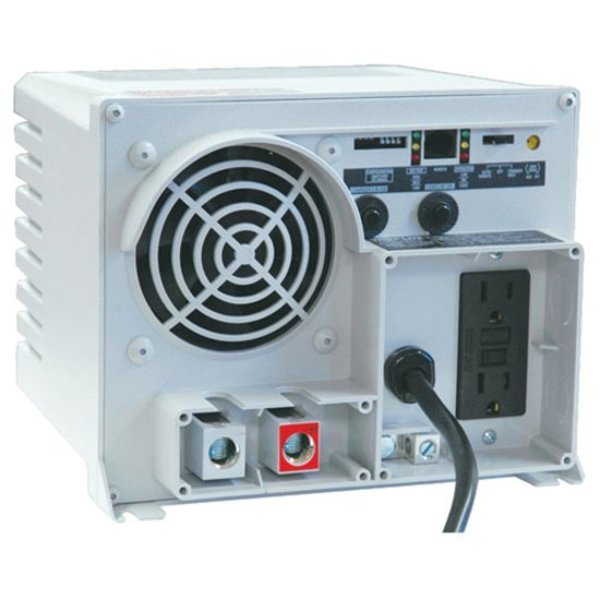

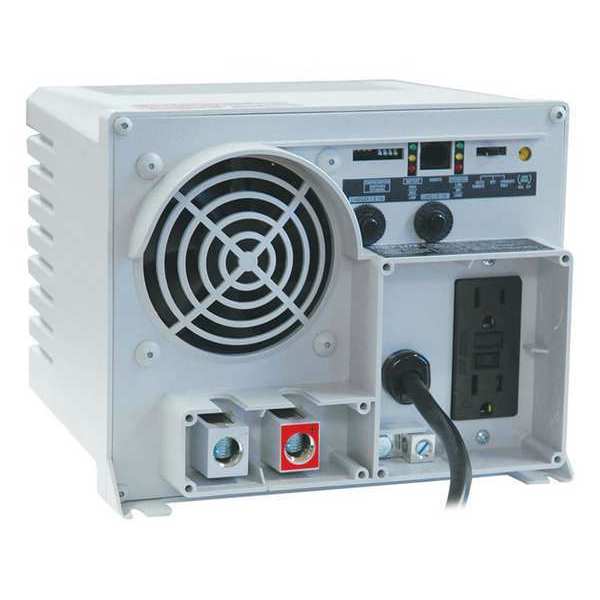

Inverter and Battery Charger, Polycarbonate Case, Sine Wave Form, 750W Nominal Output, 2 Outlets

SKU
Brand Tripp Lite
Categories
Description Inverter and Battery Charger, Inverter Output Form Modified Sine Wave, DC Connection Input Terminals, Peak Output Power 1,500 W, Number of Outlets 2, Inverter Input Voltage 120V AC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Case Material Polycarbonate, Cooling Method Fan, Application Automotive
graingerSKU: 4HHH8, mscSKU: , zoro_no: G1370004, mongo_id: 65bbee17526e052139aec615

Web Price

$987.49 / each

Qty

Product Details

AC Suppression Joule Rating 450

Application Automotive

Automatic/Manual Automatic

Battery Charge 11A / 45A (selectable)

Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)

Case Material Polycarbonate

Charger Depth 9 in

Charger DxWxH 9 in x 8.8 in x 7 in

Charger Height 7 in

Charger Input Current 9.3 A

Charger Input Voltage 120V AC

Charger Output Amps 45 A

Charger Output Current 45 A

Charger Output Voltage 120V

Charger Width 8.8 in

Continuous Output Capacity (Watts) 750

Continuous Power Load 750 W

Cooling Method Fan

Country of Origin (subject to change) China

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 12

Depth 7

Expandable Runtime Yes

Features Automatic Overload, Front Panel Remote Control Connector Enables Remote Off/On Switching with Included Apsrm4 Remote, Load Sensing Control Dial Enables Adjustable Load Threshold Required to Automatically Turn the Inverter On and Off in Dc Mode as Load Conditions Change, Thermal Shutoff

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface. (see manual for additional mounting information)

Frequency Compatibility 60 Hz

Front Panel LEDs Set of (6) LEDs offer continuous status information on load percentage ( 6 levels reported) and battery charge level (7 levels reported) See manual for sequences

Height 9

High Voltage Transfer to Battery Power In AC auto mode, inverter / charger switches to battery mode as line voltages increases to 145V (user adjustable to 145 - see manual)

Includes Remote Control Module

Input Connection Type DC INPUT: Set of two DC bolt-down terminals. AC INPUT: NEMA 5-15R input plug

Input Cord Length Details DC INPUT: User supplies cabling. 6 gauge or larger (see manual) AC INPUT: attached 6ft. AC line cord with plug.

Input Voltage 12VDC

Inverter Depth 9 in

Inverter Height 7 in

Inverter Input Voltage 120V AC; 12V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 120V AC

Inverter Width 8.7 in

Inveter Output Voltage 120V AC, +/- 5%

Load Sensing Load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level.

Low Voltage Transfer to Battery Power In AC auto mode, inverter / charger switches to battery mode as line voltage drops to 75V (user adjustable to 85,95,105 - see manual)

Material of Construction Polycarbonate

Max. Input Current Full continuous load of 73 A at 12 V DC; 29 A at 120 V AC with full inverter and charger load

Maximum Frequency 60 Hz

Maximum Input Amps / Watts DC INPUT: Full continuous load of 73A at 12 VDC. AC INPUT 29 amps at 120 VAC with full inverter and charger load (9.3A max charger only / combined input load to support charger and AC output is automatically controllable to 66% - 33% - 0% based on AC)

Nominal Input Voltage(s) Supported 120V AC

Nominal Output Power 750W

Nominal Output Voltage(s) Supported 120V

Number of Outlets 2

Outlet Details 2 NEMA 5-15R GFCI protected outlets

Outlet Type GFCI

Output Frequency 60 Hz

Output Frequency Regulation 60 Hz (+/- 0.3Hz)

Output Receptacles (2) 5-15R

Output Voltage 115VAC

Output Voltage Regulation LINE POWER (AC): Maintains 120V nominal sine wave output from line Source. Inverter Power (AC) Maintains PWM sine wave output voltage of 120 VAC (+/- 5%)

Overload Protection Includes 10A input breaker dedicated to the charging system and 12A output breaker for AC output loads.

Package Contents PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets, Remote Control, Remote Battery Temperature Sensor Cable, Instruction Manual with Warranty Information

Package Includes UT750UL Inverter/Charger;APSRM4 Remote;Instruction manual with warranty information

Package Quantity 1

Peak Output Capacity (Watts) 1500

Peak Output Power 1500W

Peak Power Load 1500 W

Plug/Connector Type NEMA 5-15R, Terminal Block

Product Certifications CSA (Canada); UL 458

Product Line PowerVerter

Product Name PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets

Product Type Power Inverter

Pure Sine Wave Output No

Receptacle Color White

Receptacles 2 x NEMA 5-15R

Recommended Electrical Service DC INPUT: Requires 12VDC input source capable of delivering 73A for the required Duration (when used at full continuous capacity- DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120VAC recommended.

Relative Humidity 0%-95% Non-Condensing

Standards CSA, UL458

Switches 3 position on / off remote switch enables simple on / off power control plus auto/ remote

Transfer Time (Line Power to Battery Mode) 16.6 milliseconds (typical -compatible with many computers, servers and networking equipment-verify transfer time compatibility loads for UPS applications)

Unit Dimensions (hwd / in.) 7.000 x 8.750 x 9.000

Voltage Compatibility (VAC) 120

Voltage Compatibility (VDC) 12

Waveform Type Pulse-width Modulated Sine Wave

Width 8-3/4
