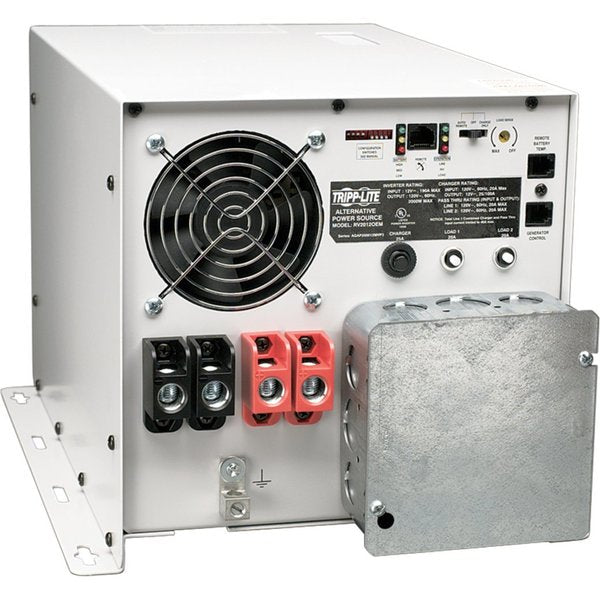

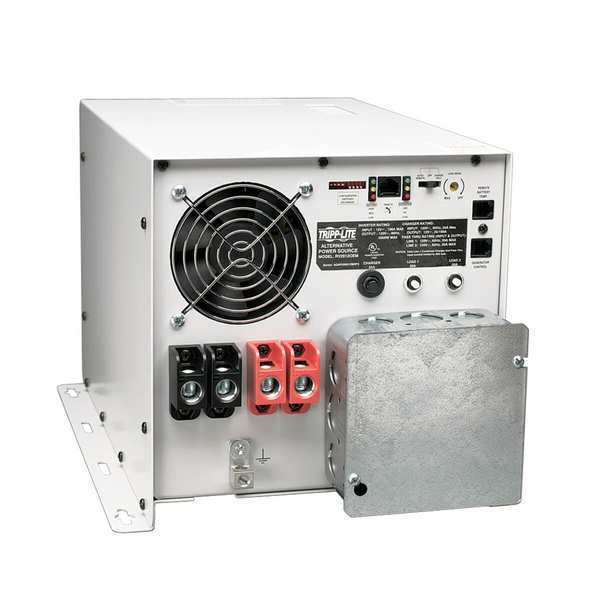

Inverter and Battery Charger, Sine Wave Form, 3000W Nominal Output, 120V Output Voltage

SKU
Brand Tripp Lite
Categories
Description Inverter and Battery Charger, Inverter Output Form Pure Sine Wave, DC Connection Input Terminals, Continuous Output Power 3,000 W, Peak Output Power 6,000 W, Charger Input Voltage 120V AC/12V DC, Charger Output Voltage 120V AC, Case Material Steel, Cooling Method Fan, Charger Height 9.8 in, Charger Width 11.5 in, Charger Depth 16.8 in, Inverter Height 9.75 in, Inverter Width 11.5 in, Inverter Depth 16.75 in, Automatic/Manual Automatic, Charger Input Current 140 A
graingerSKU: 38M920, mscSKU: , zoro_no: G0566146, mongo_id: 65bbe81b22d7a989a98d9075

Web Price

$2,802.49 / each

Qty

Product Details

AC Suppression Joule Rating 450

Automatic/Manual Automatic

Battery Charge 35A / 140A (selectable)

Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)

Case Material Steel

Charger Depth 16.8 in

Charger DxWxH 16.8 in x 11.5 in x 9.8 in

Charger Height 9.8 in

Charger Input Current 140 A

Charger Input Voltage 120V AC/12V DC

Charger Output Amps 140 A

Charger Output Current 140 A

Charger Output Voltage 120V AC

Charger Width 11.5 in

Continuous Output Capacity (Watts) 3000

Continuous Output Power 3,000 W

Continuous Power Load 3000 W

Cooling Method Fan

Country of Origin (subject to change) China

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 12

Depth 16-3/4

Expandable Runtime Yes

Features Expandable Runtime; Overload Protection

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 60 Hz

Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Height 9-3/4

High Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)

Input Connection Type DC INPUT: Set of 4 DC bolt-down terminals (2 red / 2 black). AC INPUT: hardwire (2 input circuits - see manual)

Input Cord Length Details DC INPUT: User supplies cabling. 0 gauge or larger (see manual). AC INPUT: hardwire

Input Voltage 12VDC

Inverter Depth 16.75 in

Inverter Height 9.75 in

Inverter Input Voltage 120V AC

Inverter Output Form Sine Wave

Inverter Output Voltage 120V

Inverter Width 11.5 in

Inveter Output Voltage 120V

Load Sensing Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.

Low Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)

LVC (Low Voltage Cut-Off) 10VDC +/-3%

Material of Construction Steel

Max. Input Current Full continuous load - 282 A at 12V DC; 40 A at 120V AC with full inverter and charger load

Maximum Frequency 60 Hz

Maximum Input Amps / Watts DC INPUT: Full continuous load - 282A at 12VDC. AC INPUT: 40 amps total (20A line 1 / 20A line 2) at 120VAC with full inverter and charger load (25A max charger-only from line 1 / combined input load to support charger and AC output is automatically controlled

Nominal Input Voltage(s) Supported 120V AC

Nominal Output Power 3000W

Nominal Output Voltage(s) Supported 120V

Outlet Type Hardwire

Output Frequency 60 Hz

Output Frequency Regulation 60 Hz (+/- 0.3 Hz)

Output Receptacles Hardwire

Output Voltage 120VAC

Output Voltage Regulation LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 VAC (+/-5%).

Overload Protection Includes 30A input breaker dedicated to the charging system and 2 branch rated 20A output load breakers

Package Contents PowerVerter RV RV3012OEM Charger DC-to-AC Power Inverter, RV3012OEM Inverter/Charger, Instruction manual with warranty information

Package Includes RV3012OEM Inverter/Charger;Instruction manual with warranty information

Package Quantity 1

Peak Output Capacity (Watts) 6000

Peak Output Power 6000W

Peak Power Load 6000 W

Plug/Connector Type Terminal Block

Product Certifications CSA (Canada); UL 458

Product Line PowerVerter

Product Name PowerVerter RV RV3012OEM Charger DC-to-AC Power Inverter

Product Series RV

Product Type Power Inverter

Pure Sine Wave Output No

Receptacles 2 x Hardwired

Recommended Electrical Service DC INPUT: Requires 12VDC input source capable of delivering 290A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation).

Relative Humidity 0%-95% Non-Condensing

Standards Tested to UL458 (USA) and CSA (Canada)

Switches 3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.

Transfer Time (Line Power to Battery Mode) 16.6 milliseconds (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications)

Unit Dimensions (hwd / in.) 9.750 x 11.500 x 16.750

Voltage Compatibility (VAC) 120

Voltage Compatibility (VDC) 12

Waveform Type Pulse-width Modulated Sine Wave

Width 11-1/2
