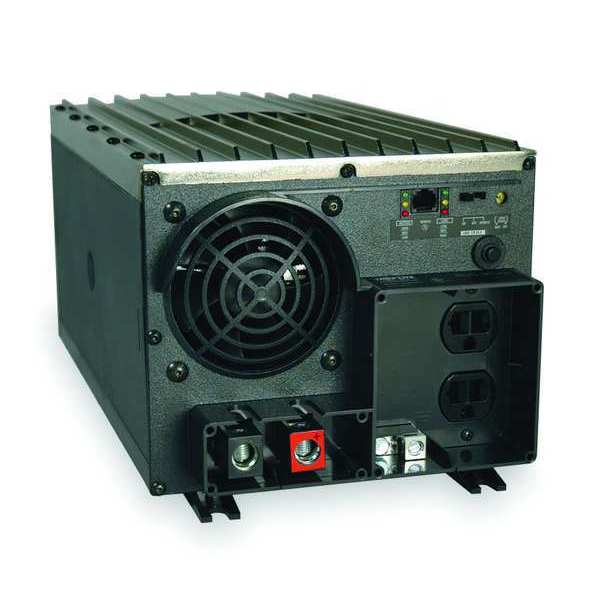

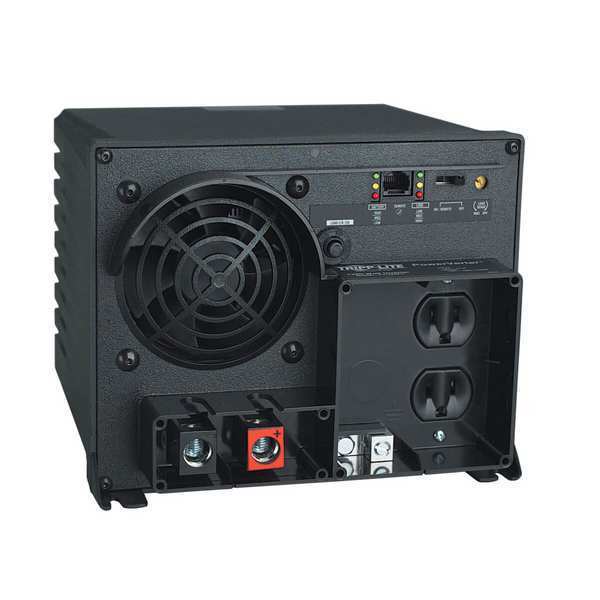

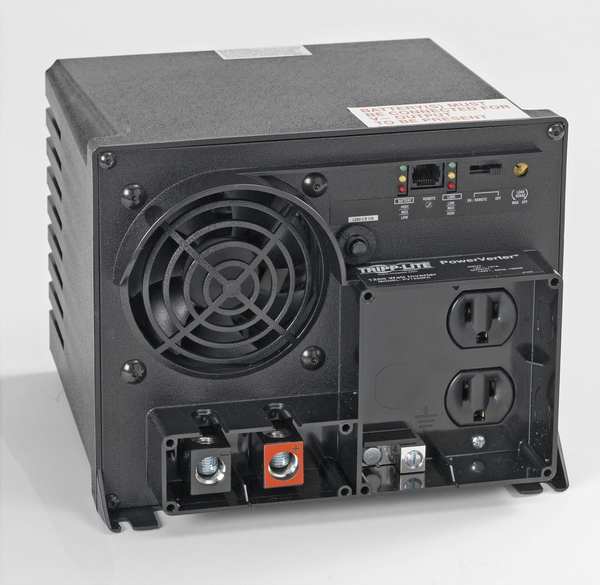

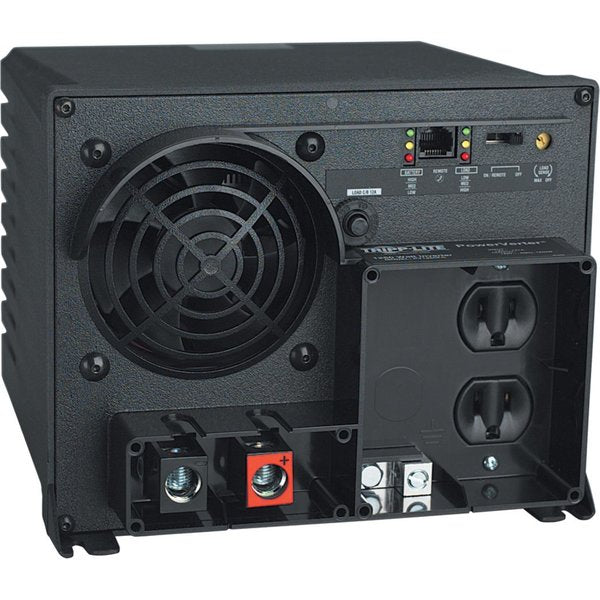

Inverter, Polycarbonate Case, Sine Wave Form, 1250W Nominal Output, 120V Output Voltage, 2 Outlets

SKU
Brand Tripp Lite
Categories
Description Inverter, DC Connection Input Terminals, Continuous Output Power 1,250 W, Peak Output Power 1,250 W, Number of Outlets 2, Input Voltage 12VDC, Output Voltage 115VAC, Outlet Type Standard 3-Prong Outlet, Case Material Polycarbonate
graingerSKU: 1ZE20, mscSKU: 54072350, zoro_no: G2450077, mongo_id: 65bbe9e622d7a989a998533d

Web Price

$642.49 / each

Qty

Product Details

Case Material Polycarbonate

Continuous Output Capacity (Watts) 1250

Continuous Output Power 1,250 W

Continuous Power Load 1250 W

Cooling Method Fan

Country of Origin (subject to change) China

DC Connection User Supplies Cabling

DC System Voltage (VDC) 12

Depth 9

Features Overload Protection

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 60 Hz

Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Height 7

Input Connection Type Set of 2 DC input terminals

Input Cord Length Details User supplies cabling. 4 gauge or larger recommended.

Input Voltage 12V DC

Input Voltage Range 10 V DC - 15 V DC

Inverter DxWxH 9 in x 8 3/4 in x 7 in

Inverter Input Voltage 12V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 115V AC

Inveter Output Voltage 120V

Material of Construction Polycarbonate

Max. Input Current Full continuous load - 127 A at 12V DC; No load - 2.2 A at 12V DC

Maximum Frequency 60 Hz

Maximum Input Amps / Watts Full continuous load - 127A at 12V DC, No load - 2.2A at 12V DC

Nominal Output Power 1250W

Nominal Output Voltage(s) Supported 120V

Number of Outlets 2

Number of USB Ports 0

Outlet Type NEMA 5-15R

Output Frequency 60 Hz

Output Frequency Regulation 60 Hz (+/- 0.3 Hz)

Output Receptacles (2) 5-15R

Output Voltage 120V AC

Output Voltage Regulation Maintains PWM sine wave output voltage of 120 VAC (+/-5%)

Overload Protection Circuit breaker

Package Contents PowerVerter Plus PV1250FC Inverter, PV1250FC inverter, Instruction manual

Package Includes PV1250FC inverter;Instruction manual

Package Quantity 1

Peak Output Capacity (Watts) 2500

Peak Output Power 2500W

Peak Power Load 2500 W

Plug/Connector Type Cigarette Lighter Adapter

Product Line PowerVerter

Product Name PowerVerter Plus PV1250FC Inverter

Product Series Plus

Product Type Power Inverter

Pure Sine Wave Output No

Receptacles 2 x NEMA 5-15R

Recommended Electrical Service Requires 12V DC input source capable of delivering 127A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 200A battery system fusing is recommended.

Relative Humidity 0%-95% Non-Condensing

Switches 3 position on/off/remote switch enables simple on/off power control plus remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APRM4 remote

Unit Dimensions (hwd / in.) 7.000 x 8.750 x 9.000

Voltage Compatibility (VDC) 12

Waveform Type Pulse-width Modulated Sine Wave

Width 8-3/4
