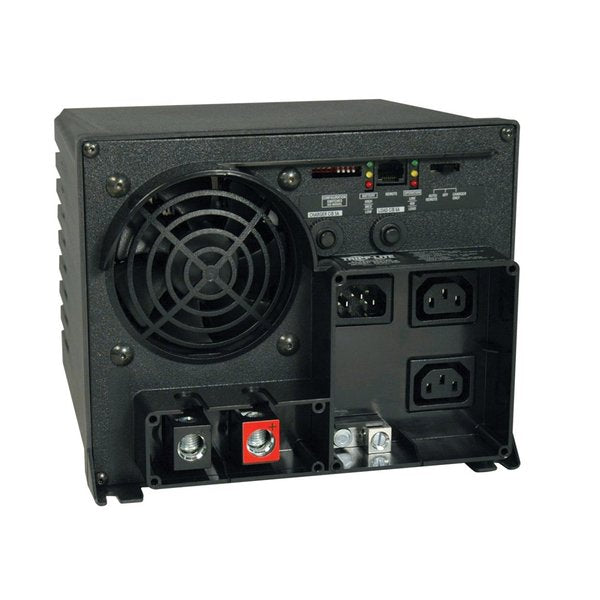

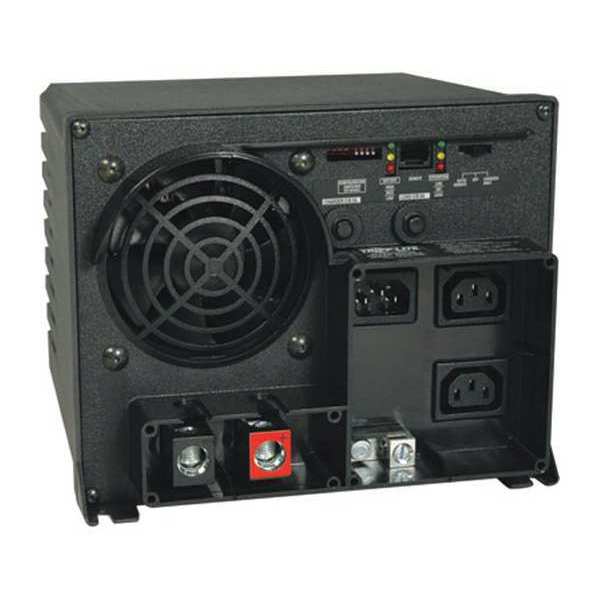

Inverter, Polycarbonate Case, Sine Wave Form, 1250W Nominal Output, 230V Output Voltage, 2 Outlets

SKU
Brand Tripp Lite
Categories
Description Inverter,1250W,12VDC,ATS,2 C13

Web Price

$996.24 / each

Qty

Product Details

AC Suppression Joule Rating 1020

Battery Charge Selectable 7.5 / 30A with 1/2 cycle transfer time

Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)

Case Material Polycarbonate

Charger Output Amps 30 A

Continuous Output Capacity (Watts) 1250

Continuous Power Load 1250 W

Cooling Method Multi-speed fan

Country of Origin (subject to change) China

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 12

Depth 9

Expandable Runtime Yes

Features Expandable Runtime; Overload Protection

Form Factors Supported Mounting slots enable permanent placement of APSX1250 on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 50 Hz

Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Height 7

High Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage increases to 272V

Input Connection Type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: IEC-320 C14 inlet connection

Input Voltage 12 V DC

Inverter Input Voltage 230V AC; 12V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 230V

Inveter Output Voltage 230V

Low Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual)

Material of Construction Polycarbonate

Max. Input Current Full continuous load - 125 A at 12V DC; 9.3 A at 230V AC with full inverter and charger load

Maximum Frequency 50 Hz

Maximum Input Amps / Watts DC INPUT: Full continuous load - 125A at 12VDC. AC INPUT: 9.3A at 230VAC with full inverter and charger load (3.3A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)

Nominal Input Voltage(s) Supported 230V AC

Nominal Output Power 1250W

Nominal Output Voltage(s) Supported 230V

Number of Outlets 2

Outlet Type Universal

Output Frequency 50 Hz

Output Frequency Regulation 50 Hz (+/- 0.3 Hz)

Output Receptacles (2) Universal outlets

Output Voltage 230 V AC

Output Voltage Regulation LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%).

Overload Protection Includes 5A input breaker dedicated to the charging system and 6A output breaker for AC output loads

Package Contents PowerVerter APS X Series 1250W Charger Inverter, Instruction Manual with Warranty Information

Package Includes APSX1250 1250W APS X Series 12V DC 230V AC Inverter/Charger;Owner's manual

Package Quantity 1

Peak Output Capacity (Watts) 2500

Peak Output Power 2500W

Peak Power Load 2500 W

Plug/Connector Type IEC 60320 C14

Product Color Black

Product Line PowerVerter

Product Name PowerVerter APS X Series 1250W Charger Inverter

Product Series APS X

Product Type Power Inverter

Pure Sine Wave Output No

Receptacles 2 x IEC 60320 C13

Recommended Electrical Service DC INPUT: Requires 12VDC input source capable of delivering 125A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 225A minimum battery system fusing is recommended. AC INPUT: 230VAC

Relative Humidity 0%-95% Non-Condensing

Standards RoHS

Switches 3 position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.

Transfer Time (Line Power to Battery Mode) 10 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)

Unit Dimensions (hwd / in.) 7.000 x 8.750 x 9.000

Voltage Compatibility (VAC) 230

Voltage Compatibility (VDC) 12

Waveform Type Pulse-width Modulated Sine Wave

Width 8-3/4
