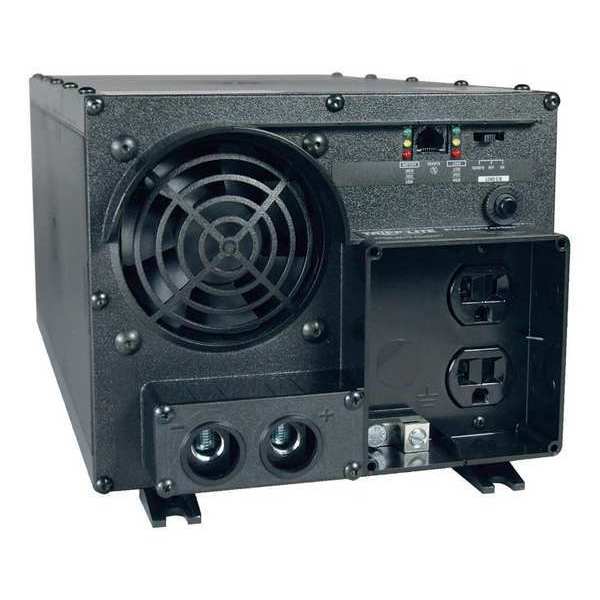

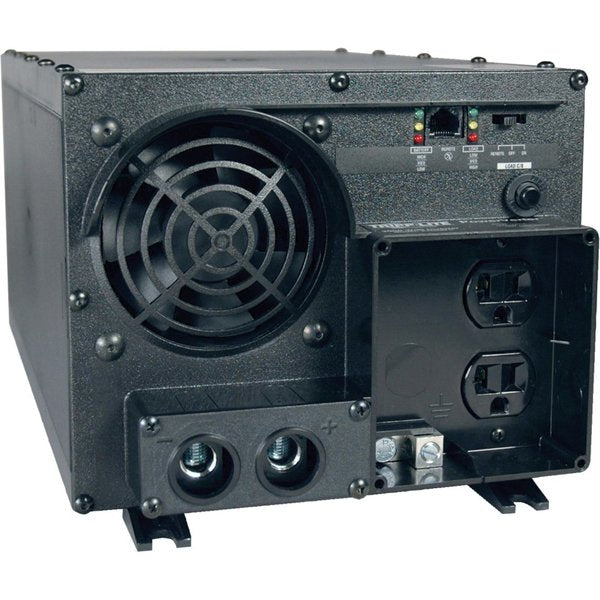

Inverter, Polycarbonate Case, Sine Wave Form, 2400W Nominal Output, 120V Output Voltage, 2 Outlets

SKU
Brand Tripp Lite
Categories
Description Inverter, Features Diagnostic LED, Frequency Control for Operating Stability, High-Efficiency Operation, RJ45 Port Allows Connection of APS/PowerVerter Remote Switch (APSRM4), Output Form Modified Sine Wave, DC Connection (2) Bolt-Down Terminals, Continuous Output Power 2,400 W, Peak Output Power 4,800 W, Number of Outlets 2, Input Voltage 24V DC, Output Voltage 120V AC, Output Frequency 60 Hz, Efficiency 90 Percent, Overall Depth 16 1/4 in, Overall Height 7 1/4 in, Overall Width 8 1/2 in
graingerSKU: 5JK24, mscSKU: 01493089, zoro_no: G3411143, mongo_id: 65bbee17526e052139aec614

Web Price

$1,151.24 / each

Qty

Product Details

Application Motors

Case Material Polycarbonate

Continuous Output Capacity (Watts) 2400

Continuous Output Power 2,400 W

Continuous Power Load 2400 W

Cooling Method Fan

Country of Origin (subject to change) China

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 24

Depth 16-1/4

Efficiency 90 %

Features Diagnostic LED, Frequency Control for Operating Stability, High-Efficiency Operation, RJ45 Port Allows Connection of APS/PowerVerter Remote Switch (APSRM4)

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 60 Hz

Front Panel LEDs Set of 6 LEDs provides continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences

Fused Yes

Height 7-1/4

Includes Set of High Current DC Input Terminals

Input Connection (2) Bolt-Down DC Wiring Terminals

Input Connection Type Set of 2 bolt-down DC wiring terminals

Input Cord Length Details User supplies cabling; 2/0 gauge or larger recommended

Input Current 200 A at 12V DC, 2.2 A at 12V DC

Input Voltage 24V DC

Input Voltage Range 20 V DC - 30 V DC

Inverter DxWxH 16 1/4 in x 8 1/2 in x 7 1/4 in

Inverter Input Voltage 24V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 115V AC

Inveter Output Voltage 120V

Material of Construction Polycarbonate

Max. Input Current Full continuous load - 120 A at 24V DC; No load - 2.2 A at 24V DC

Maximum Frequency 60 Hz

Maximum Input Amps / Watts Full continuous load - 120A at 24V DC; No load - 2.2A at 24V DC

NEMA Rating NEMA 5-20

Nominal Output Power 2400W

Nominal Output Voltage(s) Supported 120V

Number of Outlets 2

Outlet Type NEMA 5-15/20R outlets

Output Connection (2) NEMA 5-15R

Output Form Modified Sine Wave

Output Frequency 60 Hz

Output Frequency Regulation 60 Hz (+/- 0.3 Hz)

Output Receptacles (2) 5-15R

Output Voltage 120V AC

Output Voltage Regulation Maintains PWM sine wave output voltage of 120 VAC (+/-5%)

Overall Depth 16 1/4 in

Overall Height 7 1/4 in

Overall Width 8 1/2 in

Overload Protection Circuit breaker

Package Contents PowerVerter Plus Inverter 2400W, PV2400FC Inverter, Instruction manual

Package Includes PV2400FC Inverter;Instruction manual

Package Quantity 1

Peak Output Capacity (Watts) 4800

Peak Output Power 4800W

Peak Power Load 4800 W

Plug/Connector Type Hardwired

Product Color Black

Product Line PowerVerter

Product Name PowerVerter Plus PV2400FC 2400W Power Inverter

Product Series Plus

Product Type Power Inverter

Pure Sine Wave Output No

Real Power Rating 4,800 W

Receptacles 2 x NEMA 5-15/20R

Recommended Electrical Service Requires 24V DC input source capable of delivering 120A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery system fusing is recommended

Relative Humidity 0%-95% Non-Condensing

Switches 3-position on/off/remote switch enables simple on/off power control plus remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory

Type of Indicator LED

Unit Dimensions (hwd / in.) 7.250 x 8.500 x 16.250

Voltage Compatibility (VDC) 24

Waveform Type Pulse-width Modulated Sine Wave

Width 8-1/2
