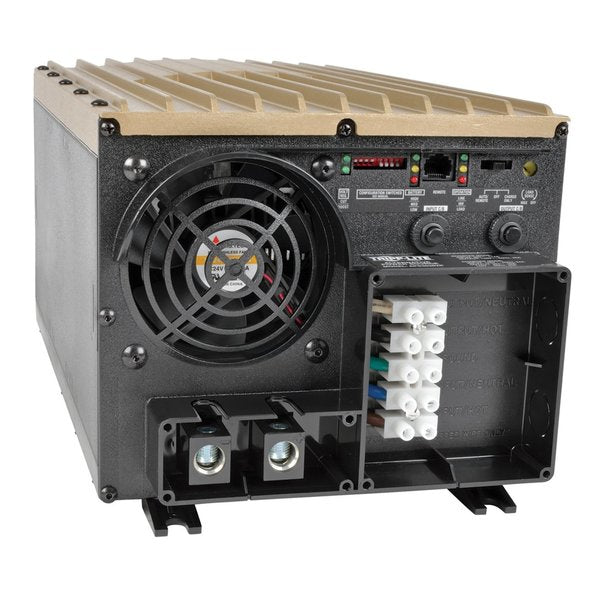

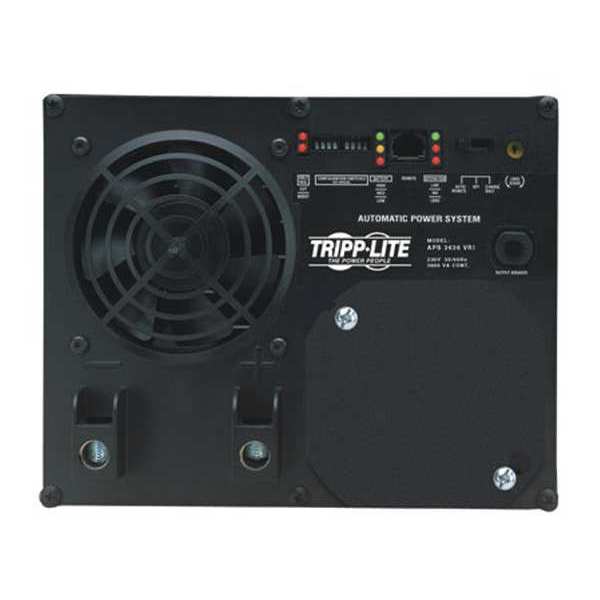

Inverter, Polycarbonate Case, Sine Wave Form, 3600W Nominal Output, 230V Output Voltage
Web Price
$2,503.74
/ each
Product Details
DC Input: Requires 36 VDC input source capable of delivering 114 A, AC Input: 230 VAC, AC Output: 230 VAC nominal, DC Charger Output: 36 VDC nominal, DC Input connection type: Set of DC bolt-down terminals, AC Input connection type: Hardwire via built in junction box with cover plate, Cooling method: Fan, Transfer time from line power to battery mode: 4 to 6 milliseconds, Low voltage transfer to battery power: User configurable to 144V, 163V, 182V & 201V, High voltage transfer to battery power: User configurable to 259 to 278V, Frequency control for operating stability, Resettable circuit breaker protects APS against system overload, RJ45 port allows connection of APS remote switch (part# APSRM), Switch allows user to select between off, auto-invert and charge-only settings, Advanced 30 amp, 3-stage battery charger and selector switch for gel or wet cell batteries, Allows unlimited runtime capability by allowing the use any number of user-supplied batteries, Battery runtime is dependent upon the size and number of user-supplied batteries in 36-volt configuration, Overload protection: Includes 12 A input breaker dedicated to the charging system and 20 A output breaker for AC output loads
30-amp high/7.5A low
98-121 sealed lead acid battery (optional)
Brownouts are automatically boosted by 10%
Polycarbonate
30 A
Compatible with marine, automotive, telecom, computer, emergency and a variety of other applications.
3600
3600 W
Multi-speed fan
China
Bolt Down Terminals
36
7
Yes
Expandable Runtime; Overload Protection; Overvoltage Correction
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
50 Hz
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
8-1/2
In AC auto mode, inverter/charger switches to battery mode as line voltage increases to 259V (user adjustable to 264 - see manual)
DC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate
36 V DC, 230 V AC
30 V DC - 45 V DC
230V AC; 36V DC
Sine Wave
230V
230V
Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
In AC auto mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182V - see manual)
Polycarbonate
Full continuous load - 114 A at 36V DC; 26 A at 230V AC with full inverter and charger load
50 Hz
DC INPUT: Full continuous load - 114A at 36VDC. AC INPUT: 26 amps at 230VAC with full inverter and charger load (10.4A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)
230V AC
3600W
230V
Hardwire
50 Hz
50 Hz (+/- 0.3 Hz)
Hardwire
36 V DC, 230 V AC
LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%).
Includes 12A input breaker dedicated to the charging system and 20A output breaker for AC output loads.
Over-voltages are automatically reduced by 10%
APS PowerVerter INT APSINT3636VR Power Inverter With Charger, Instruction manual with Warranty Information, Wired Remote Switch with full LED status indicators (model APSRM4)
APSINT3636VR 3600W APS INT Series 36V DC 230V AC Inverter/Charger;APSRM4 remote control module;Owner's manual
1
7200
7200W
7200 W
Hardwired
Black
PowerVerter
APS PowerVerter INT APSINT3636VR Power Inverter With Charger
APS
Power Inverter
No
Hardwired
DC INPUT: Requires 36VDC input source capable of delivering 114A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 300A minimum battery system fusing is recommended.
0%-95% Non-Condensing
RoHS
3 position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
20 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
7.000 x 8.500 x 14.000
230
36
Includes automatic voltage regulation to correct brownouts and over-voltages back to usable levels
Pulse-width Modulated Sine Wave
14
