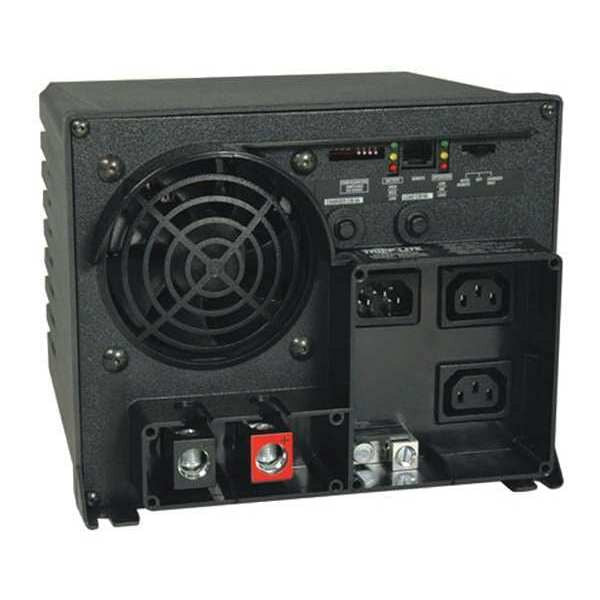

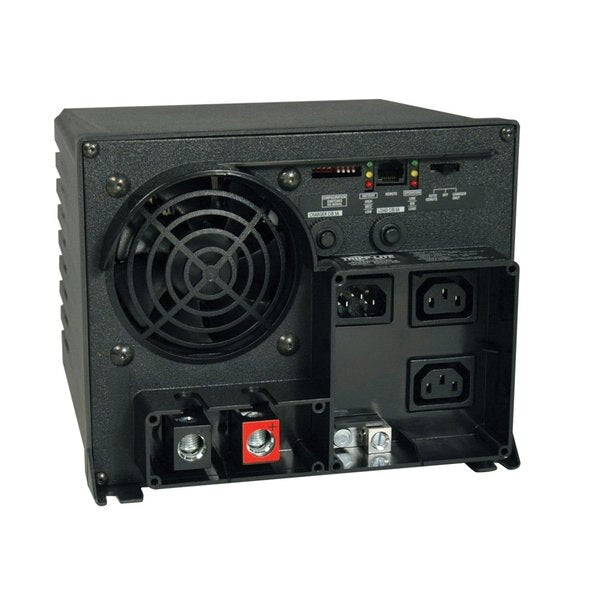

Inverter, Polycarbonate Case, Sine Wave Form, 750W Nominal Output, 230V AC Output Voltage, 2 Outlets

SKU
Brand Tripp Lite
Categories
Description Inverter,750W,12VDC,ATS,2 C13 Outlets
graingerSKU: , mscSKU: , zoro_no: G5190687, mongo_id: 65bbe97a22d7a989a995a0e1

Web Price

$682.49 / each

Qty

Product Details

AC Suppression Joule Rating 1020

Additional Information Frequency control for operating stability, RJ45 port allows connection of APS/PowerVerter Remote Switch, Switch allows user to select between off, auto-invert and charge-only settings, Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries, Coated internal circuit boards offer continuous operation in humid environments (0-95%, non-condensing), Configuration switches to allow the user to select the low voltage for the unit to automatically transfer from AC power to battery backup, Low voltage transfer to battery power: User configurable to 144V, 163V, 182V & 201V Overload protection: Includes 3A input breaker dedicated to the charging system and 4A output breaker for AC output loads, DC Input Voltage: 12 VDC, AC Input Voltage: 230 VAC, DC Charger Output Voltage: 12 VDC, AC Output Voltage: 230 VAC, AC Plug Type: IEC-320 C14, DC Plug Type: Set of 2 DC bolt-down terminals, Outlet/Receptacle Type: IEC-320 C13

Battery Charge Selectable 5 / 20A with 1/2 cycle (10 ms) transfer time

Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)

Case Material Polycarbonate

Charger Output Amps 20 A

Compatibility Compatible with marine, automotive, telecom, computer, emergency and a variety of other applications

Continuous Output Capacity (Watts) 750

Continuous Power Load 750 W

Cooling Method Multi-speed fan

Country of Origin (subject to change) China

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 12

Depth 8-3/4

Expandable Runtime Yes

Features Expandable Runtime; Overload Protection

Form Factors Supported Mounting slots enable permanent placement of APSX750 on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 50 Hz

Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Height 9

High Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage increases to 272V

Input Connection Type DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: IEC-320 C14 inlet connection

Input Voltage 230 V AC, 12 V DC

Input Voltage Range 10 V DC - 15 V DC

Inverter Input Voltage 230V AC; 12V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 230V

Inveter Output Voltage 230V AC

Low Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage drops to 144V (user adjustable to 163, 182, 201V - see manual)

Material of Construction Polycarbonate

Max. Input Current Full continuous load - 72 A at 12V DC; 6.2 A at 230V AC with full inverter and charger load

Maximum Frequency 50 Hz

Maximum Input Amps / Watts DC INPUT: Full continuous load - 72A at 12VDC. AC INPUT: 6.2A at 230VAC with full inverter and charger load (2.2A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output loading using the charger limiting set points - see manual for setting instructions)

Nominal Input Voltage(s) Supported 230V AC

Nominal Output Power 750W

Nominal Output Voltage(s) Supported 230V

Number of Outlets 2

Outlet Type Universal

Output Frequency 50 Hz

Output Frequency Regulation 50 Hz (+/- 0.3 Hz)

Output Receptacles (2) Universal outlets

Output Voltage 12 V DC, 230 V AC

Output Voltage Regulation LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 230 VAC (+/-5%).

Overload Protection Includes 3A input breaker dedicated to the charging system and 4A output breaker for AC output loads

Package Contents PowerVerter APS X APSX750 Power Inverter/Charger, APSX750 Inverter/Charger, Instruction manual with warranty information

Package Includes APSX750 750W APS X Series 12V DC 230V AC Inverter/Charger;Owner's manual

Package Quantity 1

Peak Output Capacity (Watts) 1500

Peak Output Power 1500W

Peak Power Load 1500 W

Plug/Connector Type IEC 60320 C14

Product Color Black

Product Line PowerVerter

Product Name PowerVerter APS X APSX750 Power Inverter/Charger

Product Series APS X

Product Type Power Inverter

Pure Sine Wave Output No

Receptacles 2 x IEC 60320 C13

Recommended Electrical Service DC INPUT: Requires 12VDC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 100A minimum battery system fusing is recommended. AC INPUT: 230VAC

Relative Humidity 0%-95% Non-Condensing

Standards RoHS Compliant

Switches 3 position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.

Transfer Time (Line Power to Battery Mode) Transfer time from line power to battery mode: 10 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)

Unit Dimensions (hwd / in.) 7.000 x 8.750 x 9.000

Voltage Compatibility (VAC) 230

Voltage Compatibility (VDC) 12

Waveform Type Pulse-width Modulated Sine Wave

Width 7
