Home / Inverter, Steel Case, Sine Wave Form, 4000W Nominal Output, 220V; 230V; 240V Output Voltage

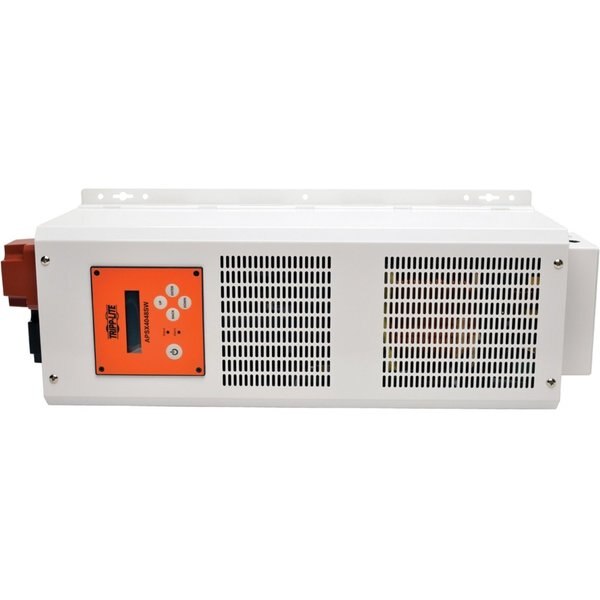

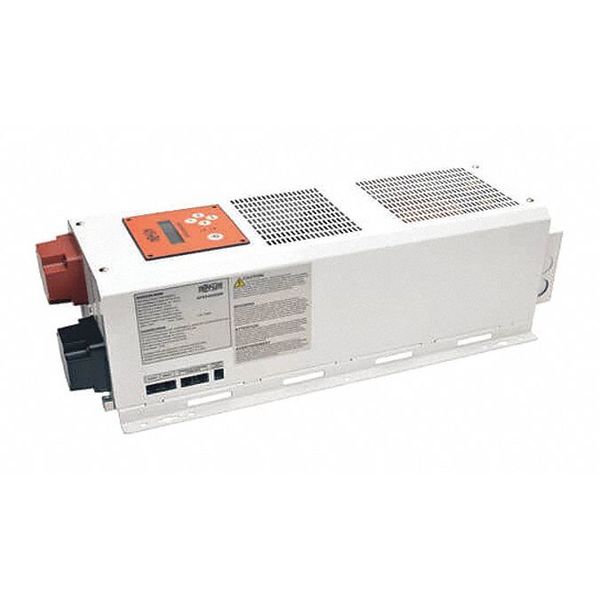

Inverter, Steel Case, Sine Wave Form, 4000W Nominal Output, 220V; 230V; 240V Output Voltage

SKU
Brand Tripp Lite
Categories
Description Inverter,4000W,48VDC,Sine Wave,ATS

Web Price

$3,899.99 / each

Qty

Product Details

Battery Charge Selectable 1 / 70A charge rate

Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)

Case Material Steel

Charger Output Amps 70 A

Continuous Output Capacity (Watts) 4000

Continuous Power Load 4000 W

Cooling Method Fan

Country of Origin (subject to change) China

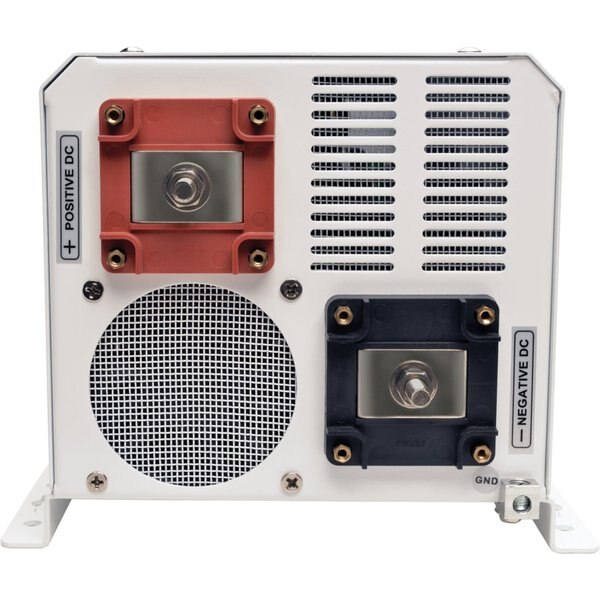

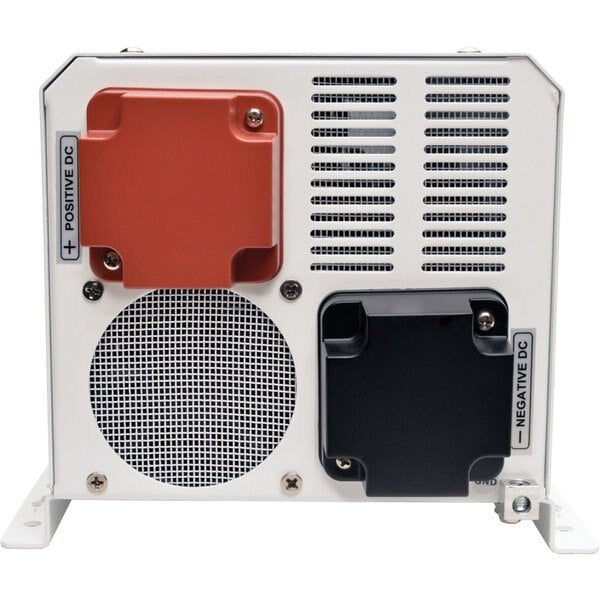

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 48

Depth 9

Expandable Runtime Yes

Features Pure Sine Wave Output

Frequency Compatibility 50 / 60 Hz

Front Panel LEDs LCD display offers continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Grounding Main grounding lug connects inverter/charger to earth or vehicle chassis ground

Height 7-1/4

High Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage increases 10 to 40V AC (user adjustable). See manual

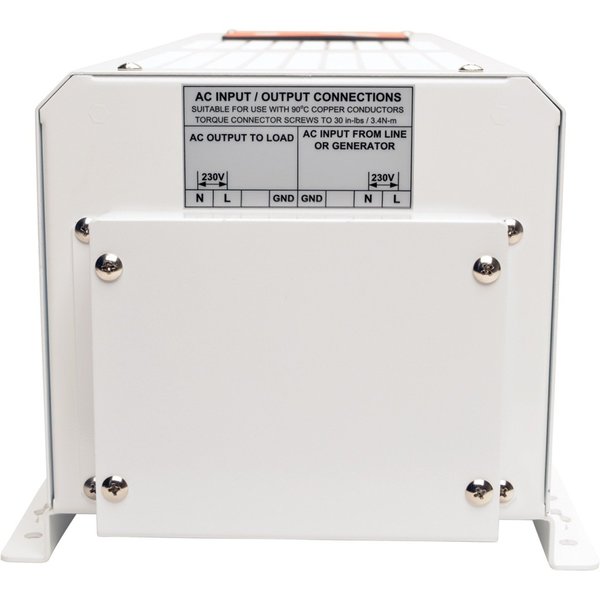

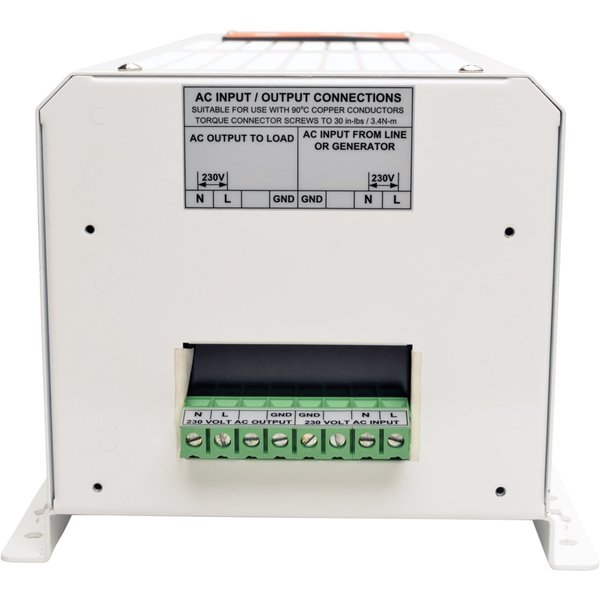

Input Connection Type DC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in terminal strip with cover plate

Input Voltage 240 V AC, 230 V AC, 48 V DC, 220 V AC

Inverter Input Voltage 220V AC; 230V AC; 240V AC; 48V DC

Inverter Output Form Sine Wave

Inverter Output Voltage 220V; 230V; 240V

Inveter Output Voltage 220V; 230V; 240V

Low Voltage Transfer to Battery Power In AC auto mode, inverter/charger switches to battery mode as line voltage drops 10 to 80V AC (user adjustable). See manual

Material of Construction Metal

Max. Input Current 120 A

Maximum Frequency 50 Hz

Maximum Input Amps 120

Network Monitoring Port ASNET (RJ45) ports provide RS-485 (MODBUS) communication for remote monitoring and management

Nominal Input Voltage(s) Supported 220V AC; 230V AC; 240V AC

Nominal Output Power 4000W

Nominal Output Voltage(s) Supported 220V; 230V; 240V

Operating Temperature 32 to 104 F (0 to 40 C)

Outlet Type Hardwire

Output Frequency 50/60 Hz

Output Frequency Regulation 50/60 Hz (+/- 0.5 Hz)

Output Receptacles Hardwire

Output Voltage 230 V AC, 220 V AC, 240 V AC

Output Voltage Regulation LINE POWER (AC): Maintains nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output of +/-2%

Package Contents PowerVerter APSX4048SW Power Inverter, Instruction Manual with Warranty Information

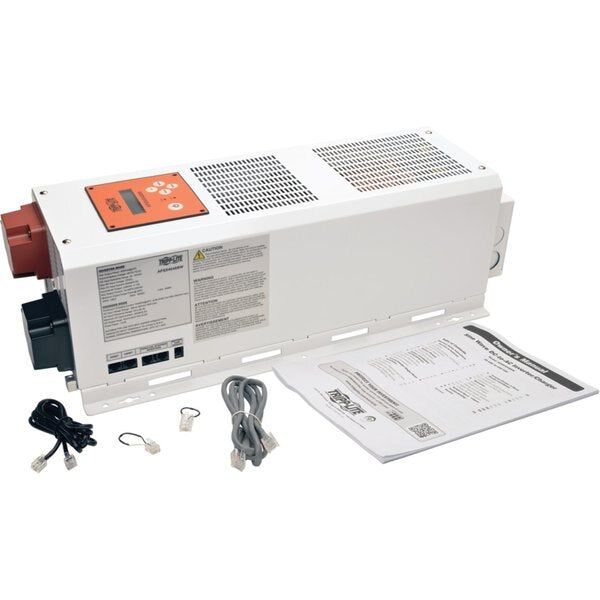

Package Includes APSX4048SW 4000W APS X Series 48V DC 220/230/240V AC Inverter/Charger;Owner's manual;Termination loops;Parallel/stacking cable;ASNET cable

Package Quantity 1

Peak Output Capacity (Watts) 8000

Peak Output Power 8000W

Peak Power Load 6000 W

Plug/Connector Type Hardwired

Product Line PowerVerter

Product Name PowerVerter APSX4048SW Power Inverter

Product Series APS X

Product Type Power Inverter

Pure Sine Wave Output Yes

Receptacles 1 x Hardwired

Recommended Electrical Service DC INPUT: Requires 48VDC input source capable of delivering 120A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire

Relative Humidity 0%-95% Non-Condensing

Switches 5 memebrane switches allow user to operate and configure unit operation.

TAA Compliant Yes

Temp. Range 32ÃÂ°F to 104ÃÂ°F

Transfer Time (Line Power to Battery Mode) 20 millisecond (full cycle) / 10 millisecond (half-cycle)

Unit Dimensions (hwd / in.) 9.000 x 7.250 x 22.500

Voltage Compatibility (VAC) 220; 230; 240

Voltage Compatibility (VDC) 48

Waveform Type Pure Sine Wave

Width 22-1/2
