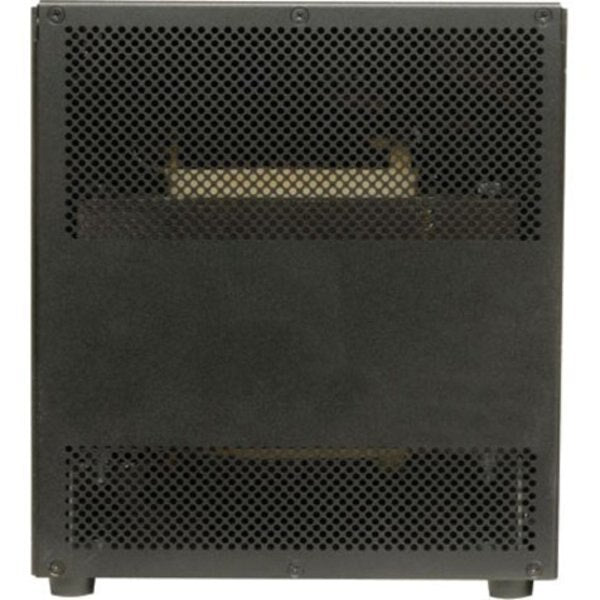

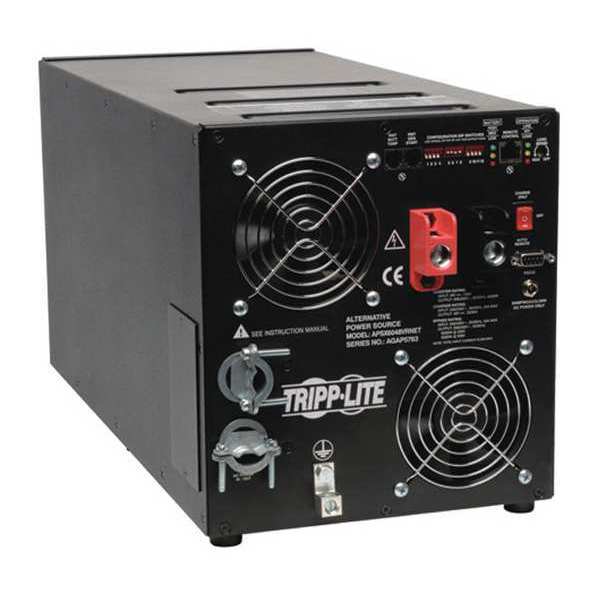

Inverter, Steel Case, Sine Wave Form, 6000W Nominal Output, 208V; 230V Output Voltage

SKU
Brand Tripp Lite
Categories
Description Inverter,6000W,48VDC,Sine Wave,AVR

Web Price

$3,846.24 / each

Qty

Product Details

Battery Charge Selectable 23 / 90A

Battery Pack Accessory (Optional) 98-121 sealed lead acid battery (optional)

Battery Temperature Sensor RJ-11 port connects to optional battery temperature sensor cable to regulate the charging system based on battery temperature

Brownout Correction Input voltages from 208V -189V are automatically boosted by 11% (230V) / Input voltages from 188V-166V are automatically boosted 12% (208V)

Case Material Steel

Charger Output Amps 90 A

Communications Interface Contact closure; DB9 Serial

Continuous Output Capacity (Watts) 6000

Continuous Power Load 6000 W

Cooling Method Dual multi-speed fans

Country of Origin (subject to change) China

DC Connection Bolt Down Terminals

DC System Voltage (VDC) 48

Depth 10

Expandable Runtime Yes

Features Battery Temperature Sensor; Expandable Runtime; Overvoltage Correction; Pure Sine Wave Output

Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Frequency Compatibility 50 / 60 Hz

Front Panel LEDs Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Generator Start Compatibility RJ-11 port connects to a generator with user-supplied cable to automatically cycle generator when battery level is low

Grounding Main grounding lug connects inverter/charger to earth or vehicle chassis ground

Height 9

High Voltage Transfer to Battery Power In 230V AC auto mode, inverter/charger switches to battery mode as line voltage increases to 260V (user adjustable to 270 - see manual), In 208V AC auto mode, inverter/charger switches to battery mode as line voltage increases to 235V (user adjustable to 245V-see manual)

Input Connection Type DC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in terminal strip with cover plate

Input Voltage 208 V AC, 230 V AC, 48 V DC

Inverter Input Voltage 208V AC; 230V AC

Inverter Output Form Sine Wave

Inverter Output Voltage 208V; 230V

Inveter Output Voltage 208V; 230V

Low Voltage Transfer to Battery Power In 230V AC auto mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user adjustable to 180V). In 208V AC auto mode, inverter/charger switches to battery mode as line voltage drops to 165V (user adjustable to 175V)-see manual

Material of Construction Metal

Maximum Frequency 50 Hz

Nominal Input Voltage(s) Supported 208V AC; 230V AC

Nominal Output Power 6000W

Nominal Output Voltage(s) Supported 208V; 230V

Outlet Type Hardwire

Output Frequency 50/60 Hz

Output Frequency Regulation 50/60 Hz (+/- 0.3 Hz)

Output Receptacles Hardwire

Output Voltage 208 V AC, 230 V AC

Output Voltage Regulation LINE POWER (AC): Maintains 208/230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output voltage of 208/230 VAC (+/-5%).

Overvoltage Correction Input voltages above 252V are automatically reduced by 9% (230V) / Input voltages above 235/245V are automatically reduced by 10% (208V)

Package Contents PowerVerter APSX6048VRNET Power Inverter, Instruction Manual with Warranty Information

Package Includes APSX6048VRNET 6000W APS X Series 48V DC 208/230V AC Inverter/Charger;Owner's manual

Package Quantity 1

Peak Output Capacity (Watts) 12000

Peak Output Power 12000W

Peak Power Load 12 kW

Plug/Connector Type Terminal Block

Product Certifications IEC/EN 62040

Product Color Black

Product Compliance CE (Europe)

Product Line PowerVerter

Product Name PowerVerter APSX6048VRNET Power Inverter

Product Series APS X

Product Type Power Inverter

Pure Sine Wave Output Yes

Receptacles Hardwired

Recommended Electrical Service DC INPUT: Requires 48VDC input source capable of delivering 138A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 250A minimum battery system fusing is recommended.

Relative Humidity 0%-95% Non-Condensing

Severe Brownout Correction Input voltages from 188V - 171V are automatically boosted by 26% (230V only)

SNMP Compatibility Optional SNMPWEBSOLOHV accessory card enables remote monitoring of the unit via SNMP, SSH, telnet or Internet.

Standards Tested to EN62040-1 (CE), EN62040-2 (EMC), RoHS compliant

Switches 3 position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.

Transfer Time (Line Power to Battery Mode) Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications

Unit Dimensions (hwd / in.) 10.080 x 8.960 x 19.450

Voltage Compatibility (VAC) 208; 230

Voltage Compatibility (VDC) 48

Voltage Regulation Description Includes automatic voltage regulation to correct brownouts and over-voltages back to usable levels

Waveform Type Sine Wave

Width 19-1/2
