PDU, 15A, 13 Outlet, 15 ft, Black
Web Price
$157.49
/ each
Product Details
Corded AC power distribution unit with 15 amp capacity and 13 AC receptacles, Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats, Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure, Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment, 13 NEMA5-15R output receptacles accept common NEMA5-15 equipment plugs, 15 foot AC cord NEMA5-15P plug connection, Switch-free design prevents the potential for accidental shutoff of connected loads, 15 amp electrical capacity with circuit breaker, 120V AC, 50/60Hz electrical compatibility
Yes
cUL, UR
No
Black
TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.
4.57m
China
4.5
Detachable Mounting Flanges
1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
50/60 Hz
50 / 60 Hz
No
Grounding lug
1 3/4 in
Metal
50/60 Hz
Mounting Hardware
15
15 A
Single-Phase
120 V AC
4 1/2 in
4 1/2 in
5 yr
Metal
15A
15 A
15
120V AC
104 Degrees F
120V AC
Non-Metered
32 Degrees F
7.5
Rack-mountable
Horizontal
Vertical Rackmount/0U

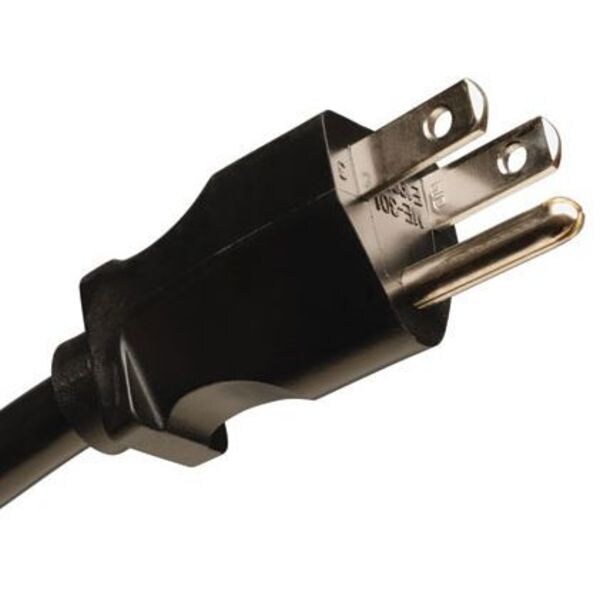

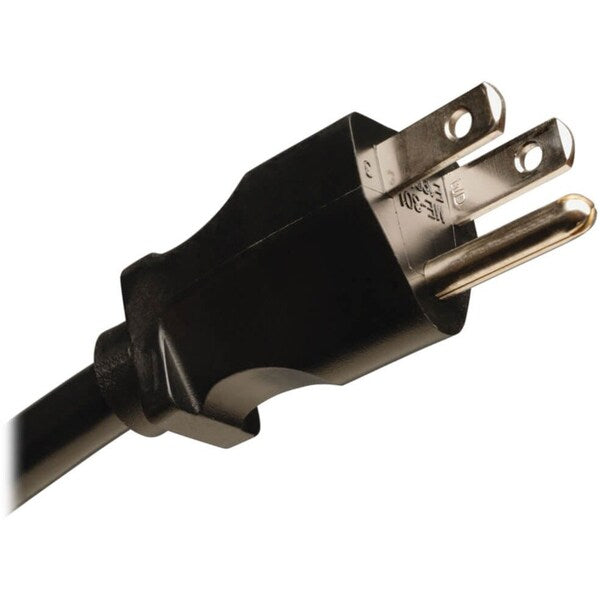

NEMA 5-15P
NEMA 5-15R
Yes
13
0-10,000
32ð to 104ðF (0ð to 40ðC)
30.2mm
No
30.2mm
1.8
1.8kW (120V) / 15A total capacity; 12A max per 5-15R outlet
120V
(13) 5-15R
120 V AC
1 3/4 in
4 1/2 in
17 1/2 in
15A Breaker
PDU1215 PDU Basic 120V 15A 13 Outlet, PDU1215 Rackmount Power Strip, Warranty information, Instruction manual
PDU1215 1.8kW Single-Phase 120V Basic PDU;Mounting hardware;Owner's manual
1
Horizontal (1U)
120
NEMA 5-15P
Basic
Single
NEMA 5-15P
1 x NEMA 5-15P
No
1800 W
RETIE (Colombia); CAN/CSA-22.2 No. 308-14 (Canada); NOM (Mexico); UL 1363
PDU1215 PDU Basic 120V 15A 13 Outlet
1U
Not Applicable
13 x NEMA 5-15R
NEMA 5-15R
Single-phase 15A 120V service
5% to 95% non-condensing
Detachable Mounting Flanges
CE, EAC, FCC Part 15 Class A, RoHS Compliant, TAA Compliant
-22ð to 122ðF (-30ð to 50ðC)
No power switch
Basic
2.000 x 20.000 x 4.500
120VAC
1.9kW (127V), 1.8kW (120V), 1.5kW (100V)
17 1/2 in
