PDU, 20A, 13 Outlet, 15 ft, Black
Web Price
$242.49
/ each
Product Details
Corded AC power distribution unit with 20 amp capacity and 13 AC receptacles - Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - When placed in traditional 1U rackmount installation, attractive all-metal housing offers the appearance of a 1U blanking panel to the front, protecting the 12 rear-facing output receptacles - 13 NEMA5-15/20R output receptacles accept common NEMA5-15 and 5-20 equipment plugs - 15 foot AC cord NEMAL5-20P twist-lock plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 20 amp electrical capacity with circuit breaker - 120V AC, 50/60Hz electrical compatibility
Yes
UL, cUL
No
Black
TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment
4.57m
China
For Use With Audio/Video and Sound Reinforcement Applications
1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
50/60 Hz
50 / 60 Hz
No
Grounding lug
1 3/4 in
Metal
50/60 Hz
Mounting Hardware
15
Single-Phase
120 V AC
4 1/2 in
4 1/2 in
5 yr
Metal
20A
20 A
20
120V AC
104 Degrees F
120V AC
Non-Metered
32 Degrees F
9.5
Rack-mountable
Horizontal Rackmount/1U

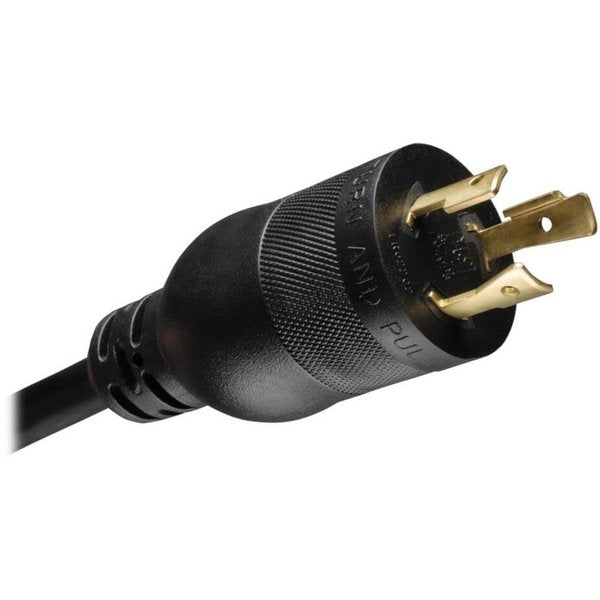

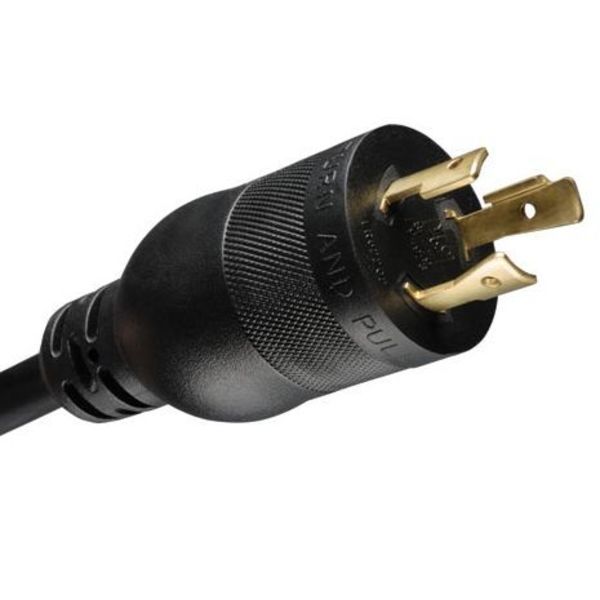

NEMA L5-20P
(13) NEMA 5-15/20R
1
13
0-10,000
32ð to 104ðF (0ð to 40ðC)
30.2mm
No
30.2mm
2.4kW (120V) / 20A total capacity; 16A max per 5-15/20R outlet
120V
(13) 5-15/20R
120 V AC
1 3/4 in
4 1/2 in
17 1/2 in
20A circuit breaker
PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet, PDU1220T Rackmount Power Strip, Instruction manual and warranty information
PDU1220T 2.4kW Single-Phase 120V Basic PDU;Mounting hardware;Owner's manual
1
Horizontal (1U)
120
NEMA L5-20P
Basic
Single
NEMA L5-20P
1 x NEMA L5-20P
No
RETIE (Colombia); CAN/CSA-22.2 No. 308-14 (Canada); NOM (Mexico); UL 1363
PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet
1U
Not Applicable
13 x NEMA 5-20R
NEMA 5-15/20R
Single-phase 20A 120V service
5% to 95% non-condensing
Detachable Mounting Flanges
CE, EAC, FCC Part 15 Class A, RoHS Compliant, TAA Compliant
-22ð to 122ðF (-30ð to 50ðC)
No power switch
Basic
1.750 x 20.000 x 4.500
120VAC
2.5kW (127V), 2.4kW (120V), 2.0kW (100V)
17 1/2 in
