Home / PDU, 20A, 16 Outlet, 12 ft, Black

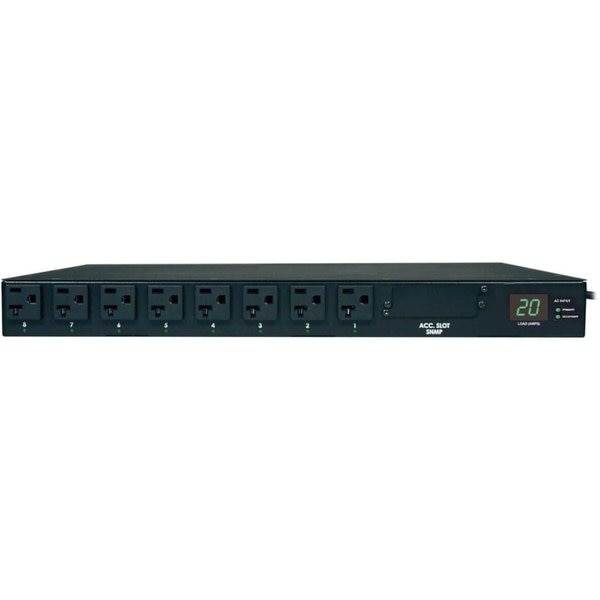

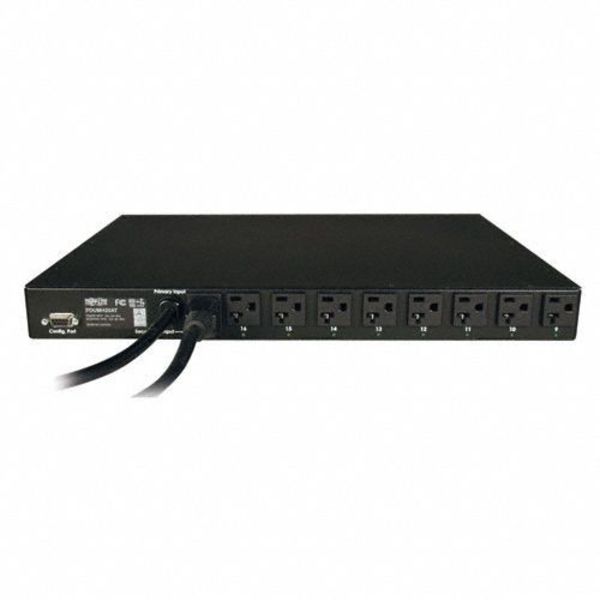

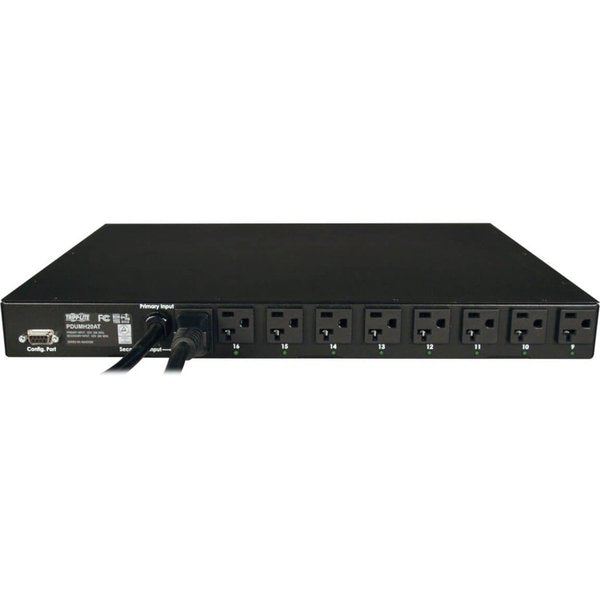

PDU, 20A, 16 Outlet, 12 ft, Black

SKU
Brand Tripp Lite
Categories
Description PDU with Automatic Transfer Switch, Built-In Circuit Breaker Yes, Color Black, Cord Length 12 ft, Number of Outlets 16, Receptacle Type NEMA 5-15/20R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units 1, Mounting Location Horizontal Rack, Plug Type NEMA 5-20P, NEMA L5-20P, Features Digital Current Monitoring Display, Housing Material Metal, Includes Mounting Brackets, Manufacturers Warranty Length 2 yr, Maximum Current 16 A
graingerSKU: 2GZT2, mscSKU: , zoro_no: G2677832, mongo_id: 65bbe92f22d7a989a993d7dc

Web Price

$723.74 / each

Qty

Product Details

Additional Information TAA Compliant

Built-In Circuit Breaker Yes

Certifications & Standards 60950, Class A

Circuit Breaker No

Color Black

Cord Length 3.66m

Country of Origin (subject to change) Taiwan, Province of China

Depth 14.5

Features Digital Current Monitoring Display

Form Factors Supported 1U rackmount

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Front Panel LCD Display Digital display reports total PDU output current in amps

Front Panel LEDs 16 front panel LEDs display power on / off status for each outlet, plus 2 additional LEDs to indicate input power status for primary and secondary inputs

GFCI Protected No

Green Environmental Attribute Yes

Grounding Rear grounding lug

Height 1 3/4 in

High Availability PDU Features Auto-Transfer Switching

Housing Material Metal

Hz_ 50/60 Hz

Includes Mounting Brackets

Input Connection Type Primary: Attached L5-20P, Secondary: C20 inlet with detachable C19-to-L5-20P cordset; L5-20-to-L5-20P adapters

Input Cord Details Set of two L5-20P cordsets with two 5-20P adapters enable connection to separate PRIMARY and SECONDARY power sources

Input Cord Length (ft.) 12

Input Phase Single-Phase

Input Voltage 120 V AC

Length 14 1/2 in

Length (Straight Wireway) 14 1/2 in

Manufacturers Warranty Length 2 yr

Material of Construction Metal

Max. Amps 20A

Maximum Current 16 A

Maximum Input Amps 16

Maximum Input Voltage 120V AC

Maximum Operating Temperature 104 Degrees F

Maximum Output Voltage 120V AC

Metered Non-Metered

Minimum Operating Temperature 32 Degrees F

Minimum Required Rack Depth (inches) 19.5

Mount Type Rack-mountable

Mounting Style Horizontal Rackmount/1U

Mouting Style Rack-mountable

NEMA Plug Configuration (2) NEMA 5-20P; (2) NEMA L5-20P

NEMA Receptacle Configuration NEMA 5-15/20R

Network Management Cards SNMPWEBCARD; WEBCARDLX; WEBCARDLXE

Number of Cord/Cable 2

Number of Outlets 16

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32ÃÂ° to 104ÃÂ°F (0ÃÂ° to 40ÃÂ°C)

Outlet Surge Protection No

Output Capacity Details 1.92kW (120V) / 16A total capacity; 16A max per outlet

Output Nominal Voltage 120V

Output Receptacles (16) 5-15/20R

Output Voltage 120 V AC

Overall Height 1 3/4 in

Overall Length 17 1/2 in

Overall Width 14 1/2 in

Package Contents PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet, PDU with attached L5-20P input power cord, Detachable C19 to NEMA L5-20P 12 ft/3.6m power cord for optional secondary input, Two NEMA L5-20R to NEMA 5-20P plug adapters, User manual with warranty information

Package Includes ATS / Local Metered PDU with attached L5-20P primary input cord;Detachable C19 to NEMA L5-20P secondary input cord;Set of two L5-20R to 5-20P plug adapters;1U rackmount installation brackets;User manual with warranty information

Package Quantity 1

PDU Form Factor Horizontal (1U)

PDU Input Voltage 120

PDU Plug Type (2) NEMA 5-20P; (2) NEMA L5-20P

PDU Type Auto-Transfer Switch; Local Metered

Phase Single

Plug Type NEMA 5-20P, NEMA L5-20P

Plug/Connector Detail 2 x NEMA L5-20P

Power Indicator Yes

Power Rating (VA) 2400 VA

Product Certifications CSA (Canada); NOM (Mexico); UL 60950-1

Product Compliance FCC Part 15 Class A (USA); Trade Agreements Act (TAA)

Product Name PDUMH20AT PDU Metered ATS 120V 20A 16 Outlet

Rack Height 1U

Rack Units 1

Receptacle Detail 16 x NEMA 5-15/20R

Receptacle Type NEMA 5-15/20R

Recommended Electrical Service Two single-phase 20A 120V circuits

Relative Humidity 5% to 95% non-condensing

SNMP Compatibility Includes slot for optional SNMPWEBCARD or WEBCARDLX accessory to add built-in network interface and enable remote individual outlet control over IP

Special Features Digital Current Monitoring Display indicates total PDU power consumption in amps. Auto Transfer Switching allows operation from secondary input source if primary input fails. Includes slot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP.

Standards CE, EAC, FCC Part 15 Class A, RoHS Compliant, Trade Agreements Act

Storage Temperature Range -22ÃÂ° to 122ÃÂ°F (-30ÃÂ° to 50ÃÂ°C)

TAA Compliant Yes

Type Auto-Transfer Switch

Unit Dimensions (hwd / in.) 1.750 x 17.500 x 14.500

Voltage 120V

Watts 2.03kW (127V), 1.92kW (120V), 1.6kW (100V)

Width 17 1/2 in
