PDU, 3-Ph, Monitored, 10kW 3, 42 C13, 6C19, 0U
Web Price
$1,192.49
/ each
Product Details
TAA, UL60950-1 (USA) CAN60950-1 (Canada), NOM (Mexico), , Class A (Emissions)
Yes

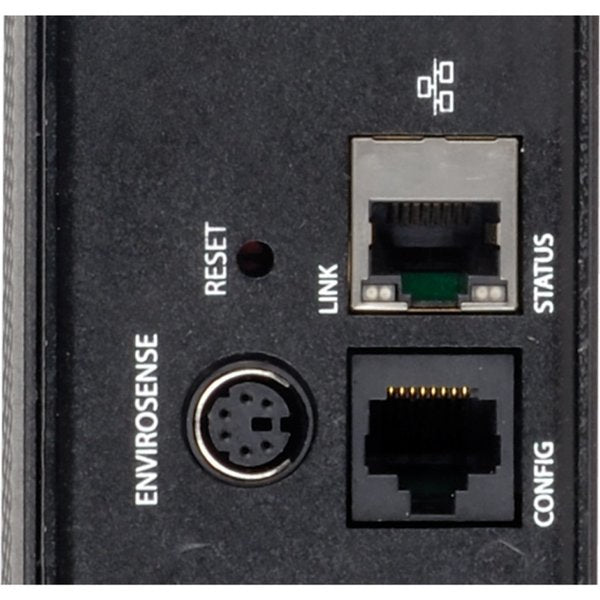

RJ45-to-DB9 configuration/console Access cable
1.83m
Taiwan, Province of China
+/-1%
2.9
Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
50/60 Hz
50 / 60 Hz

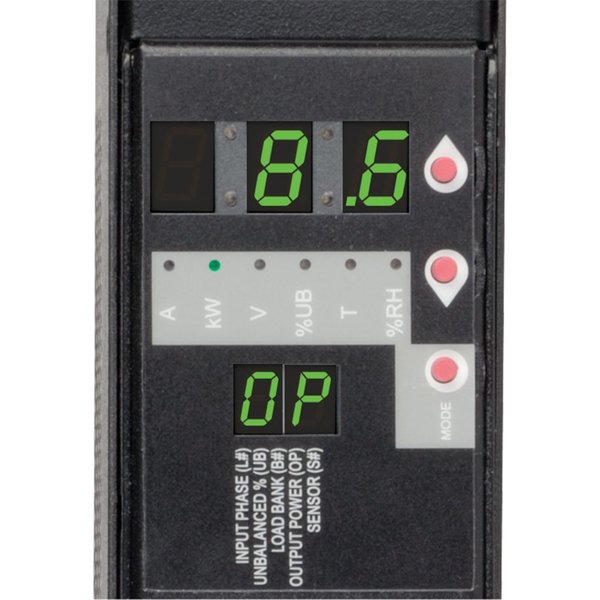

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)
RoHS
Yes
70
Metal
Monitored rackmount PDU with Pre-installed Mounting ButtonsSpare Installation Buttons (2 9mm / 4 6mm)Rack Mounting BracketsOwner's Manual
6
30 A
3-Phase
230 V AC
Metal
24A
24
Rack-mountable
Vertical
Vertical Rackmount/0U
Rack-mountable

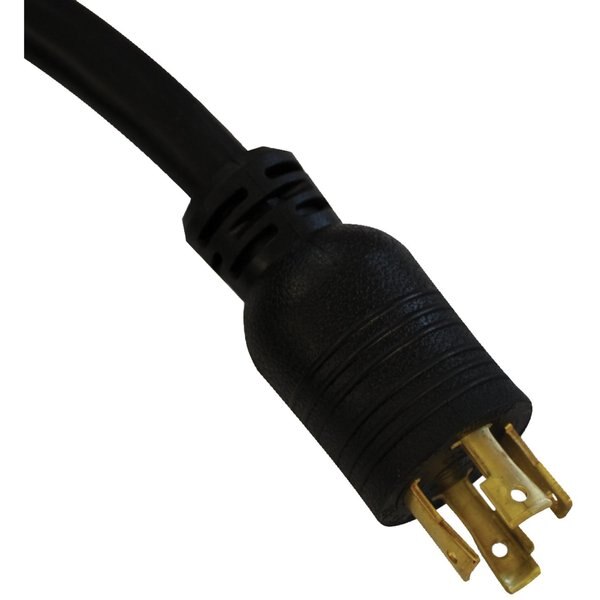

NEMA L15-30P
(42) C13; (6) C19
10 Mbps; 100 Mbps (Fast Ethernet)
48
0-10,000
32 to 122F (0C to 50C)
10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet
200; 208; 240
(42) C13; (6) C19
230 V AC, 240 V AC, 208 V AC, 200 V AC, 220 V AC

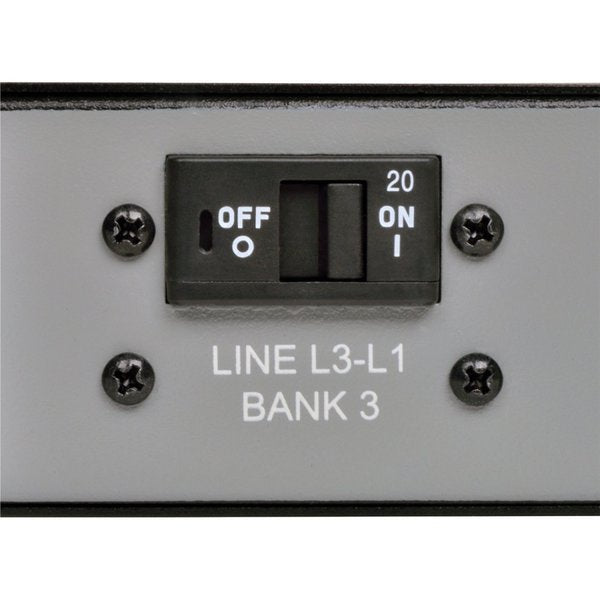

3 20A circuit breakers, one per output load bank

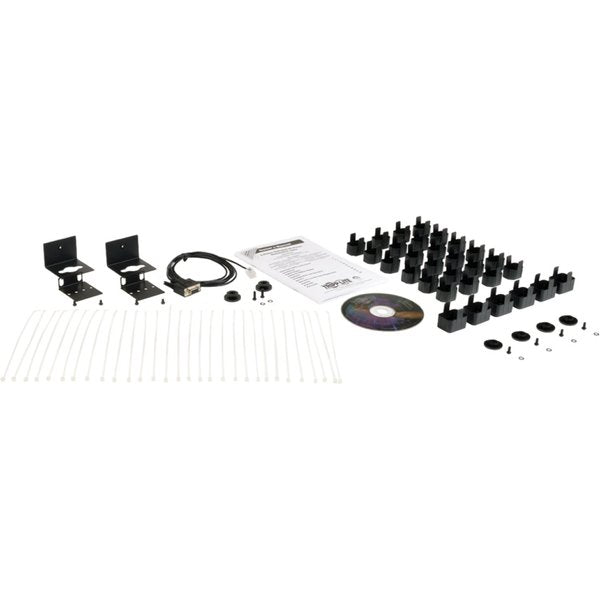

Monitored rackmount PDU with Pre-installed Mounting Buttons, Spare Installation Buttons (2 9mm / 4 6mm), Rack Mounting Brackets, Owner's Manual
Monitored rackmount PDU with pre-installed mounting buttons;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual
1
Vertical (0U)
NEMA L15-30P
Monitored
NEMA L15-30P
Yes
+/-1%
10 kW
Monitored rackmount PDU with Pre-installed Mounting Buttons
PDU
Overload Protection
0U
42 x IEC 60320 C13, 6 x IEC 60320 C19
30A 208/240V with L15-30R outlet
5-95% non condensing

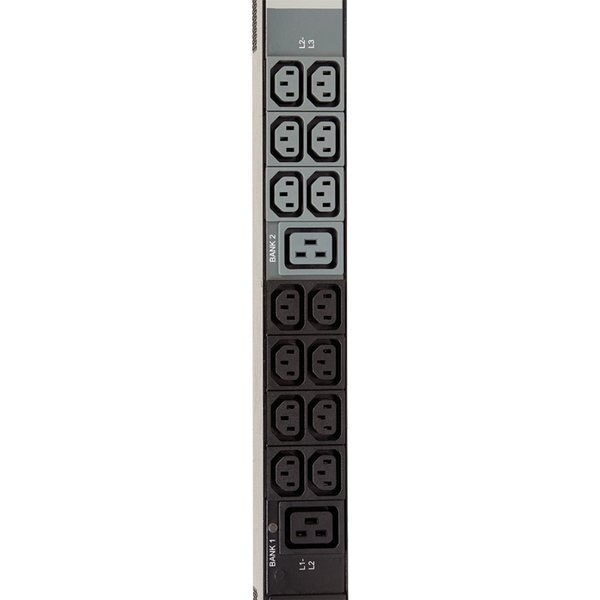

Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (13.9A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)
TAAUL60950-1 (USA) CAN60950-1 (Canada)NOM (Mexico), Class A (Emissions)
5 to 140F (-15C to 60C)
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement
Yes
70.000 x 2.170 x 2.860
208/240V
+/-1%
2.2
