PDU, 3-Ph, Monitored, 10kW 3, 42 C13, 6C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Ph,Monitored,10kW 3,42 C13,6C19,0U

Web Price

$1,368.74 / each

Product Details

Circuit Breaker Yes

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 1.83m

Country of Origin (subject to change) Taiwan, Province of China

Current Measurement Accuracy (Amps) +/-1%

Depth 2.9

Features Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting

Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

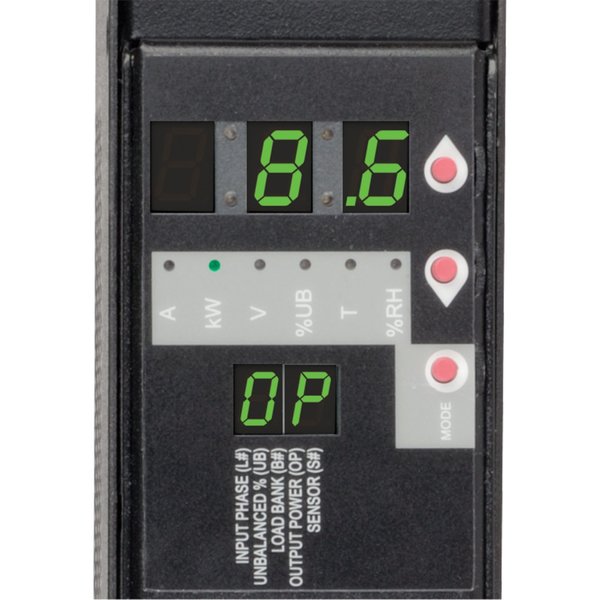

Front Panel LCD Display Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)

Front Panel LEDs Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)

Height 70

Housing Material Metal

Hz_ 50/60 Hz

Includes Mounting Brackets

Input Cord Length (ft.) 6

Input Current 30 A

Input Phase 3-Phase

Input Voltage 230 V AC

Material of Construction Metal

Max. Amps 24A

Maximum Input Amps 24

Metered Yes

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

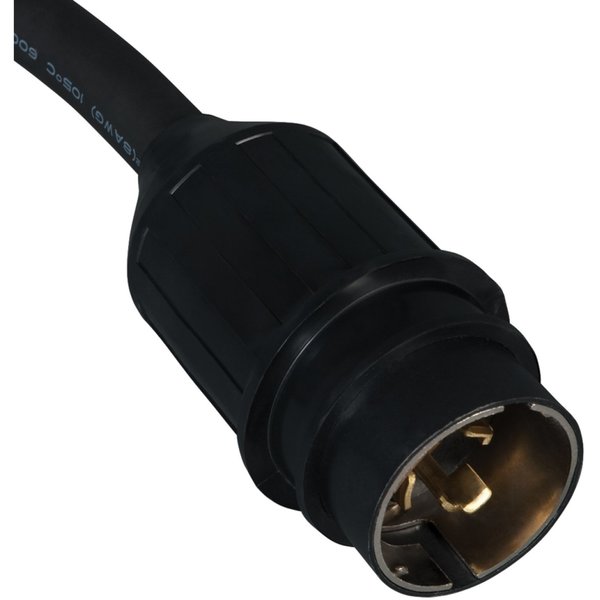

NEMA Plug Configuration NEMA L21-30P

NEMA Receptacle Configuration (42) C13; (6) C19

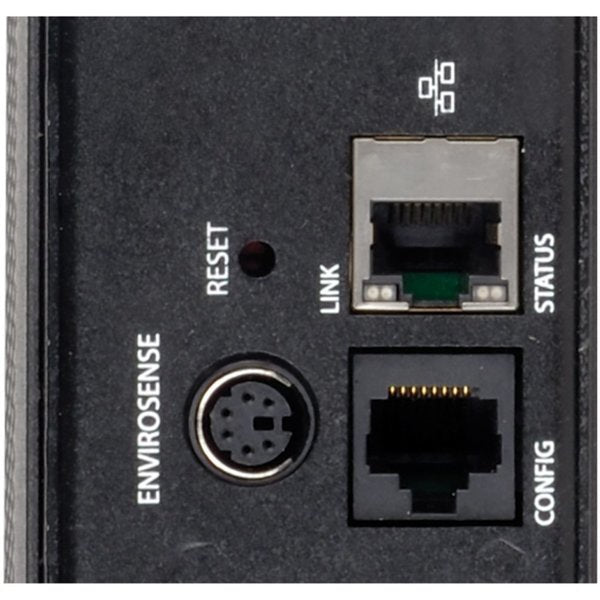

Network (RJ-45) Yes

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 48

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32 to 122F (0C to 50C)

Output Capacity Details 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet

Output Nominal Voltage 200; 208; 240

Output Receptacles (42) C13; (6) C19

Output Voltage 220 V AC, 200 V AC, 240 V AC, 230 V AC, 208 V AC

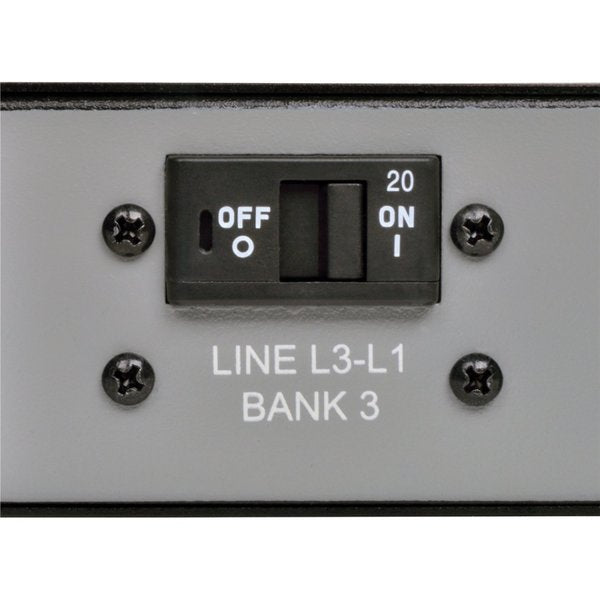

Overload Protection 3 20A circuit breakers, one per output load bank

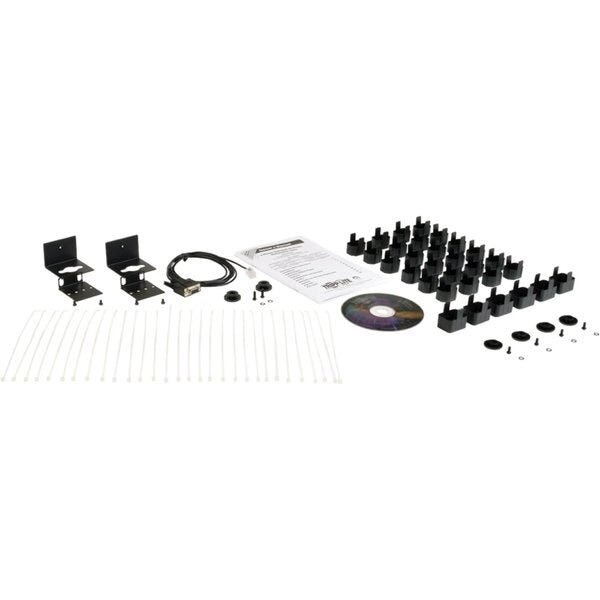

Package Contents Monitored Rackmount PDU with Pre-installed Mounting Buttons, Spare Installation Buttons (2 9mm / 4 6mm), Rack Mounting Brackets, Owner's Manual

Package Includes Monitored rackmount PDU with pre-installed mounting buttons;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type NEMA L21-30P

PDU Type Monitored

Phase 3

Plug/Connector Type NEMA L21-30P

Power Indicator Yes

Power Measurement Accuracy (Watts) +/-1%

Power Rating (Watt) 10 kW

Product Name Monitored Rackmount PDU with Pre-installed Mounting Buttons

Product Series Monitored

Product Type PDU

Protection Type Overload Protection

Rack Height 0U

Receptacle Detail 6 x IEC 60320 C19, 42 x IEC 60320 C13

Recommended Electrical Service 30A 208/240V with L21-30R outlet

Relative Humidity 5-95% non condensing

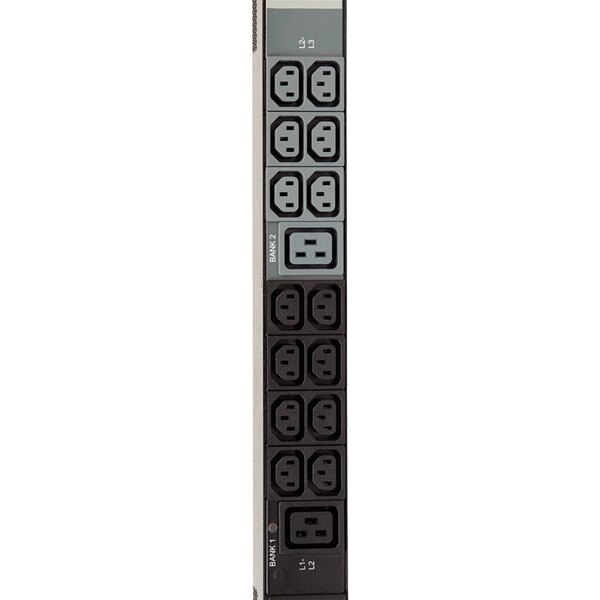

Reported Load Segments Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (13.9A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)

Standards UL60950-1, CAN60950-1, NOM, Class A, TAA Compliant

Storage Temperature Range -30ÃÂ°C to +60ÃÂ°C (-22ÃÂ°F to +140ÃÂ°F)

Switches Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement

Type Monitored

Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.490

Voltage 200/208/240V

Voltage Measurement Accuracy (Volts) +/-1%

Watts 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V)

Width 2.2
