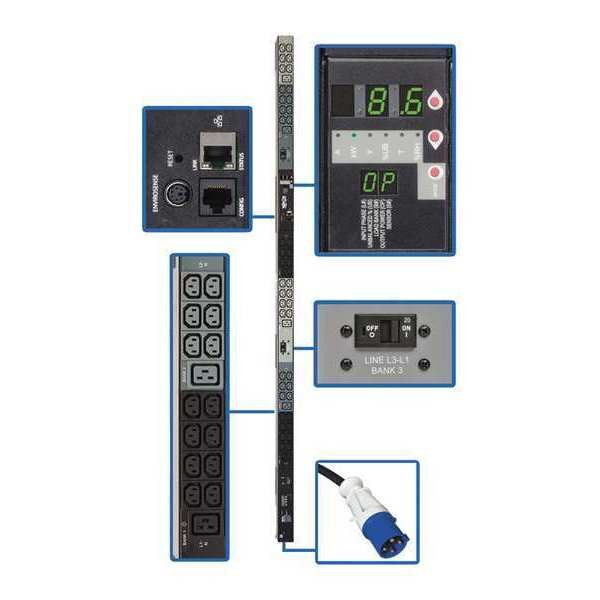

PDU, 3-Ph, Monitored, 10kW, 42 C13, 6 C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Ph,Monitored,10kW,42 C13,6 C19,0U
graingerSKU: , mscSKU: , zoro_no: G5179207, mongo_id: 65bbe90822d7a989a992f32f

Web Price

$1,284.99 / each

Qty

Product Details

Additional Information Input Receptacle: IEC-309 Blue 30A (3P+E)

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 3.05m

Country of Origin (subject to change) China

Current Measurement Accuracy (Amps) +/-1%

Depth 3.3

Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Front Panel LCD Display Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)

Front Panel LEDs Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)

Height 70

Housing Material Metal

Input Cord Length (ft.) 10

Input Phase 3-Phase

Input Voltage 230 V AC

Material of Construction Metal

Max. Amps 24A

Maximum Input Amps 24

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

NEMA Plug Configuration IEC-309 30A BLUE (3P+E)

NEMA Receptacle Configuration (42) C13; (6) C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Network Monitoring Port RJ45 Network port, RJ45 Config/Console Access port; 2x USB A ports supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. USB B port (Configuration & Console Access)

Number of Outlets 48

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32 to 122F (0C to 50C)

Output Capacity Details 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet

Output Nominal Voltage 200; 208; 240

Output Receptacles (42) C13; (6) C19

Output Voltage 208 V AC

Overload Protection 3 20A circuit breakers, one per output load bank

Package Contents Monitored PDU3VN10G30 36-Outlets 8.6kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual

Package Includes PDU3VN10G30 10kW 200/208/240V 3-Phase Monitored PDU, 10 ft. cord;(42) C13/C14 plug-lock inserts;(6) C19/C20 plug-lock inserts;Spare mounting buttons;(2) Conventional mounting brackets;Configuration cable for network interface;Button/bracket-mounting hardware;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type IEC-309 30A BLUE (3P+E)

PDU Type Monitored

Power Indicator Yes

Power Measurement Accuracy (Watts) +/-1%

Power Rating (Watt) 8600 W

Product Name Monitored PDU3VN10G30 36-Outlets 8.6kW PDU

Product Series Monitored

Product Type PDU

Protection Type Overload Protection

Receptacle Detail 30 x IEC 60320 C13, 6 x IEC 60320 C19

Recommended Electrical Service 30A 208V with IEC309 30A Blue (3P+E) outlet

Relative Humidity 5-95% non condensing

Reported Load Segments Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (13.9A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)

Storage Temperature Range -30ÃÂ°C to +60ÃÂ°C (-22ÃÂ°F to +140ÃÂ°F)

Switches Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement

Unit Dimensions (hwd / in.) 70.000 x 2.200 x 3.580

Voltage 208V

Voltage Measurement Accuracy (Volts) +/-1%

Width 2.2
