PDU, 3-Ph, Monitored, 11.5kW, 52 C13, 6C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Ph,Monitored,11.5kW,52 C13,6C19,0U
graingerSKU: null, mscSKU: null, zoro_no: G5178699, mongo_id: 65bbe6a93aaddbd5a904589d

Web Price

$1,453.74 / each

Product Details

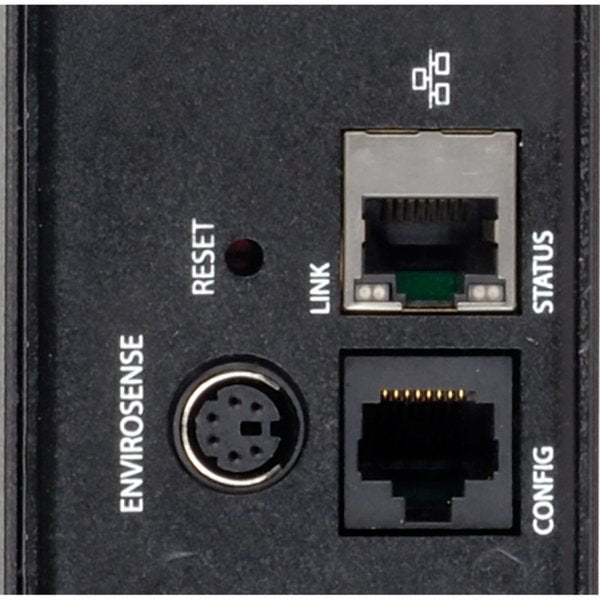

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 1.83m

Country of Origin (subject to change) Taiwan, Province of China

Depth 2.9

Features Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting

Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

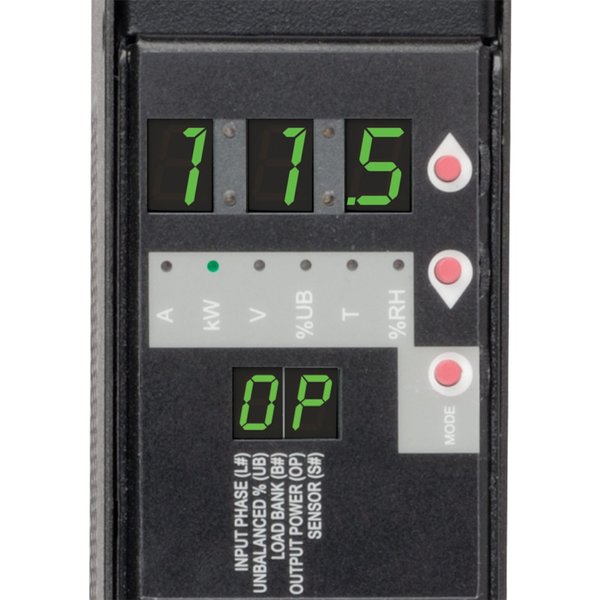

Front Panel LCD Display Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)

Front Panel LEDs Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)

Height 70

High Availability PDU Features Remote Network Notifications

Housing Material Metal

Hz_ 50/60 Hz

Includes Mounting Brackets

Input Cord Length (ft.) 6

Input Current 16 A

Input Phase 3-Phase

Input Voltage Range 360 V AC - 415 V AC

Material of Construction Metal

Max. Amps 16A

Maximum Input Amps 16

Metered Yes

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

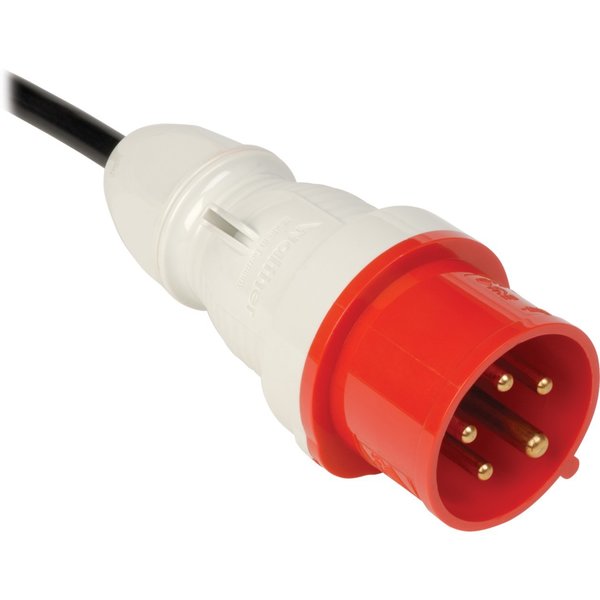

NEMA Plug Configuration IEC-309 16/20A RED (3P+N+E)

NEMA Receptacle Configuration (42) C13; (6) C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 48

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 0C ~ 50C (32F ~ 122F)

Output Capacity Details 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V), 10kW (360/208V) total capacity; 16A max per output phase (L1-L2, L2-L3, L3-L1); 16A max per C19 outlet; 12A max (10A CE) max per C13 outlet

Output Nominal Voltage 208-240V

Output Receptacles (42) C13; (6) C19

Output Voltage 415 V AC, 400 V AC, 380 V AC, 360 V AC

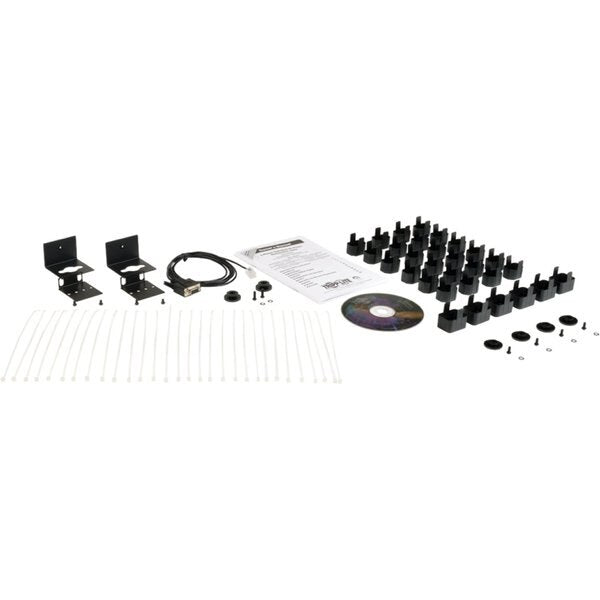

Package Contents Monitored PDU3XVN6G20 48-Outlets PDU, Plug-lock C14 and C20 Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual

Package Includes Monitored PDU with pre-installed mounting buttons;Plug-lock C14 and C20 cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Input Voltage 360; 380; 400; 415

PDU Plug Type IEC-309 16/20A RED (3P+N+E)

PDU Type Monitored

Phase 3

Plug/Connector Type IEC 60309 16/20A RED (3P+N+E)

Power Indicator Yes

Power Rating (Watt) 11.50 kW

Product Certifications EN 60950-1; CSA (Canada); NOM (Mexico); UL 60950-1

Product Compliance CE (Europe); FCC Part 15 Class A (USA)

Product Name Monitored PDU3XVN6G20 48-Outlets PDU

Product Series Monitored

Product Type PDU

Rack Height 0U

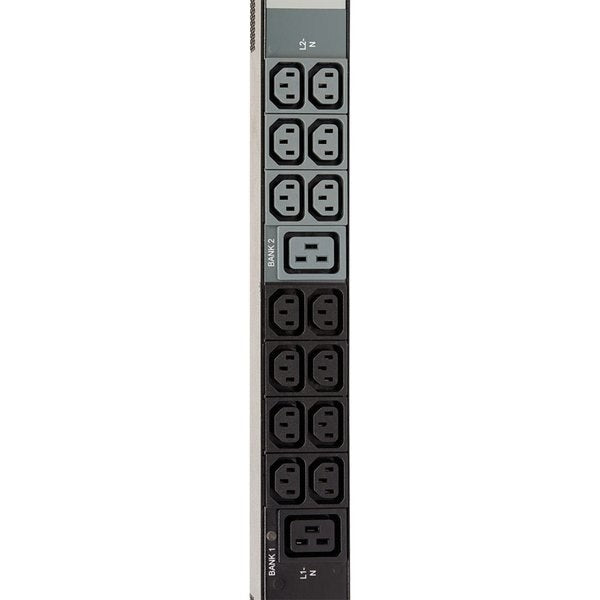

Receptacle Detail 6 x IEC 60320 C19, 42 x IEC 60320 C13

Recommended Electrical Service Three-phase 16A 360-415V service

Relative Humidity 5-95% non condensing

Reported Load Segments Supports local monitoring of current for each input phase (L1, L2 and L3) and output current for each output load bank (16A balanced max per B1, B2 and B3); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1); L2-N feeds dark-gray outlets (B2); L3-N feeds light-gray outlets (B3)

Standards UL60950-1, CSA, NOM, CE (EN 60950-1), CE / FCC Class A, TAA Compliant

Storage Temperature Range -30ÃÂ°C to +60ÃÂ°C (-22ÃÂ°F to +140ÃÂ°F)

Switches Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button

TAA Compliant Yes

Type Monitored

Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.860

Voltage 400/230V

Watts 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V)

Width 2.2
