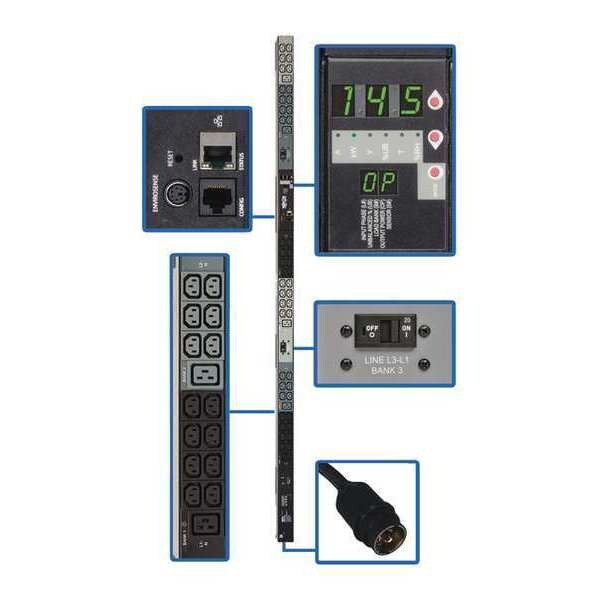

PDU, 3-Ph, Monitored, 14.5kW, 42C13, 6C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Ph,Monitored,14.5kW,42C13,6C19,0U
graingerSKU: , mscSKU: , zoro_no: G5179189, mongo_id: 65bbe84622d7a989a98e78aa

Web Price

$1,398.74 / each

Qty

Product Details

Circuit Breaker Yes

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 3.05m

Country of Origin (subject to change) China

Current Measurement Accuracy (Amps) +/-1%

Depth 3.3

Features Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting

Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Front Panel LCD Display Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)

Front Panel LEDs Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)

Height 70

Housing Material Metal

Hz_ 50/60 Hz

Includes Mounting Brackets

Input Cord Length (ft.) 10

Input Phase 3-Phase

Input Voltage 230 V AC

Material of Construction Metal

Max. Amps 35A

Maximum Input Amps 35

Metered Yes

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

NEMA Plug Configuration HUBBELL CS8365C 50A

NEMA Receptacle Configuration (42) C13; (6) C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 48

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32 to 122F (0C to 50C)

Output Capacity Details 14.5kW (240V), 13.9kW (230V), 13.3kW (220V), 12.6kW (208V), 12.1kW (200V) total capacity; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

Output Nominal Voltage 200; 208; 240

Output Receptacles (42) C13; (6) C19

Output Voltage 208 V AC

Overload Protection 3 20A circuit breakers, 1 per outlet bank

Package Contents Monitored PDU3VN10H50 36-Outlets 12.6kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual

Package Includes PDU3VN10H50 14.5kW 200/208/240V 3-Phase Monitored PDU, 10 ft. cord;(42) C13/C14 plug-lock inserts;(6) C19/C20 plug-lock inserts;Spare mounting buttons;(2) Conventional mounting brackets;Configuration cable for network interface;Button/bracket-mounting hardware;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type HUBBELL CS8365C 50A

PDU Type Monitored

Phase 3

Plug/Connector Type Hubbell CS8365C

Power Indicator Yes

Power Measurement Accuracy (Watts) +/-1%

Power Rating (Watt) 12.60 kW

Product Name Monitored PDU3VN10H50 36-Outlets 12.6kW PDU

Product Series Monitored

Product Type PDU

Protection Type Overload Protection

Receptacle Detail 30 x IEC 60320 C13, 6 x IEC 60320 C19

Recommended Electrical Service 50A 208/240V with Hubbell CS8365C outlet

Relative Humidity 5-95% non condensing

Reported Load Segments Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (20A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)

Standards UL60950-1, CAN60950-1, NOM, Class A, TAA Compliant

Storage Temperature Range -30ÃÂ°C to +60ÃÂ°C (-22ÃÂ°F to +140ÃÂ°F)

Switches Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement

Type Monitored

Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.860

Voltage 200/208/240V

Voltage Measurement Accuracy (Volts) +/-1%

Watts 14.5kW (240V), 13.9kW (230V), 13.3kW (220V), 12.6kW (208V), 12.1kW (200V)

Width 2.2
