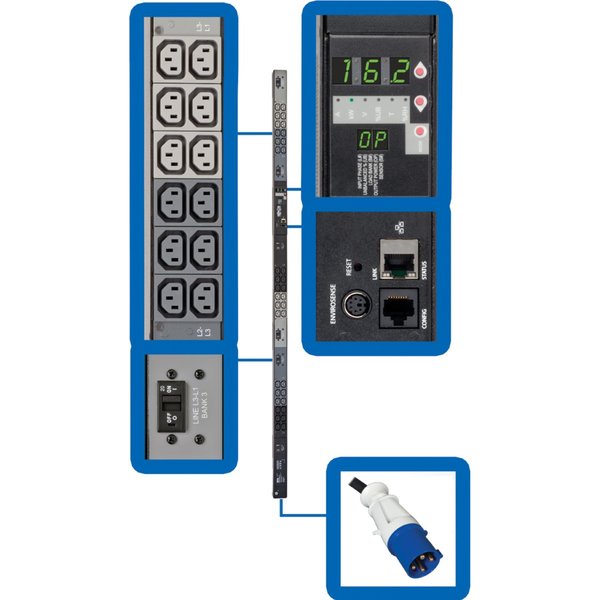

PDU, 3-Ph, Monitored, 18.7kW, 36 C13, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Ph,Monitored,18.7kW,36 C13,0U

Web Price

$2,661.24 / each

Qty

Product Details

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 1.83m

Country of Origin (subject to change) China

Current Measurement Accuracy (Amps) +/-1%

Depth 2.5

Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

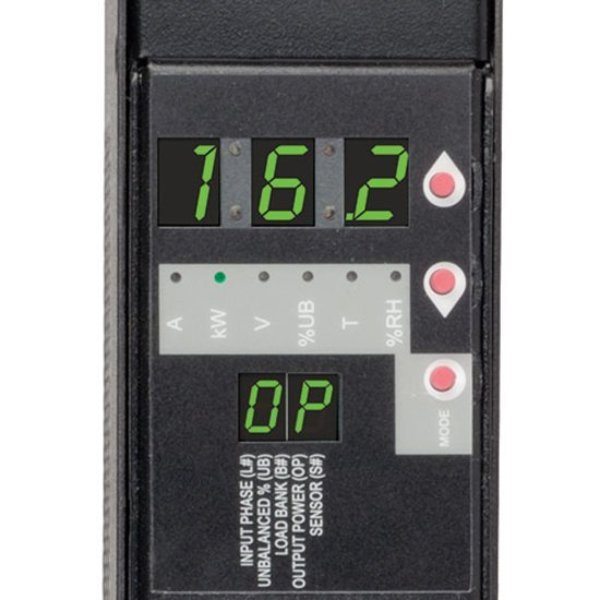

Front Panel LCD Display Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)

Front Panel LEDs Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B6) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)

Height 70

Housing Material Metal

Input Cord Length (ft.) 6

Input Current 45 A

Input Phase 3-Phase

Input Voltage 230 V AC

Input Voltage Range 200 V AC - 240 V AC

Material of Construction Metal

Max. Amps 45A

Maximum Input Amps 45

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

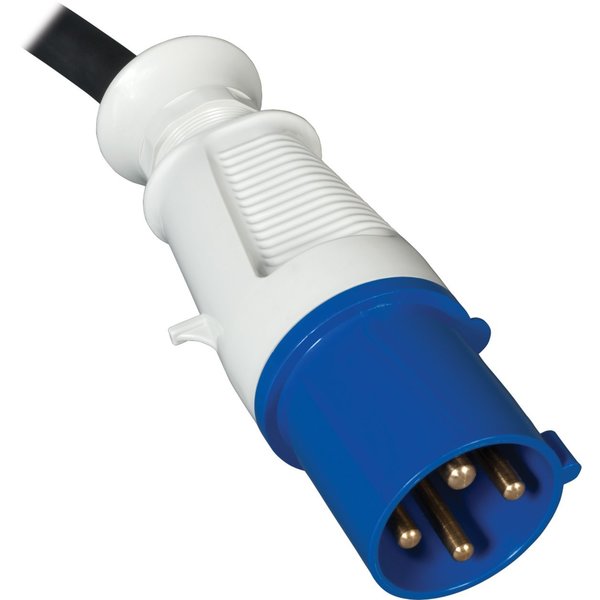

NEMA Plug Configuration IEC-309 60A BLUE (3P+E)

NEMA Receptacle Configuration C13

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 36

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32 to 122F (0C to 50C)

Output Capacity Details 18.7kW (240V), 17.9kW (230V), 17.1 (220V), 16.2 (208V), 15.6kW (200V) total capacity; 26A max per output phase (L1-L2, L2-L3, L3-L1); 20A max per breakered outlet bank; 12A max per C13 outlet

Output Nominal Voltage 200; 208; 240

Output Receptacles (36) C13

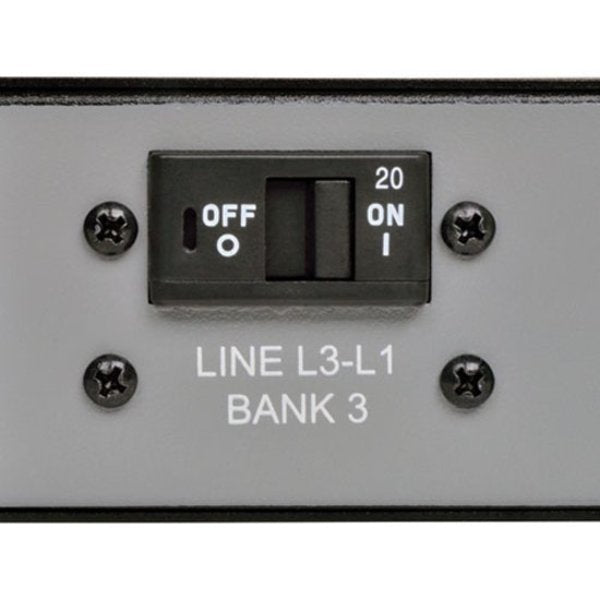

Overload Protection 6 20A circuit breakers, 1 per outlet bank

Package Contents Monitored Rackmount PDU with Pre-Installed Mounting Buttons , 36x C13/C14 Plug-lock cable retention sleeves, Spare installation buttons (2 9mm / 4 6mm), Rack mounting brackets, Owner's manual

Package Includes Monitored rackmount PDU with pre-installed mounting buttons;36 C13/C14 Plug-lock cable retention sleeves;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type IEC-309 60A BLUE (3P+E)

PDU Type Monitored

Plug/Connector Type IEC 60309 60A BLUE (3P+E)

Power Indicator Yes

Power Measurement Accuracy (Watts) +/-1%

Power Rating (Watt) 18.70 kW

Product Name Monitored Rackmount PDU with Pre-Installed Mounting Buttons

Product Series Monitored

Product Type PDU

Rack Height 0U

Receptacle Detail 36 x IEC 60320 C13

Recommended Electrical Service 60A 208/240V with IEC309 60A Blue (3P+E) outlet

Relative Humidity 5-95% non condensing

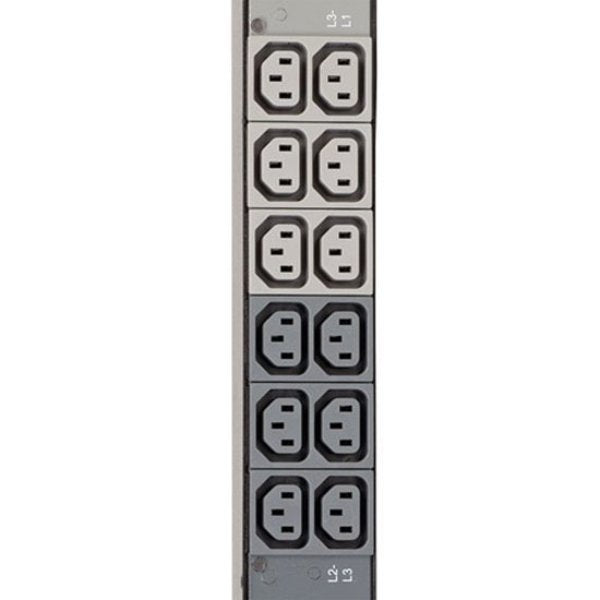

Reported Load Segments Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1 & B4); L2-L3 feeds dark-gray outlets (B2 & B5); L3-L1 feeds light-gray outlets (B3 & B6)

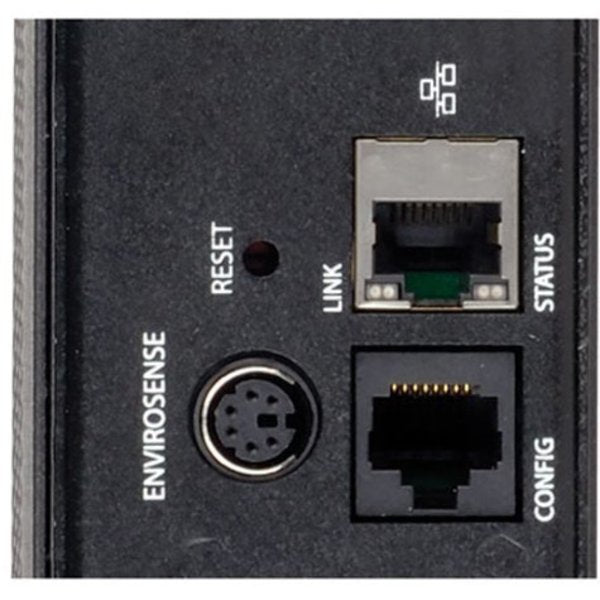

SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, SSH and SNMP management systems

Storage Temperature Range 5 to 140F (-15C to 60C)

Switches Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement

Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.490

Voltage 200/208/240V

Voltage Measurement Accuracy (Volts) +/-1%

Width 2.2
