PDU, 3-Ph, Monitored, 8.6kW, C13/19, 5-15R, 0U
Web Price
$1,169.99
/ each
Product Details

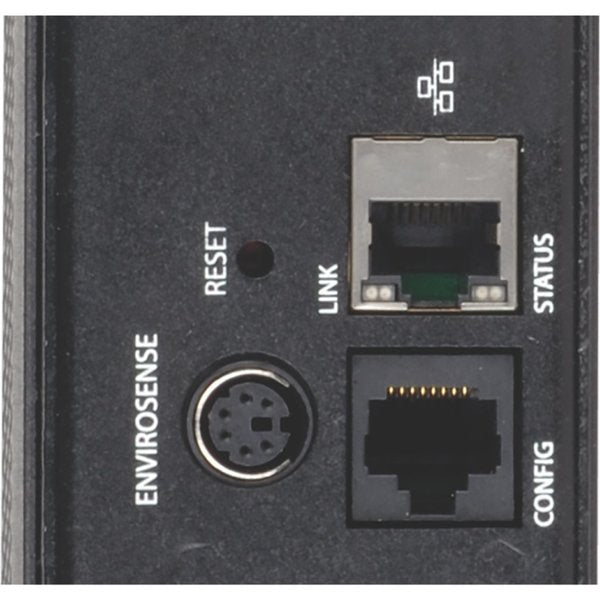

RJ45-to-DB9 configuration/console Access cable
0.91m
China
+/-1%
3.3
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
50/60 Hz
50 / 60 Hz

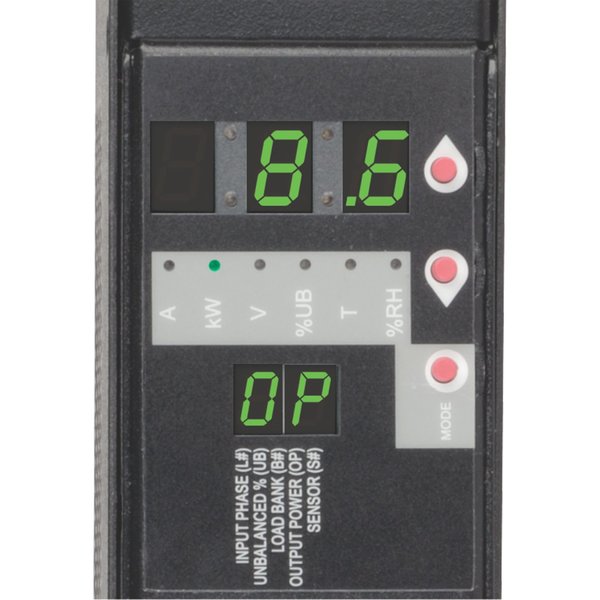

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); 3 additional multi-color LEDs offer power availability information for each pair of output load banks (Bank 1&4 / Bank 2&5 / Bank 3&6): GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)
70
Metal
Cord length specifications are nominal and subject to manufacturing variance
3
3-Phase
230 V AC
Metal
24A
24
Rack-mountable
Vertical
Vertical Rackmount/0U

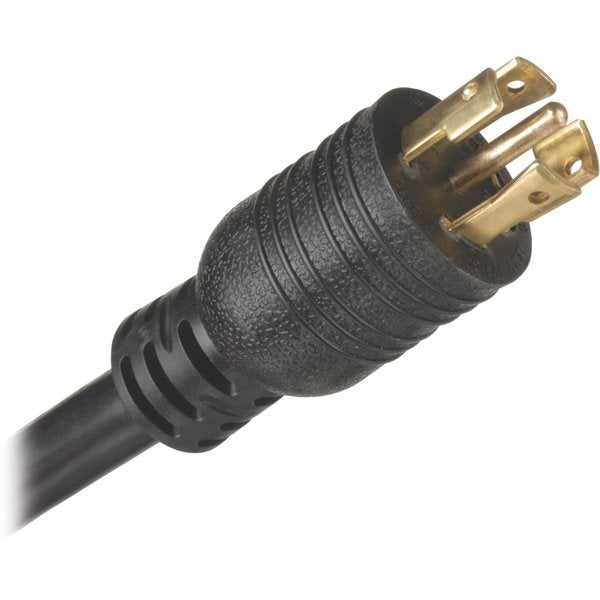

NEMA L21-30P
(3) NEMA 5-15/20R; (36) NEMA C13; (6) C19
10 Mbps; 100 Mbps (Fast Ethernet)
45
0-10,000
8.6kW (208V) total capacity; 13.9A max per output phase (L1-L2, L2-L3, L3-L1), 12A max per C13 outlet
120; 208
5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output
(3) 5-15/20R; (36) C13; (6) C19
208 V AC

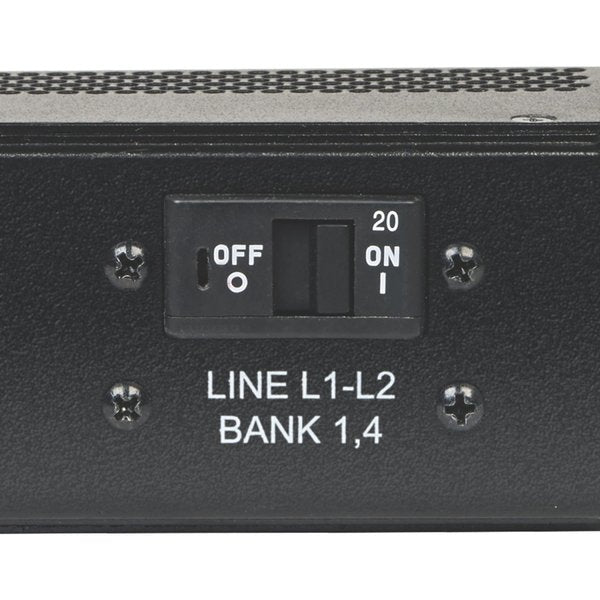

3 20A circuit breakers, one per output load bank
Monitored PDU3VN3L2130 36-Outlets 8.6kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual

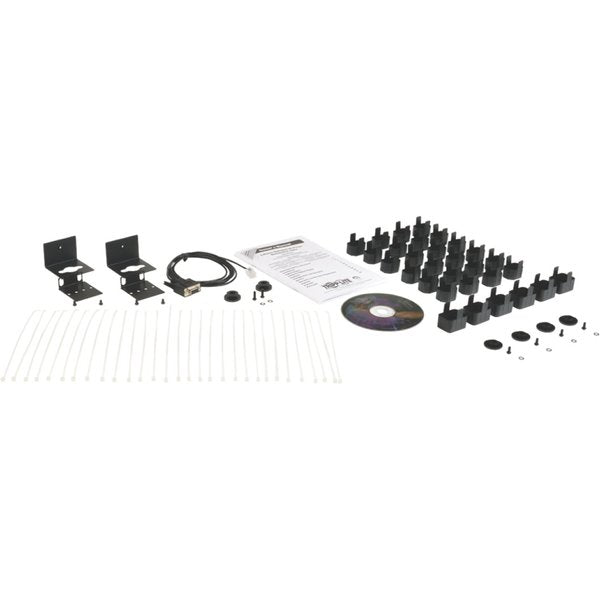

PDU3VN3L2130 8.6kW 208/120V 3-Phase Monitored PDU, 3 ft. cord;(36) C13/C14 plug-lock inserts;(6) C19/C20 plug-lock inserts;(3) NEMA 5-15/20R plug-lock inserts;Spare mounting buttons;(2) Conventional mounting brackets;Configuration cable for network interface;Button/bracket-mounting hardware;Owner's manual
1
Vertical (0U)
NEMA L21-30P
Monitored
Three Phase
NEMA L21-30P
Yes
+/-1%
8600 W
Monitored PDU3VN3L2130 45-Outlets 8.6kW PDU
Monitored
PDU
Overload Protection
6 x IEC 60320 C19, 3 x NEMA 5-15/20R, 36 x IEC 60320 C13
30A 208V with L21-30R outlet
5-95% non condensing

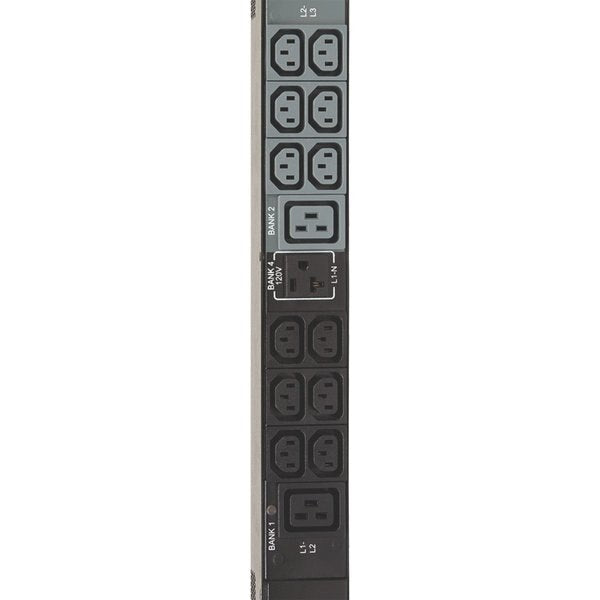

Supports monitoring of input current per phase (L1, L2, L3) and output current for each output load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets (B1); L2-L3 feeds dark-gray C13/C19 outlets (B2); L3-L1 feeds light-gray C13/C19 outlets (B3); L1-N feeds black 5-20R outlet (B4); L2-N feeds dark-gray 5-20R outlet (B5); L3-N feeds light-gray 5-20R outlet (B6)
-15ðC to +50ðC (+5ðF to +122ðF)
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement
70.000 x 2.170 x 2.520
208V
+/-1%
2.2
