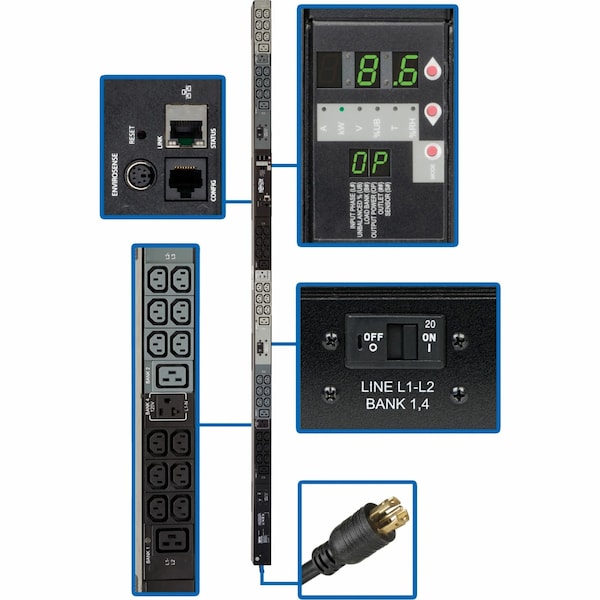

PDU, 3-Ph, Monitored, 8.6kW, C13/19, 5-15R, 0U
Web Price
$1,218.74
/ each
Product Details

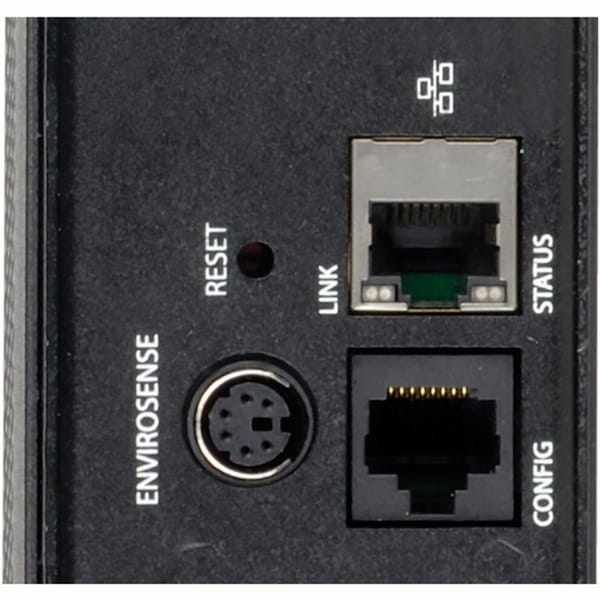

RJ45-to-DB9 configuration/console Access cable
1.83m
Taiwan, Province of China
+/-1%
2.5
Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
50/60 Hz
50 / 60 Hz

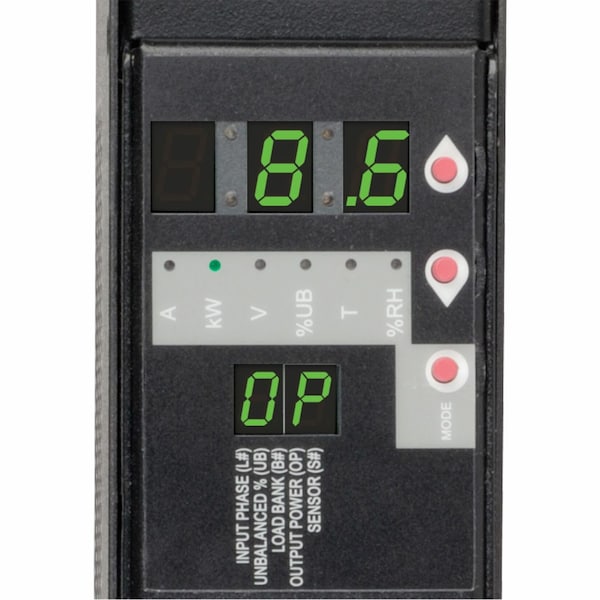

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); 3 additional multi-color LEDs offer power availability information for each pair of output load banks (Bank 1&4 / Bank 2&5 / Bank 3&6): GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)
70
Metal
6
24 A
3-Phase
230 V AC
Metal
24A
24
Vertical
Vertical Rackmount/0U

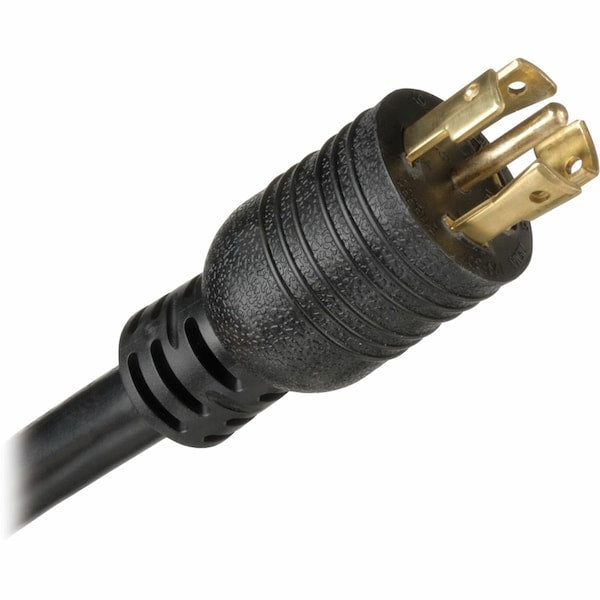

NEMA L21-30P
(3) NEMA 5-15/20R; (36) NEMA C13; (6) C19
Yes
10 Mbps; 100 Mbps (Fast Ethernet)
45
0-10,000
32 to 122F (0C to 50C)
8.6kW (208V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet
120; 208
5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output
(3) 5-15/20R; (36) C13; (6) C19
208 V AC, 120 V AC

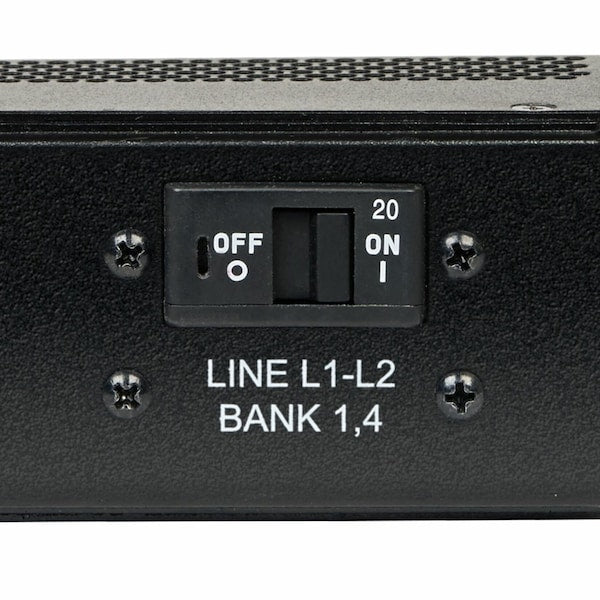

3 20A circuit breakers, one per output load bank

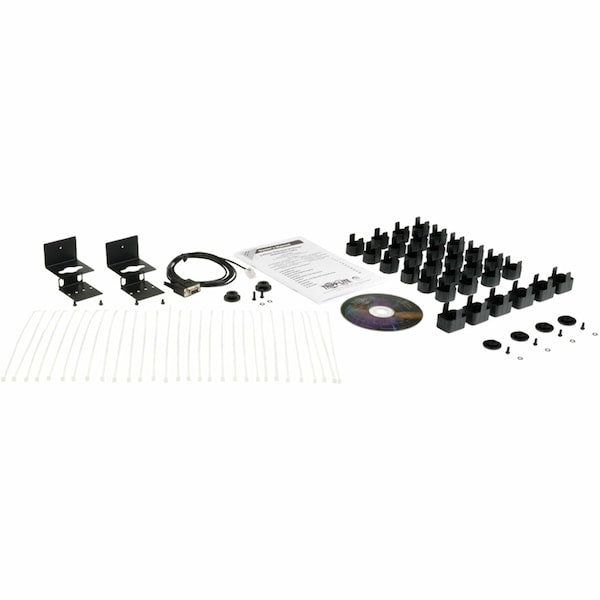

Monitored PDU3VN6L2130 45-Outlets PDU, Spare Installation Buttons (2 9mm / 4 6mm), Rack Mounting Brackets, Owner's Manual
Monitored rackmount PDU with pre-installed mounting buttons;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual
1
Vertical (0U)
NEMA L21-30P
Monitored
1 x NEMA L21-30P
Yes
+/-1%
8600 W
Monitored PDU3VN6L2130 45-Outlets PDU
Monitored
PDU
Overload Protection
0U
3 x NEMA 5-15/20R, 36 x IEC 60320 C13, 6 x IEC 60320 C19
30A 208V with L21-30R outlet
5-95% non condensing

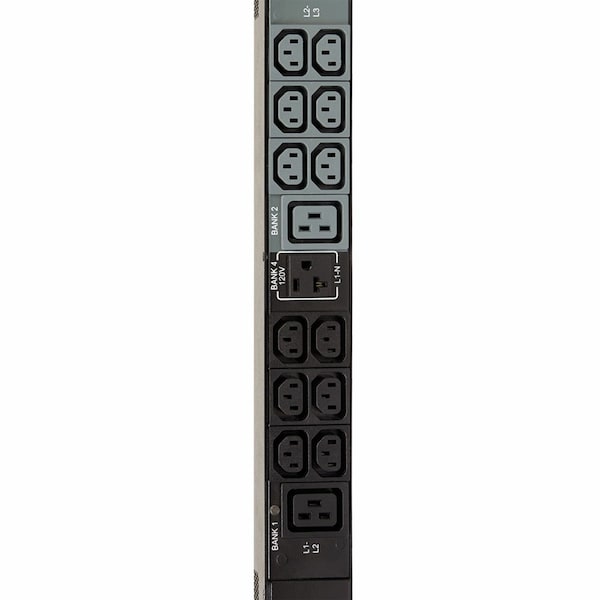

Supports monitoring of input current per phase (L1, L2, L3) and output current for each output load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets (B1); L2-L3 feeds dark-gray C13/C19 outlets (B2); L3-L1 feeds light-gray C13/C19 outlets (B3); L1-N feeds black 5-20R outlet (B4); L2-N feeds dark-gray 5-20R outlet (B5); L3-N feeds light-gray 5-20R outlet (B6)
-30ðC to +60ðC (-22ðF to +140ðF)
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement
70.000 x 2.170 x 2.520
208V
+/-1%
2.2
