PDU, 3-Ph, Switched, 11.5kW, 24 C13, 6 C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Ph,Switched,11.5kW,24 C13,6 C19,0U

Web Price

$1,543.74 / each

Product Details

Certifications & Standards TAA, Tested to UL60950-1, CE (EN 60950-1), CE / FCC Class A (Emissions)

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 1.83m

Country of Origin (subject to change) Taiwan, Province of China

Current Measurement Accuracy (Amps) +/-1%

Customized Load Management Receptacles Each outlet is individually controllable via remote interface

Depth 2.9

Features Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting

Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

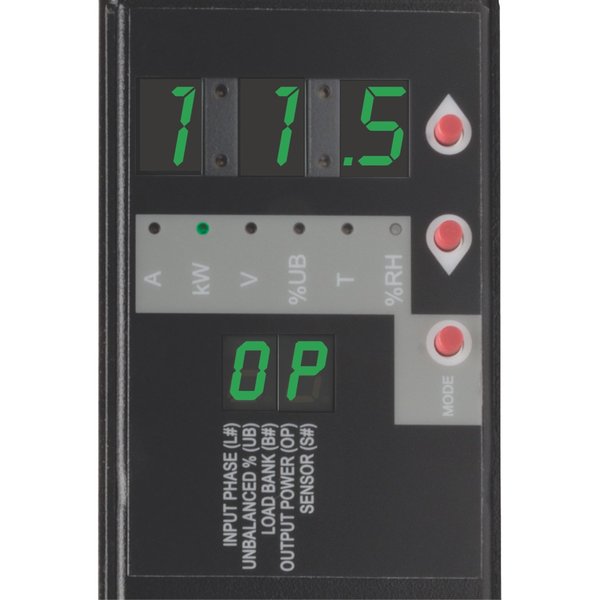

Front Panel LCD Display Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)

Front Panel LEDs Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)

Green Certification or Other Recognition RoHS

Green Environmental Attribute Yes

Height 70

High Availability PDU Features Auto Load Shedding

Housing Material Metal

Hz_ 50/60 Hz

Includes PDU3XVS6G20 30-Outlets PDU24 C13/C14 and 6 C19/C20 Plug-Lock Cable Retention InsertsSpare Installation Buttons (2 9mm / 4 6mm)Mounting BracketsConfiguration CableOwner's Manual

Input Cord Length (ft.) 6

Input Current 16 A

Input Phase 3-Phase

Input Voltage Range 380 V AC - 415 V AC

Material of Construction Metal

Max. Amps 16A

Maximum Input Amps 16

Metered Yes

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

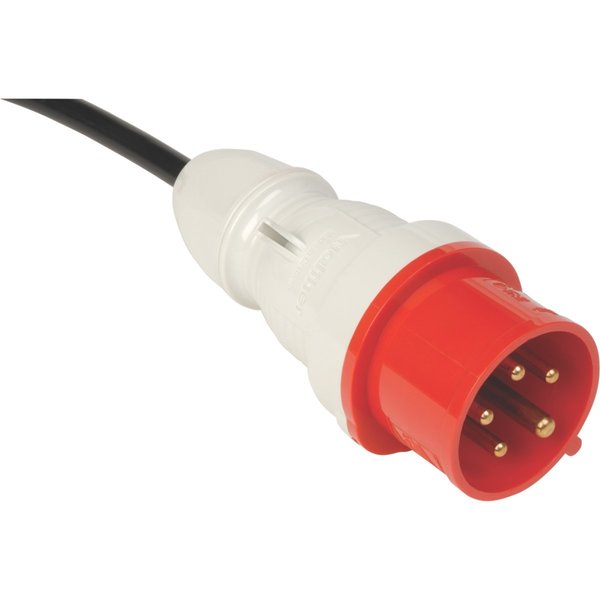

NEMA Plug Configuration IEC-309 16/20A RED (3P+N+E)

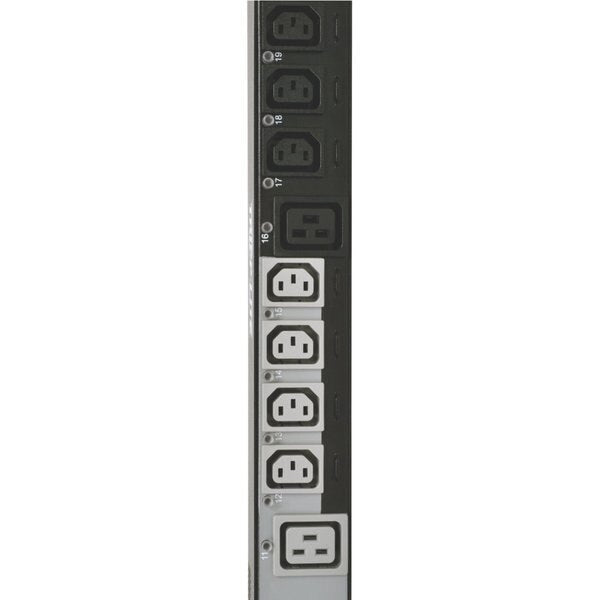

NEMA Receptacle Configuration (24) C13; (6) C19

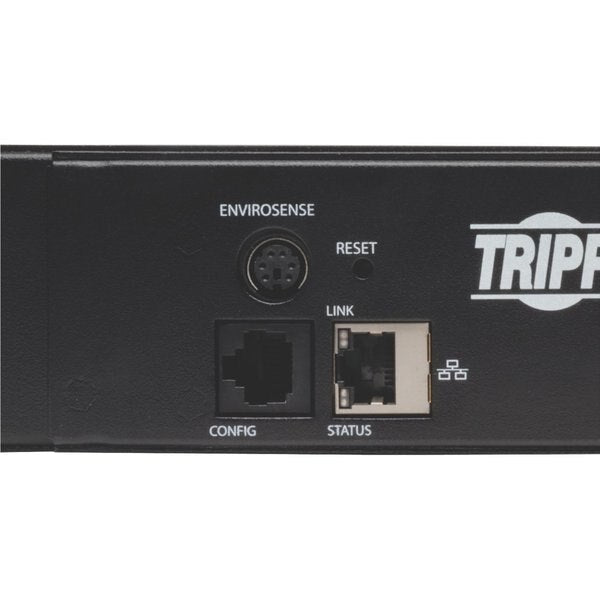

Network (RJ-45) Yes

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 30

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32ÃÂ° to 122ÃÂ°F (0ÃÂ° to 50ÃÂ°C)

Output Capacity Details 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V), 10kW (360/208V) total capacity; 16A max per output phase (L1-L2, L2-L3, L3-L1); 16A max per C19 outlet; 12A max (10A CE) max per C13 outlet

Output Nominal Voltage 208-240V

Output Receptacles (24) C13; (6) C19

Output Voltage 380 V AC, 400 V AC, 415 V AC

Package Contents PDU3XVS6G20 30-Outlets PDU, 24 C13/C14 and 6 C19/C20 Plug-Lock Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual

Package Includes Switched, vertical rackmount PDU with pre-installed mounting buttons;24 C13/C14 and 6 C19/C20 Plug-lock cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Input Voltage 360; 380; 400; 415

PDU Plug Type IEC-309 16/20A RED (3P+N+E)

PDU Type Switched

Phase 3

Plug/Connector Type IEC 60309 16/20A RED (3P+N+E)

Power Indicator Yes

Power Measurement Accuracy (Watts) +/-1%

Power Rating (Watt) 11.50 kW

Product Certifications EN 60950-1; CSA (Canada); NOM (Mexico); UL 60950-1

Product Compliance CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)

Product Name PDU3XVS6G20 30-Outlets PDU

Product Type PDU

Rack Height 0U

Receptacle Detail 6 x IEC 60320 C19, 24 x IEC 60320 C13

Recommended Electrical Service Three-phase 16A 360-415V service

Relative Humidity 5% to 95% non-condensing

Reported Load Segments Reports input current per phase (L1, L2 and L3) and current for each output load bank (16A balanced max per B1, B2 and B3); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1); L2-N feeds dark-gray outlets (B2); L3-N feeds light-gray outlets (B3)

Standards TAATested to UL60950-1CE (EN 60950-1)CE / FCC Class A (Emissions)

Storage Temperature Range -22ÃÂ° to 140ÃÂ°F (-30ÃÂ° to 60ÃÂ°C)

Switches Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement

TAA Compliant Yes

Type Switched

Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.860

Voltage 400/230V

Voltage Measurement Accuracy (Volts) +/-1%

Watts 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V)

Width 2.2
