PDU, 3-Ph, Switched, 16.2kW, 6 C13, 12 C19, 0U
Web Price
$2,668.74
/ each
Product Details
UL 60950-1, Class A (Emissions), NOM
Yes
RJ45-to-DB9 configuration/console Access cable
1.83m
China
+/-1%
Each outlet is individually controllable via remote interface
2.5
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
50/60 Hz
50 / 60 Hz

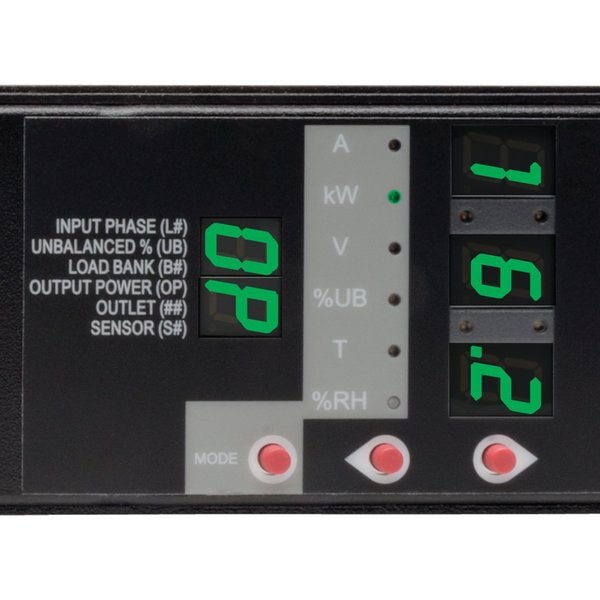

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
RoHS
Yes
70
Metal
Switched Rackmount PDU with Pre-Installed Mounting Buttons6 x C13/C14 Plug-Lock Cable Retention Sleeves12 x C19/C20 Plug-Lock Cable Retention SleevesSpare Installation ButtonsRack Mounting BracketsOwner's Manual
6
45 A
3-Phase
230 V AC
Metal
45A
45
Rack-mountable
Vertical
Vertical Rackmount/0U
Rack-mountable

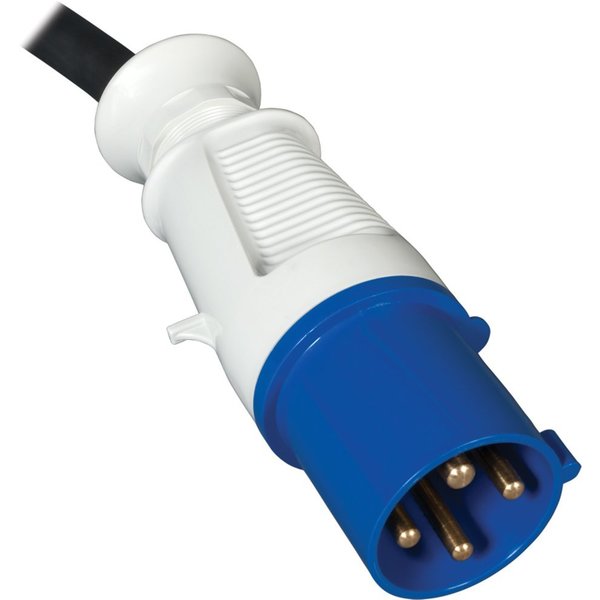

IEC-309 60A BLUE (3P+E)
(6) C13; (12) C19
Yes
10 Mbps; 100 Mbps (Fast Ethernet)
18
0-10,000
16.2kW (208V) total capacity; 26A max per output phase (L1-L2, L2-L3, L3-L1); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
208
(6) C13; (12) C19
220 V AC

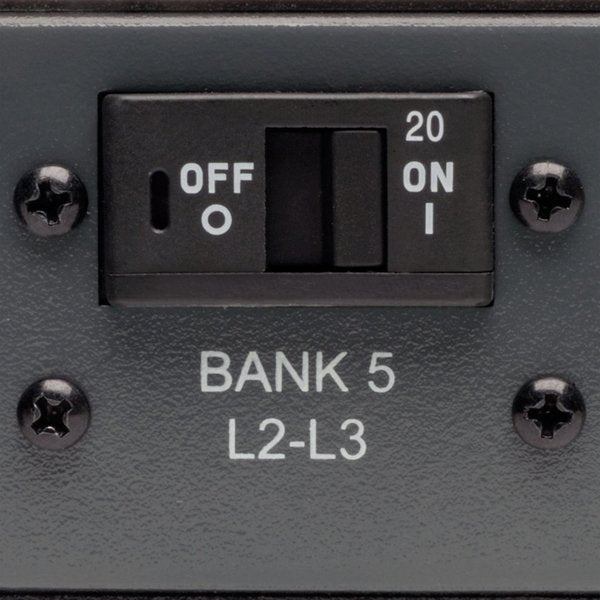

6 20A circuit breakers, 1 per outlet bank

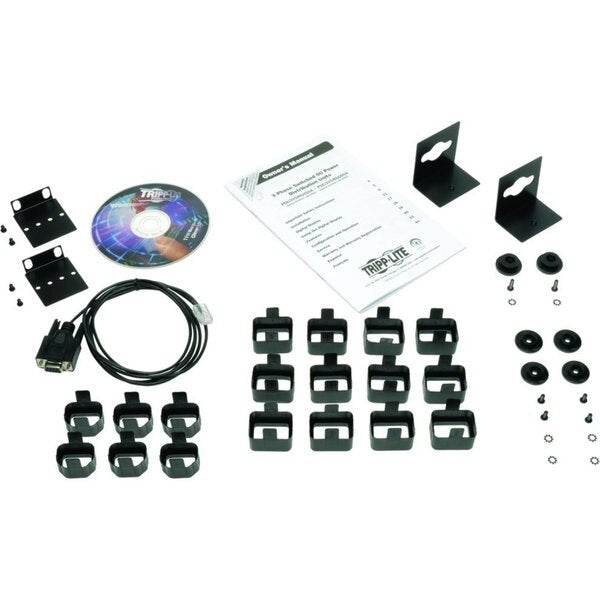

Switched Rackmount PDU with Pre-Installed Mounting Buttons, 6 x C13/C14 Plug-Lock Cable Retention Sleeves, 12 x C19/C20 Plug-Lock Cable Retention Sleeves, Spare Installation Buttons, Rack Mounting Brackets, Owner's Manual
Switched rackmount PDU with pre-installed mounting buttons;6 C13/C14 and 12 C19/C20 Plug-lock cable retention sleeves;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual
1
Vertical (0U)
IEC-309 60A BLUE (3P+E)
Switched
IEC 60309 60A
+/-1%
16.20 kW
Switched Rackmount PDU with Pre-Installed Mounting Buttons
PDU
Overload Protection
0U
12 x IEC 60320 C19, 6 x IEC 60320 C13
60A 208V with IEC309 60A Blue (3P+E) outlet
5-95% non condensing

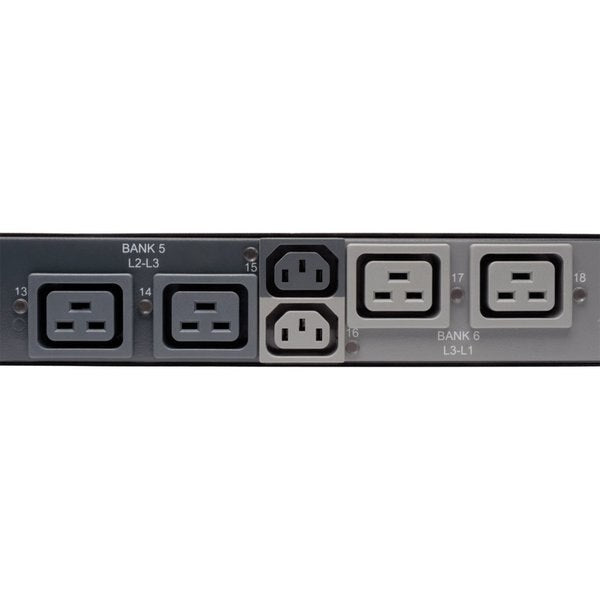

Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-18); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1, B4); L2-L3 feeds dark-gray outlets (B2, B5); L3-L1 feeds light-gray outlets (B3, B6)

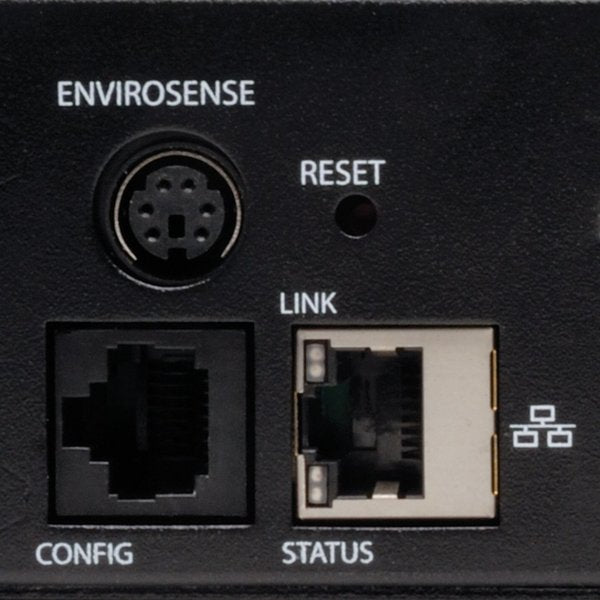

Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, SSH and SNMP management systems
UL 60950-1Class A (Emissions)NOM
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement
70.000 x 2.170 x 2.490
208V
+/-1%
2.2
