PDU, 3-Ph, Switched, 17.3kW, 12 C13, 12C19, 0U
Web Price
$2,284.99
/ each
Product Details
UL60950-1, CSA22.2, NOM, FCC Class A
RJ45-to-DB9 configuration/console Access cable
1.83m
China
+/-1%
2.5

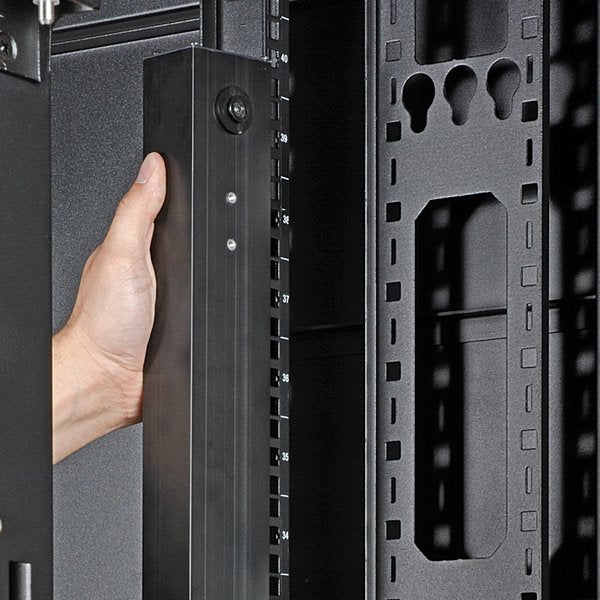

Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
50/60 Hz
50 / 60 Hz

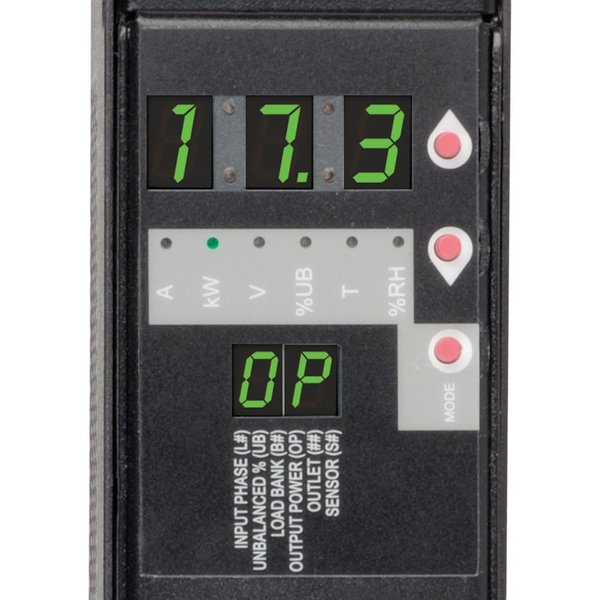

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
RoHS
Yes
70
Metal
Switched PDU3XVSR6L2230 24-Outlets PDUPlug-Lock Cable Retention InsertsSpare Installation Buttons (2 9mm / 4 6mm)Mounting BracketsConfiguration CableOwner's Manual
6
24 A
3-Phase
Metal
24A
24
Rack-mountable
Vertical
Vertical Rackmount/0U
Rack-mountable

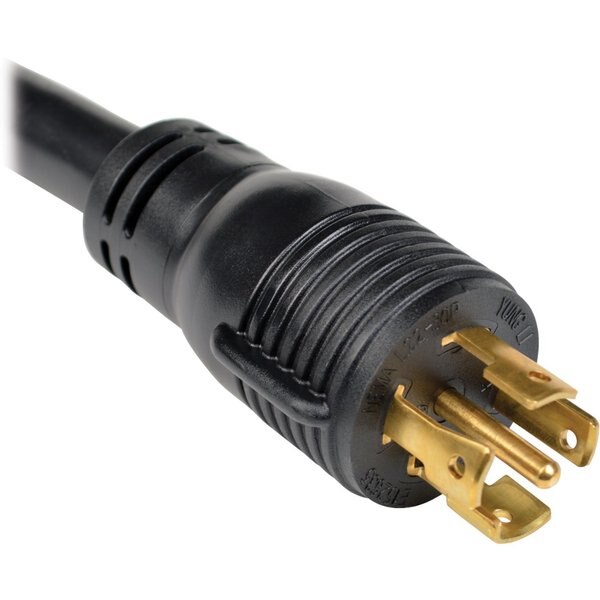

NEMA L22-30P
(12) C13; (12) C19
10 Mbps; 100 Mbps (Fast Ethernet)
24
0-10,000
32 to 122F (0C to 50C)
17.3kW (415/240V), 16.6kW (400/230V), 15.8kW (380/220V) total capacity; 24A max per output phase (L1, L2, L3); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
240 (415V input)
(12) C13; (12) C19
240 V AC

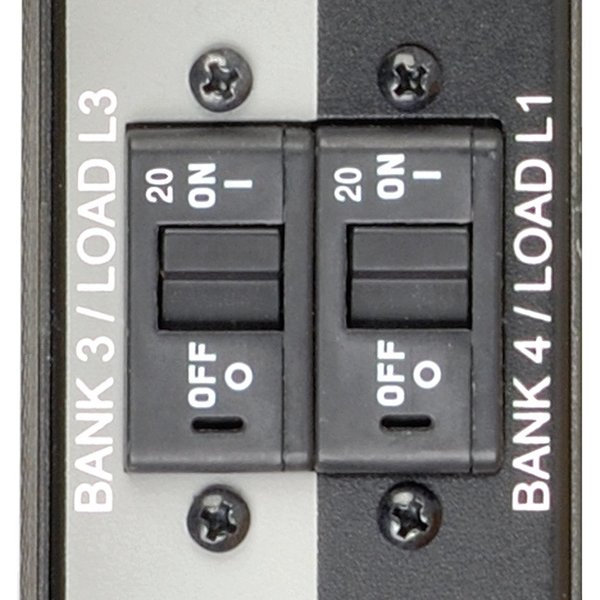

6 20A circuit breakers, one per output load bank

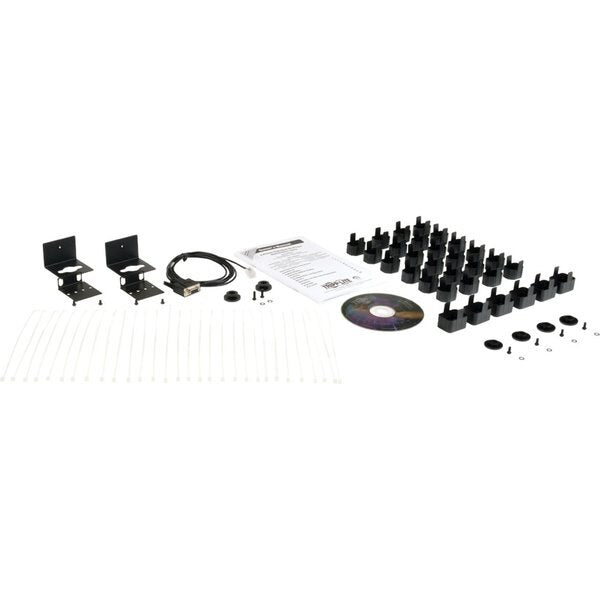

Switched PDU3XVSR6L2230 24-Outlets PDU, Plug-Lock Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual
Switched, vertical rackmount PDU with pre-installed mounting buttons;12 C13/C14 and 12 C19/C20 Plug-lock cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual
1
Vertical (0U)
NEMA L22-30P
Switched
NEMA L22-30P
+/-1%
17.30 kW
Switched PDU3XVSR6L2230 24-Outlets PDU
Switched
PDU
Overload Protection
0U
12 x IEC 60320 C19, 12 x IEC 60320 C13
30A 415/240V with NEMA L22-30R outlet
5-95% non condensing

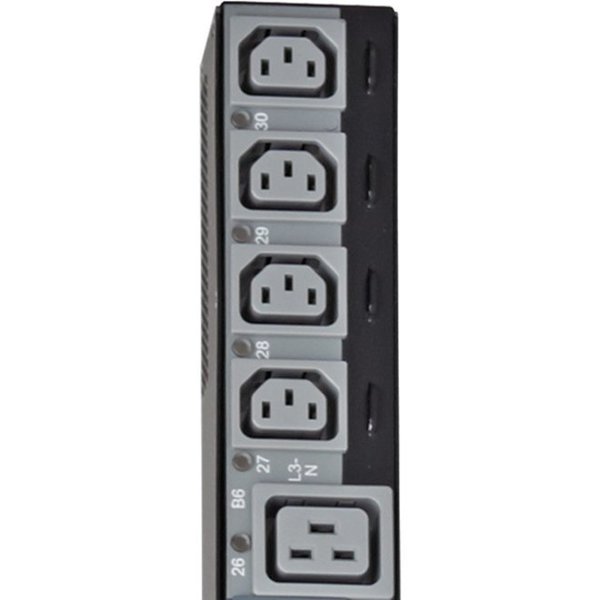

Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-24); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1, B4); L2-N feeds dark-gray outlets (B2, B5); L3-N feeds light-gray outlets (B3, B6)
UL60950-1CSA22.2NOMFCC Class A
5 to 140F (-15 to 60C)
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement
70.000 x 2.170 x 2.520
415/240V
+/-1%
2.2
