PDU, 3-Ph, Switched, 28.8kW, 24 C13, 6 C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Ph,Switched,28.8kW,24 C13,6 C19,0U

Web Price

$1,957.49 / each

Qty

Product Details

Certifications & Standards UL60950-1, CSA22.2, NOM, FCC Class A

Circuit Breaker Yes

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 6 ft

Country of Origin (subject to change) China

Current Measurement Accuracy (Amps) +/-1%

Depth 2.5

Features Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting

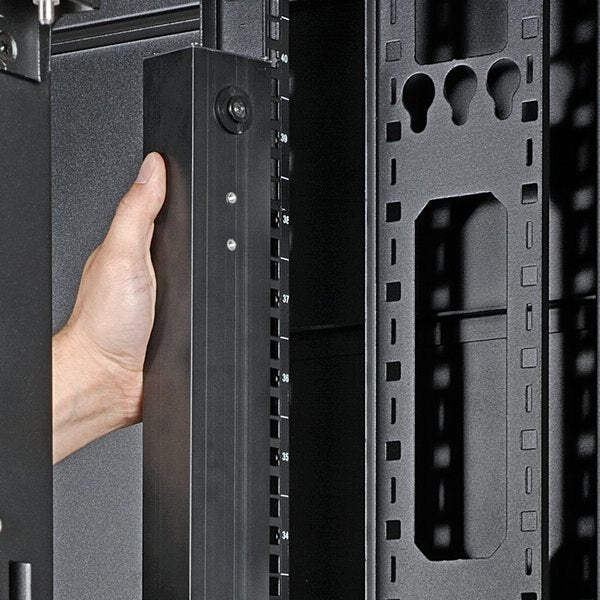

Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

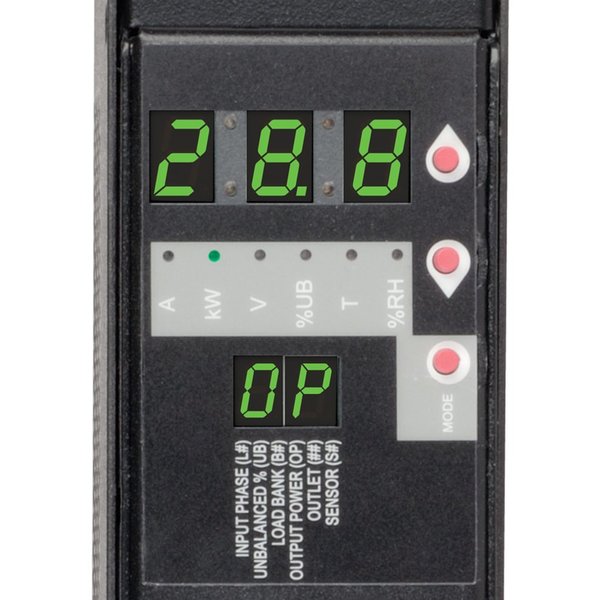

Front Panel LCD Display Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)

Front Panel LEDs Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)

Height 70

Housing Material Metal

Hz_ 50/60 Hz

Includes Mounting Brackets

Input Current 40 A

Input Phase 3-Phase

Input Voltage Range 380 V AC - 415 V AC

Material of Construction Metal

Max. Amps 40A

Maximum Input Amps 40

Metered Yes

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

NEMA Plug Configuration Hardwire

NEMA Receptacle Configuration (24) C13; (6) C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 30

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32 to 122F (0-50C)

Output Capacity Details 28.8kW (415/240V), 27.7kW (400/230V), 26.3kW (380/220V) total capacity; 40A max per output phase (L1, L2, L3); 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max (10A CE) per C13 outlet

Output Nominal Voltage 220 (380V input); 230 (400V input); 240 (415V input)

Output Receptacles (24) C13; (6) C19

Output Voltage 240 V AC

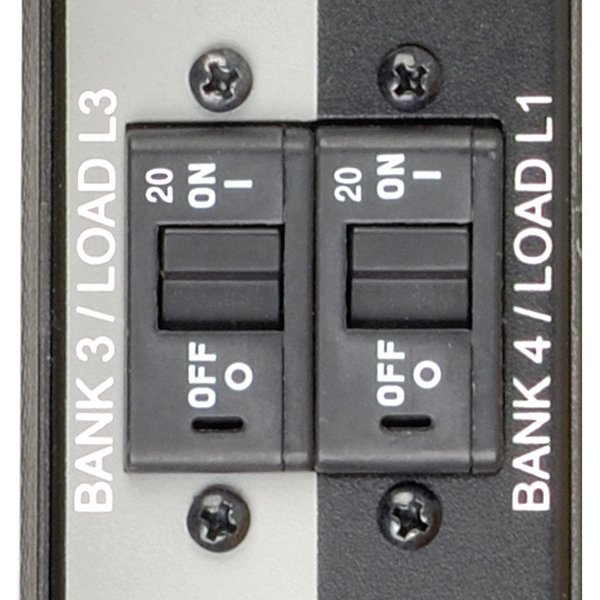

Overload Protection 6 20A circuit breakers, 1 per outlet bank

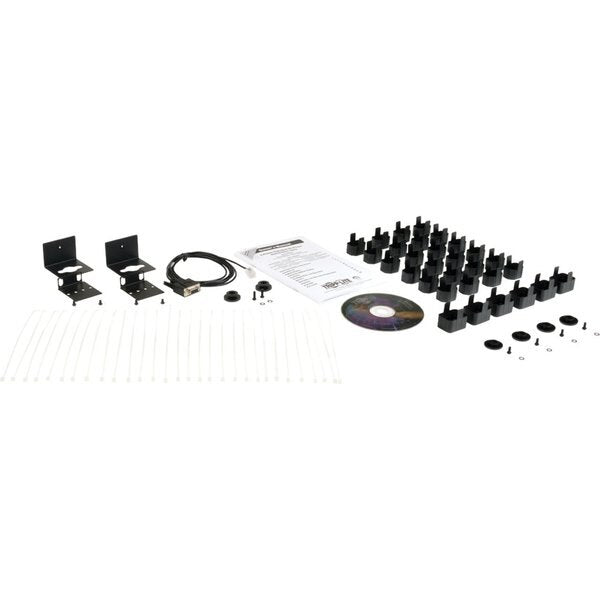

Package Contents Switched PDU3XVSRHWB 30-Outlets PDU, Plug-Lock Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual

Package Includes Switched, vertical rackmount PDU with pre-installed mounting buttons;24 C13/C14 and 6 C19/C20 Plug-lock cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type Hardwire

PDU Type Switched

Phase 3

Plug/Connector Type Hardwired

Power Indicator Yes

Power Measurement Accuracy (Watts) +/-1%

Power Rating (Watt) 28.80 kW

Product Name Switched PDU3XVSRHWB 30-Outlets PDU

Product Series Switched

Product Type PDU

Protection Type Overload Protection

Rack Height 0U

Receptacle Detail 24 x IEC 60320 C13, 6 x IEC 60320 C19

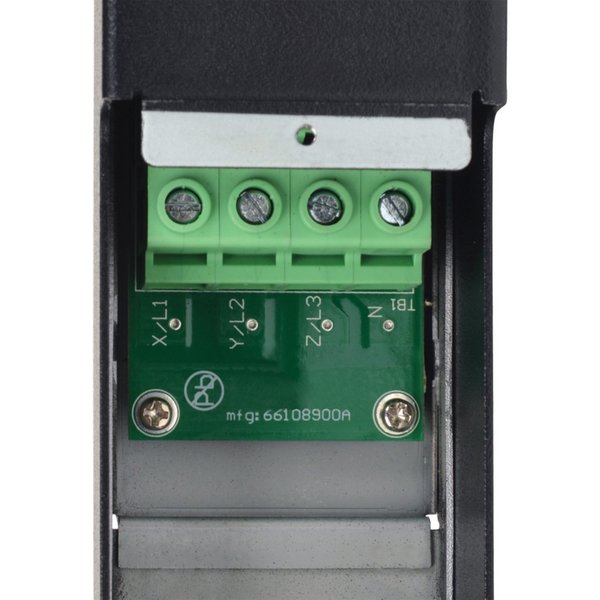

Recommended Electrical Service External circuit breaker - 3 pole, 415V rated, 50A; Wiring - 5C, #8AWG (10mm2), 75C rated minimum; Conduit - 3/4 in. (19mm) minimum, flexible

Relative Humidity 5-95% non condensing

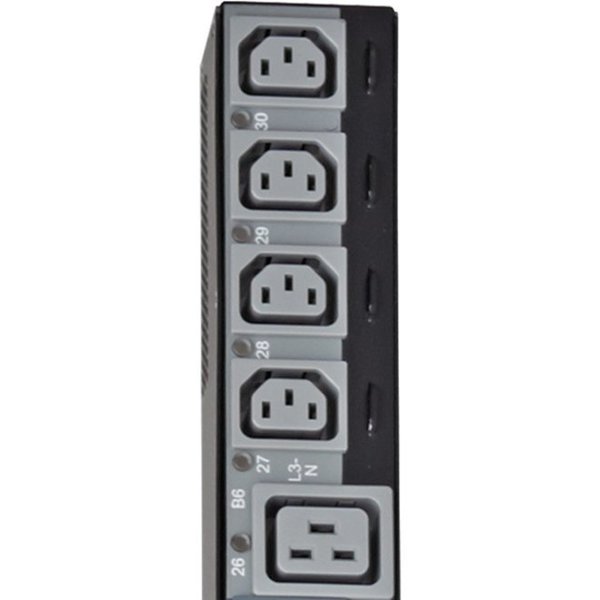

Reported Load Segments Reports input current per phase (L1, L2, L3), plus output current for each output load bank (B1-B6) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1, B4); L2-N feeds dark-gray outlets (B2, B5); L3-N feeds light-gray outlets (B3, B6)

Standards CE, UL60950-1, CSA22.2, NOM, FCC Class A, TAA Compliant

Storage Temperature Range -30ÃÂ°C to +60ÃÂ°C (-22ÃÂ°F to +140ÃÂ°F)

Switches Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement

Type Switched

Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.520

Voltage 220 to 240V

Voltage Measurement Accuracy (Volts) +/-1%

Watts 28.8kW (415/240V), 27.7kW (400/230V), 26.3kW (380/220V)

Width 2.2
