PDU, 3-Ph, Switched, 6.7kW, 24 C13, 6 C19, 0U
Web Price
$1,419.99
/ each
Product Details
UL/CAN 60950-1, Class A, NOM, TAA Compliant
Yes
RJ45-to-DB9 configuration/console Access cable
1.83m
China
+/-1%
Each outlet is individually controllable via remote interface
2.9
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
50/60 Hz
50 / 60 Hz

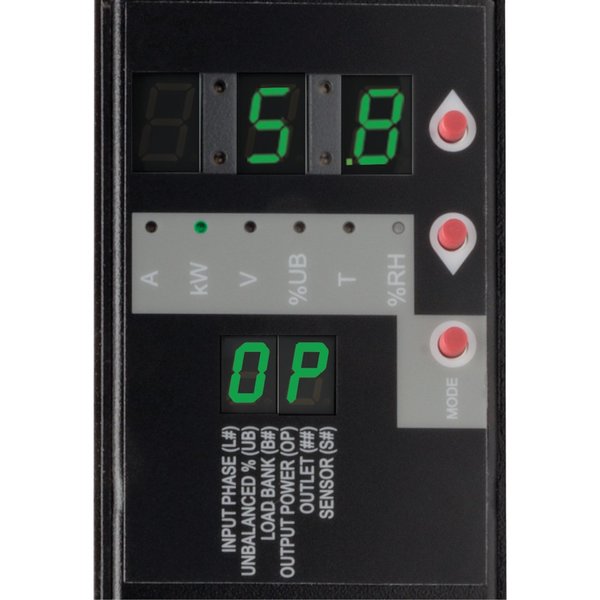

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
RoHS
Yes
70
Steel
PDU3VSR6L2120 PDUPlug Lock Cord Retention SleevesSpare Installation Buttons (2 9mm / 4 6mm)Mounting BracketsConfiguration CableOwner's Manual
6
16 A
3-Phase
230 V AC
200 V AC - 240 V AC
Steel
16A
16
Rack-mountable
Vertical
Vertical Rackmount/0U
Rack-mountable

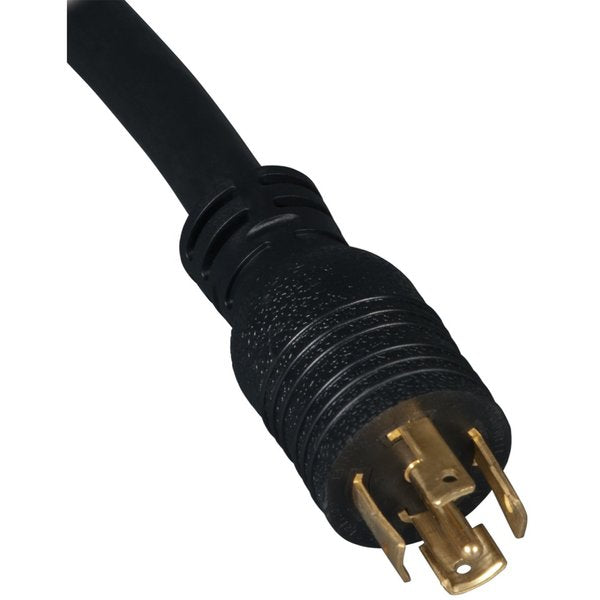

NEMA L21-20P
(24) C13; (6) C19
10 Mbps; 100 Mbps (Fast Ethernet)
30
0-10,000
32 to 122F (0 to 50C)
6.7kW (240V), 6.4kW (230V), 6.1kW (220V), 5.8kW (208V), 5.5kW (200V) total capacity / 9.2A max per output phase (L1-L2, L2-L3, L3-L1)
200; 208; 240
(24) C13; (6) C19
240 V AC, 230 V AC, 208 V AC, 200 V AC, 220 V AC

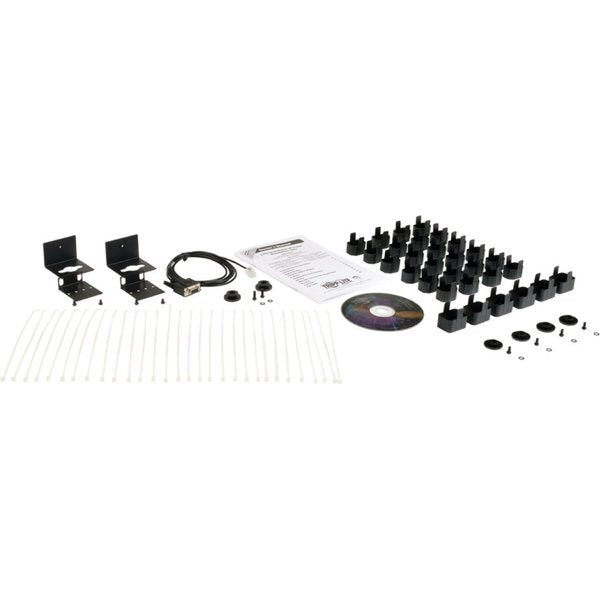

PDU3VSR6L2120 PDU, Plug Lock Cord Retention Sleeves, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual
Switched vertical rackmount PDU with pre-installed mounting buttons;Plug lock cord retention sleeves;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual
1
Vertical (0U)
NEMA L21-20P
Switched
NEMA L21-20P
+/-1%
6700 W
PDU3VSR6L2120 PDU
PDU
0U
24 x IEC 60320 C13, 6 x IEC 60320 C19
20A 208/240V with NEMA L21-20R outlet
5-95% non condensing

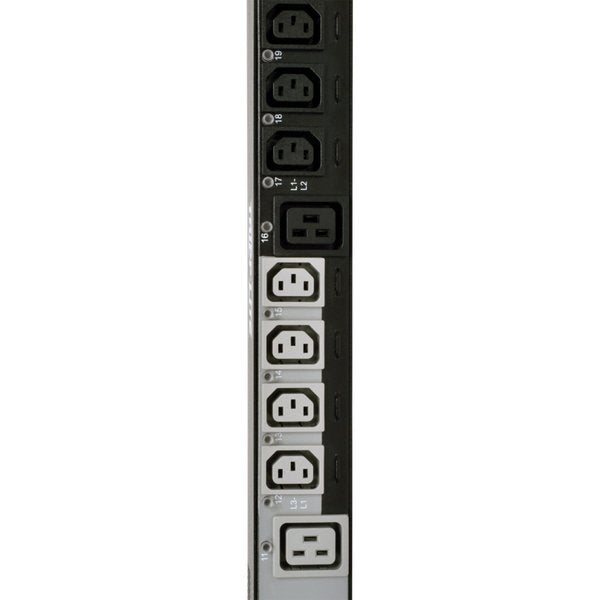

Reports input current per phase (L1, L2, L3), plus output current for each output load bank (9.24A balanced max per banks B1-B3) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)

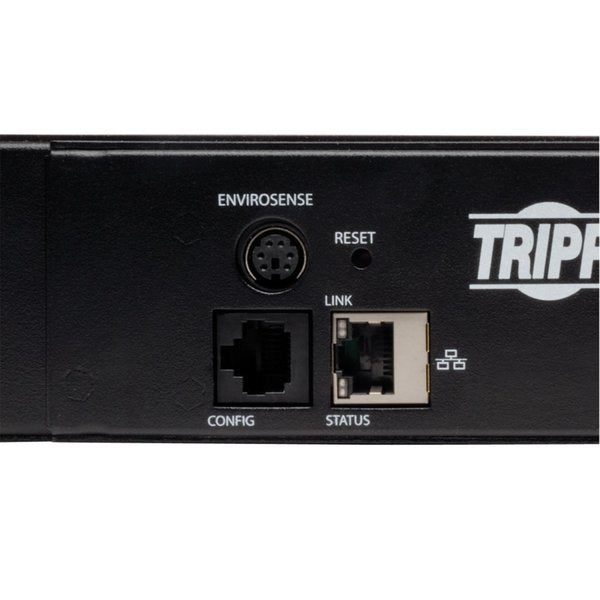

Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, SSH and SNMP management systems
UL/CAN 60950-1Class ANOMTAA Compliant
5 to 140F (-15 to 60C)
Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement
Yes
70.000 x 2.170 x 2.860
200/208/240V
+/-1%
2.2
