PDU, 3-Phase, ATS, 8.6kW, 208V, 2 L15-30P, 1U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Phase,ATS,8.6kW,208V,2 L15-30P,1U

Web Price

$2,819.99 / each

Qty

Product Details

Certifications & Standards UL/CSA 60950-1, NOM, Class A

Communications Cable DIN-to-DB9 configuration/console Access cable

Compatibility Tripp Lite PDUs: PDU3V351, PDU3V354, PDU3V354A

Cord Length 1.83m

Country of Origin (subject to change) China

Current 24 A

Depth 26

Form Factor Rack-mountable

Form Factors Supported 1U rackmount ATS module; Separate purchase 0u vertical mount PDU outlet distribution bar sold separate (3 options available)

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

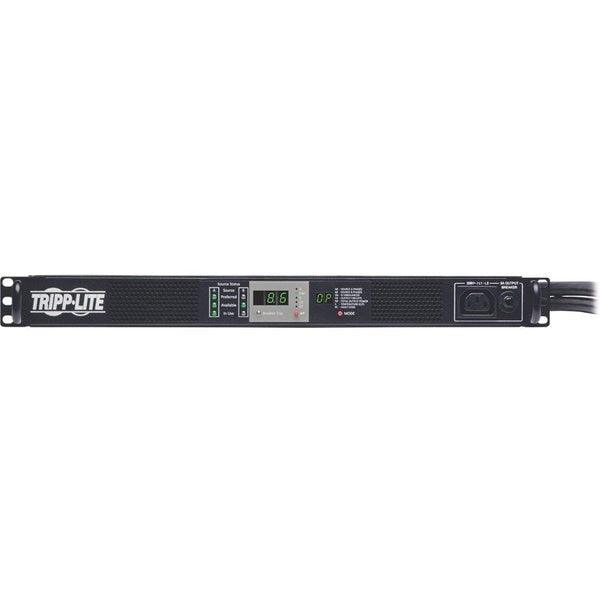

Front Panel LCD Display Large 3-character display reports data for reported values; Additional 2 character identifies the measurement value or specific location the displayed measurement applies

Front Panel LEDs Set of 6 LEDs indicate A/B input PREFERRED, AVAILABLE & IN USE status; Set of 5 LEDs label the measurement value displayed (AMPS, KW, VOLTS, HZ & POWER-FACTOR); One additional red LED reports BREAKER TRIP status

Grounding Details Included

Height 1.7

High Availability PDU Features Auto-Transfer Switching

Housing Material Steel

Input Cord Details Set of 2 input cords enable connection to separate PRIMARY and SECONDARY power sources

Input Cord Length (ft.) 6

Input Phase 3-Phase

Input Voltage 208 V AC

Load Capacity 8600 VA

Material of Construction Steel

Max. Amps 24A

Maximum Input Amps 24

Mounting Style Horizontal Rackmount/1U

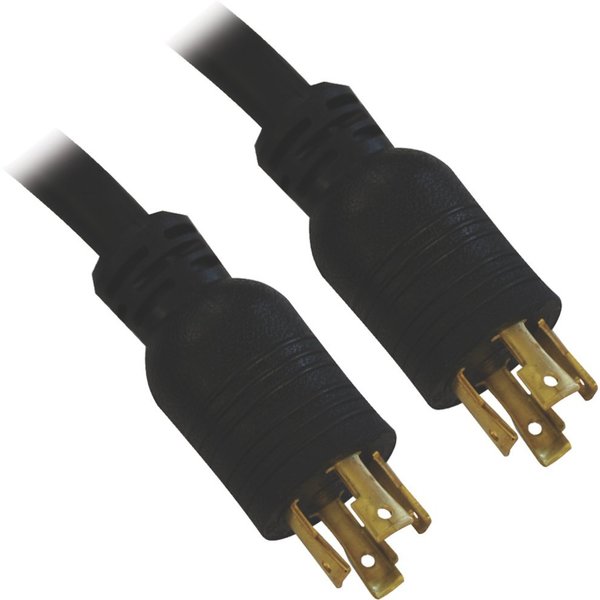

NEMA Plug Configuration (2) NEMA L15-30P

NEMA Receptacle Configuration C13; C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Operating Elevation (ft.) 0-10,000

Output Capacity Details 8.6kW (208V) total capacity; 13.9A max per output phase (L1-L2, L2-L3, L3-L1), 12A max per C13 outlet

Output Nominal Voltage 208

Output Receptacle Details 0U vertical output power distribution component is a required accessory; Order REQUIRED PDU accessory PDU3V20D354 (54 C13 outlets), PDU3V20D354A (42 C13 and 12 C19 outlets) or PDU3V20D354B (48 C13 and 6 C19 outlets)

Output Receptacles C13; C19

Output Voltage 208 V AC

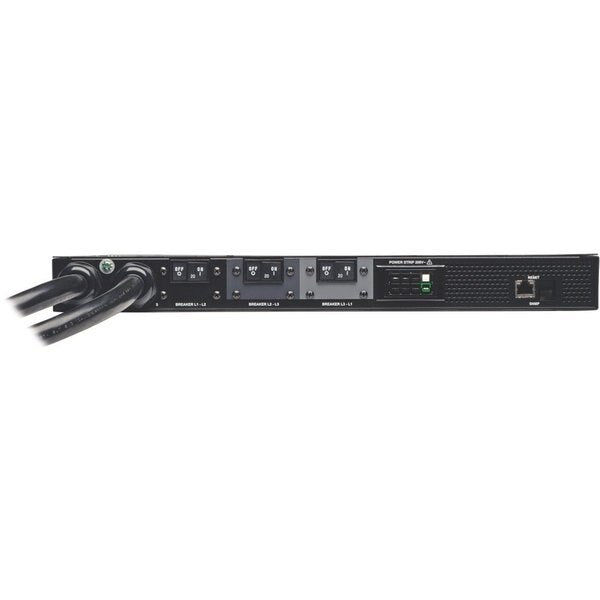

Overload Protection 3 20A double-pole breakers (1 per output phase)

Package Contents PDU330AT6L15 Automatic Transfer Switch, Grounding Lug, User Manual With Warranty Information

Package Includes Monitored PDU with ATS Support;User manual with warranty information

Package Quantity 1

PDU Form Factor Horizontal (1U)

PDU Plug Type (2) NEMA L15-30P

PDU Type Monitored; Auto-Transfer Switch

Plug/Connector Type L21-30P

Product Color Black

Product Name PDU330AT6L15 Automatic Transfer Switch

Product Type Automatic Transfer Switch

Rack Height 1U

Relative Humidity 5-95% non condensing

Reported Load Segments Supports local display of A & B line INPUT CURRENT, INPUT VOLTAGE & FREQUENCY per phase, OUTPUT CURRENT, KW, VOLTAGE & POWER FACTOR per phase, TOTAL OUTPUT POWER (kW), PHASE IMBALANCE (%), TEMPERATURE (C/F), FAULT CODE and SCROLL IP

Switches MODE and ENTER buttons enable navigation and viewing of all reported information

Unit Dimensions (hwd / in.) 1.720 x 17.000 x 25.980

Voltage 208V

Width 16.9
