PDU, 3-Phase, Switched, 10kW 3, 24 C13, 6 C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,3-Ph,Switched,10kW 3,24 C13,6 C19,0U
graingerSKU: null, mscSKU: null, zoro_no: G5178796, mongo_id: 65bbe6a93aaddbd5a904589e

Web Price

$1,998.74 / each

Product Details

Certifications & Standards UL/CAN 60950-1, Class A, NOM, TAA Compliant

Circuit Breaker Yes

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 1.83m

Country of Origin (subject to change) Taiwan, Province of China

Current Measurement Accuracy (Amps) +/-1%

Customized Load Management Receptacles Each outlet is individually controllable via remote interface

Depth 2.9

Features Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting

Form Factors Supported Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

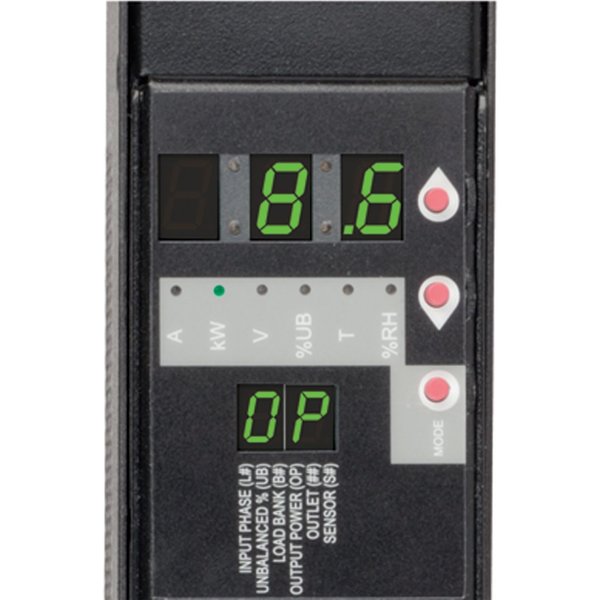

Front Panel LCD Display Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Outlet (##), Load unbalance % (UB), Output power (OP)

Front Panel LEDs Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)

Green Certification or Other Recognition RoHS

Green Environmental Attribute Yes

Height 70

Housing Material Metal

Hz_ 50/60 Hz

Includes PDU3VSR6G30 PDUPlug Lock Cord Retention SleevesSpare Installation Buttons (2 9mm / 4 6mm)Mounting BracketsConfiguration CableOwner's Manual

Input Cord Length (ft.) 6

Input Current 24 A

Input Phase 3-Phase

Input Voltage 230 V AC

Input Voltage Range 200 V AC - 240 V AC

Material of Construction Metal

Max. Amps 24A

Maximum Input Amps 24

Metered Yes

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

Mouting Style Rack-mountable

NEMA Plug Configuration IEC-309 30A BLUE (3P+E)

NEMA Receptacle Configuration (24) C13; (6) C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 30

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32 to 122F (0 to 50C)

Output Capacity Details 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V) total capacity; 13.9A max per breakered outlet bank; 12A max per C13 outlet

Output Nominal Voltage 200; 208; 240

Output Receptacles (24) C13; (6) C19

Output Voltage 208 V AC, 230 V AC, 200 V AC, 220 V AC, 240 V AC

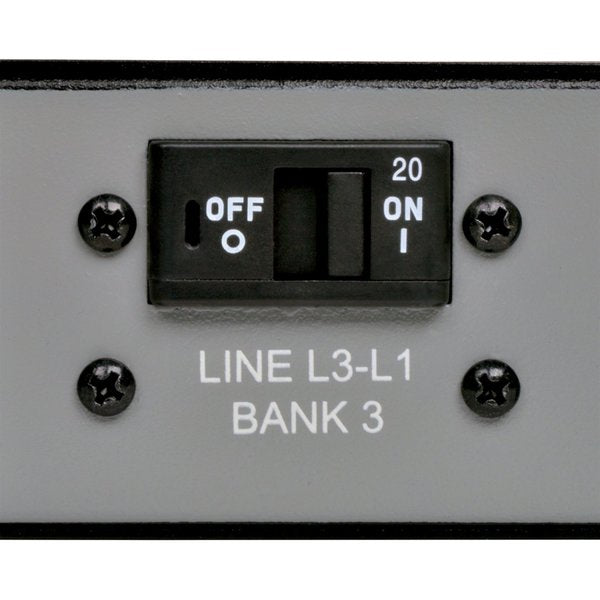

Overload Protection 3 20A circuit breakers, one per output load bank

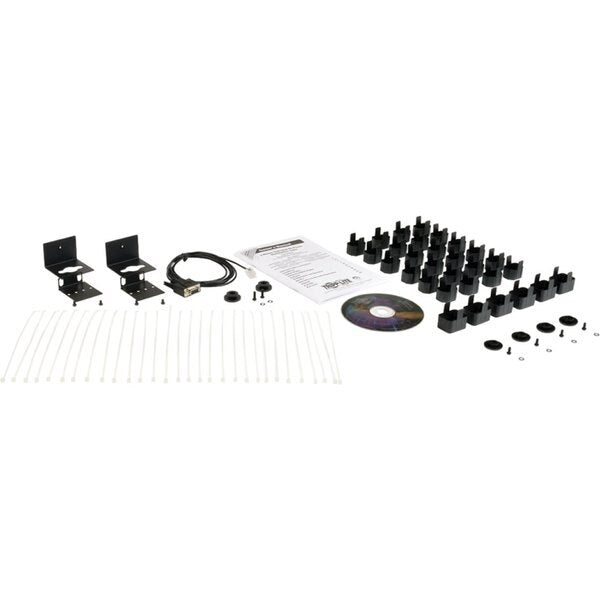

Package Contents PDU3VSR6G30 PDU, Plug Lock Cord Retention Sleeves, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual

Package Includes Switched vertical rackmount PDU with pre-installed mounting buttons;Plug lock cord retention sleeves;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

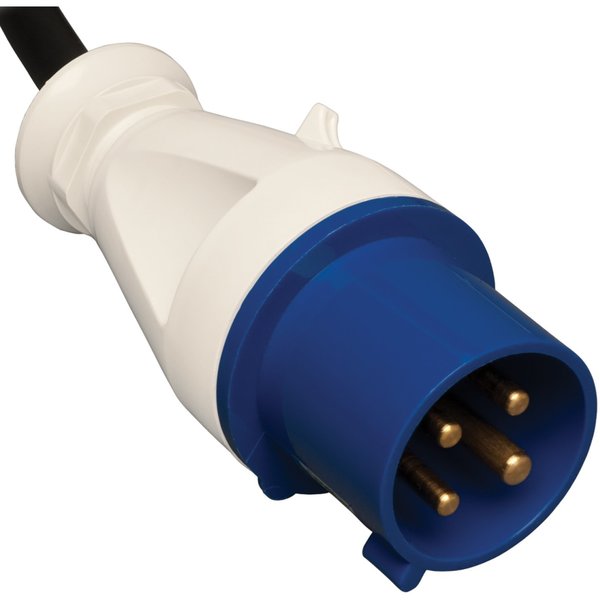

PDU Plug Type IEC-309 30A BLUE (3P+E)

PDU Type Switched

Phase 3

Plug/Connector Type IEC 60309 30A BLUE (3P+E)

Power Indicator Yes

Power Measurement Accuracy (Watts) +/-1%

Power Rating (Watt) 10 kW

Product Name PDU3VSR6G30 PDU

Product Type PDU

Protection Type Overload Protection

Rack Height 0U

Receptacle Detail 24 x IEC 60320 C13, 6 x IEC 60320 C19

Recommended Electrical Service 30A 208/240V with IEC309 30A Blue (3P+E) outlet

Relative Humidity 5-95% non condensing

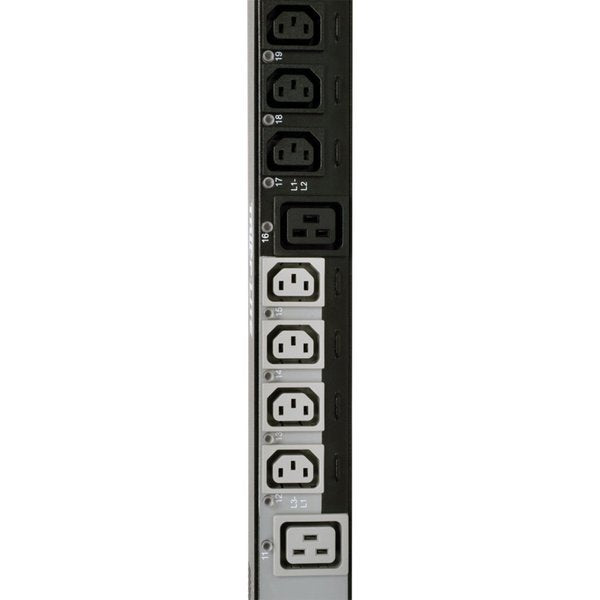

Reported Load Segments Reports input current per phase (L1, L2, L3), plus output current for each output load bank (13.9A balanced max per banks B1-B3) and individual output receptacle (1-30); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)

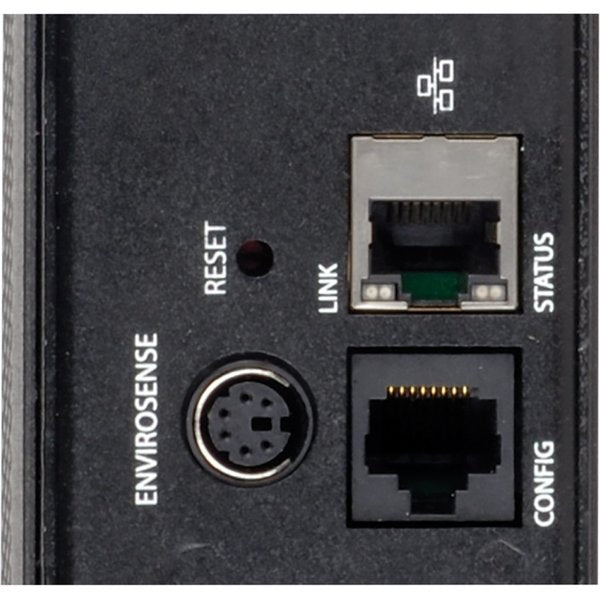

SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, SSH and SNMP management systems

Standards UL/CAN 60950-1Class ANOMTAA Compliant

Storage Temperature Range -30ÃÂ°C to +60ÃÂ°C (-22ÃÂ°F to +140ÃÂ°F)

Switches Set of UP/DOWN arrow buttons scroll through available Input, Bank, Power, Load balance and Sensor options; Additional MODE button advances the LEDs to view the next measurement

TAA Compliant Yes

Type Switched

Unit Dimensions (hwd / in.) 70.000 x 2.170 x 2.860

Voltage 208/240V

Voltage Measurement Accuracy (Volts) +/-1%

Watts 10kW (240V), 9.6kW (230V), 9.1kW (220V), 8.6kW (208V), 8.3kW (200V)

Width 2.2
