Home / PDU, 30A, 24 Outlet, 15 ft, Black

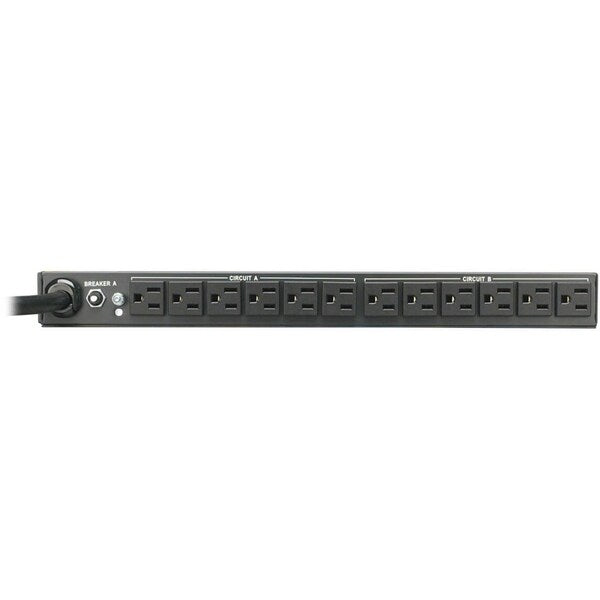

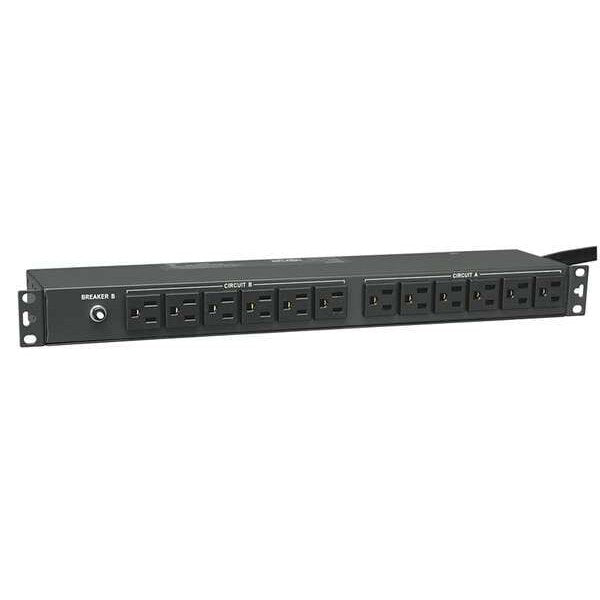

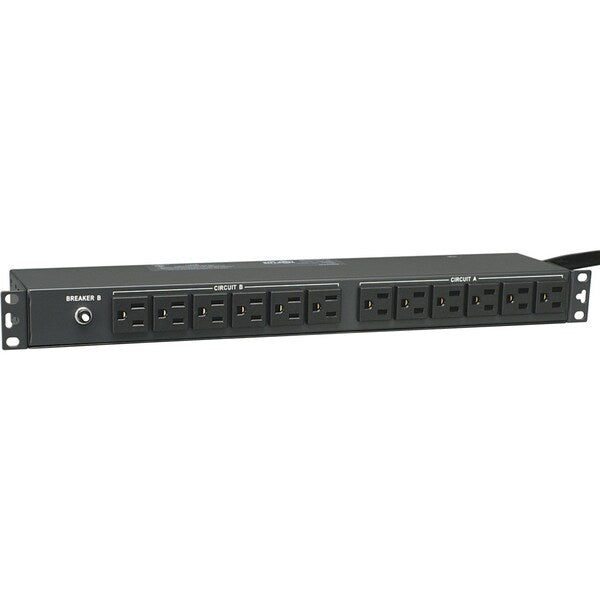

PDU, 30A, 24 Outlet, 15 ft, Black
PDU, 30A, 24 Outlet, 15 ft, Black
PDU, 30A, 24 Outlet, 15 ft, Black
PDU, 30A, 24 Outlet, 15 ft, Black

PDU, 30A, 24 Outlet, 15 ft, Black

  • Tripp Lite
  • Power Distribution Unit, Built-In Circuit Breaker Yes, Color Black, Cord Length 15 ft, Number of Outlets 24, Receptacle Type NEMA 5-15R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units 1, Mounting Location Vertical Rack, Plug Type NEMA L5-30P, Features Detachable Mounting Flanges, Housing Material Metal, Includes Mounting Hardware, Manufacturers Warranty Length 5 yr, Maximum Current 24 A, Maximum Operating Temperature 104 Degrees F

    graingerSKU: 6RHW2, mscSKU: , zoro_no: G3670292, mongo_id: 65bbe89c22d7a989a99042dc

Web Price
$577.49 / each
Qty

Product Details

Corded AC power distribution unit with 24 amp capacity and 24 AC receptacles (12 front / 12 rear) - Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or 0U formats - Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure - Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment - Attractive all-metal housing with 12 front facing and 12 rear facing receptacles measures only 2.75 inches in depth - 24 NEMA5-15R output receptacles - 15 foot AC cord NEMA L5-30 plug connection - Switch-free design prevents the potential for accidental shutoff of connected loads - 24 amp total electrical capacity with two 15A circuit breakers - 120V AC, 50/60Hz electrical compatibility
Yes
cUL, UR
Yes
Black
4.57m
China
Detachable Mounting Flanges
1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
50/60 Hz
50 / 60 Hz
No
Grounding lug
1 3/4 in
Metal
50/60 Hz
Mounting Hardware
15
Single-Phase
120 V AC
4 1/2 in
4 1/2 in
5 yr
Metal
30A
24 A
24
120V AC
104 Degrees F
120V AC
Non-Metered
32 Degrees F
7.5
Rack-mountable
Horizontal Rackmount/1U
Rack-mountable
NEMA L5-30P
NEMA 5-15R
1
24
0-10,000
32° to 104°F (0° to 40°C)
30.2mm
No
Distance between Front outlets = 30.2mm; Distance between Rear outlets = 30.2mm
2.88kW (120V) / 24A total capacity; 12A max per breakered load bank; 12A max per outlet
120V
(24) 5-15R
120 V AC
1 3/4 in
4 3/8 in
17 1/2 in
Two 15A breakers protect 12 outlets each
PDU2430 2.9kW Single-Phase 120V Basic PDU, Mounting Hardware, Owner's Manual
PDU2430 2.9kW Single-Phase 120V Basic PDU;Mounting hardware;Owner's manual
1
Horizontal (1U)
120
NEMA L5-30P
Basic
Single
NEMA L5-30P
1 x NEMA L5-30P
No
CAN/CSA-C22.2 No. 107.1 (Canada); UL 1778
PDU2430 2.9kW Single-Phase 120V Basic PDU
1U
1
24 x NEMA 5-15R
NEMA 5-15R
Single-phase 30A 120V service
5% to 95% non-condensing
(2) 15A Circuit Breakers, Detachable Mounting Flanges
CE, EAC, FCC Part 15 Class A, RoHS Compliant, TAA Compliant
-22° to 122°F (-30° to 50°C)
No power switch
Basic
1.750 x 17.250 x 4.500
120V
3.05kW (127V), 2.88kW (120V), 2.4kW (100V)
17 1/2 in
