Home / PDU, Monitored, 1.9kW, 120V, 24 5-15/20R, 0U

PDU, Monitored, 1.9kW, 120V, 24 5-15/20R, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,Monitored,1.9kW,120V,24 5-15/20R,0U

Web Price

$569.99 / each

Product Details

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 3.05m

Country of Origin (subject to change) Taiwan, Province of China

Depth 1.8

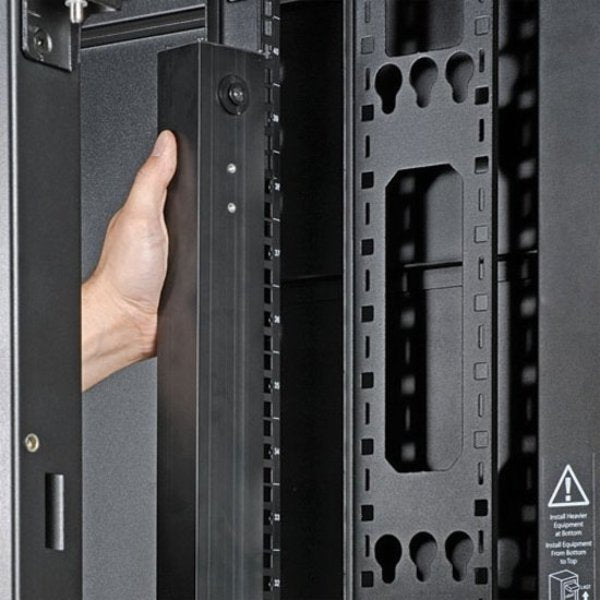

Form Factors Supported 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

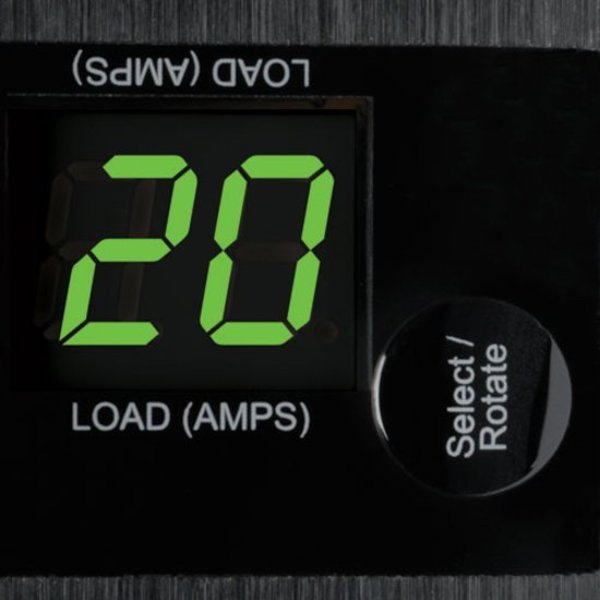

Front Panel LCD Display Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top

Height 70

Housing Material Metal

Input Cord Length (ft.) 10

Input Phase Single-Phase

Input Voltage 120 V AC

Material of Construction Metal

Max. Amps 20A

Maximum Input Amps 20

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

NEMA Plug Configuration NEMA 5-20P; NEMA L5-20P

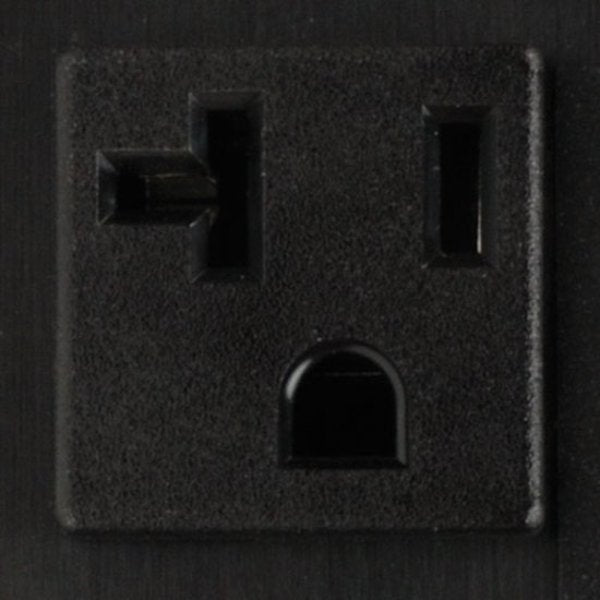

NEMA Receptacle Configuration NEMA 5-15/20R

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 24

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 0C ~ 40C (32F ~ 104F)

Output Capacity Details 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet

Output Nominal Voltage 100; 120; 127

Output Receptacles (24) 5-15/20R

Output Voltage 120 V AC

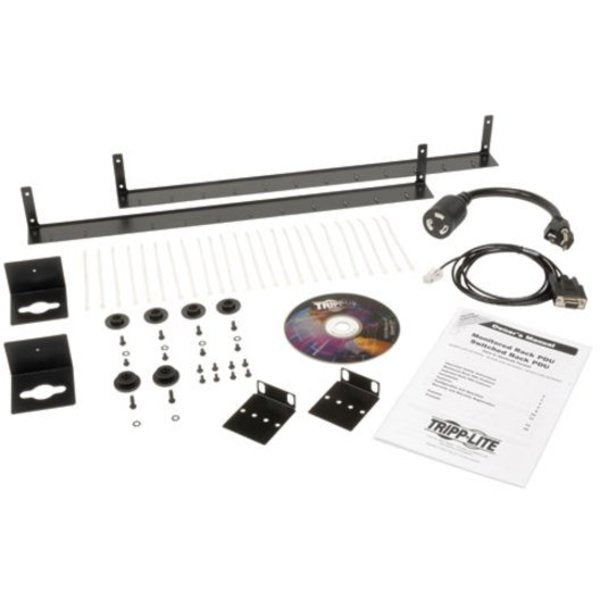

Package Contents PDUMNV20 PDU Monitored 120V 20A 24 Outlet, Plug Retention Plates, Rack Mount Brackets, Owner's Manual, NEMA L5-20R to NEMA 5-15/20P Adapter

Package Includes Rackmount PDU;Plug retention plates;Rack mounting brackets;Additional button mounts;Configuration cable;Owner's manual;L5-20R to 5-20P adapter

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type NEMA 5-20P; NEMA L5-20P

PDU Type Monitored

Plug/Connector Type NEMA 5-20P, NEMA L5-20P

Product Name PDUMNV20 PDU Monitored 120V 20A 24 Outlet

Product Type PDU

Protection Type Short Circuit Protection, Overload Protection

Receptacle Detail 24 x NEMA 5-15/20R

Recommended Electrical Service 20A 120V

Relative Humidity 5-95% non-condensing

SNMP Compatibility Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems

Storage Temperature Range 5 to 122F (-15 to 50C)

Switches Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees

Unit Dimensions (hwd / in.) 70.000 x 2.190 x 1.750

Voltage 120V

Width 2.2
