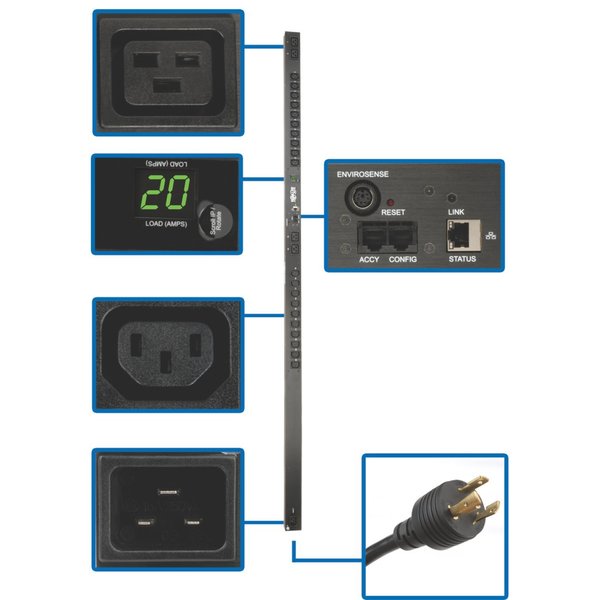

PDU, Monitored, 3.2kW-3.8kW, 20 C13, 4C19, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,Monitored,3.2kW-3.8kW,20 C13,4C19,0U

Web Price

$541.24 / each

Product Details

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 3.05m

Country of Origin (subject to change) Taiwan, Province of China

Depth 2.7

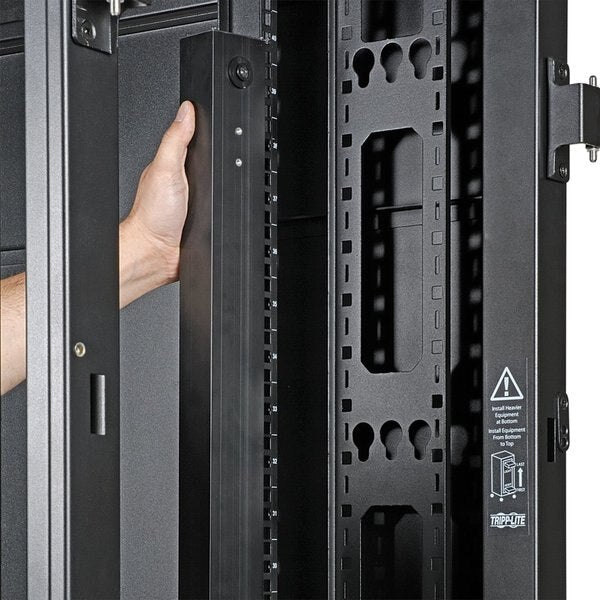

Form Factors Supported 0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

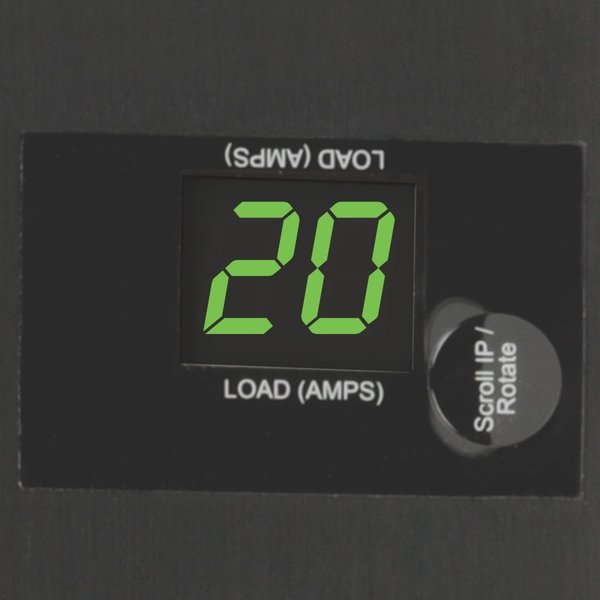

Front Panel LCD Display Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top

Height 70

Input Connection Type C20 inlet accepts included L6-20P input cable. Alternate C19 input cordsets supported.

Input Cord Length (ft.) 10

Input Phase Single-Phase

Input Voltage 230 V AC

Input Voltage Range 208 V AC - 240 V AC

Max. Amps 20A

Maximum Input Amps 20

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

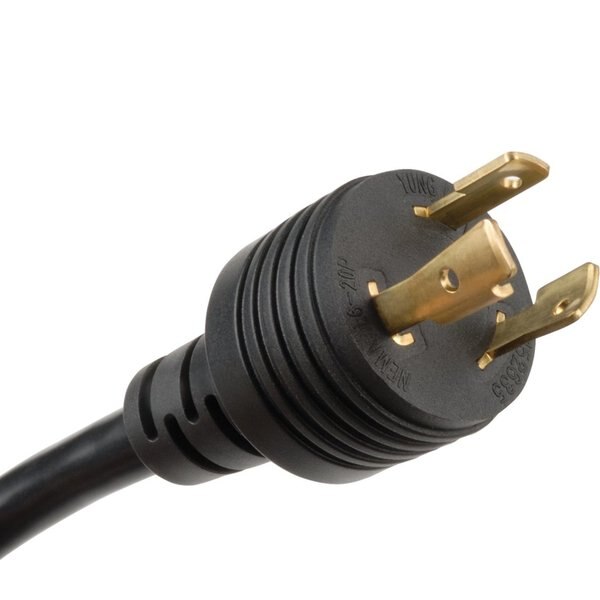

NEMA Plug Configuration NEMA L6-20P; IEC-320 C20

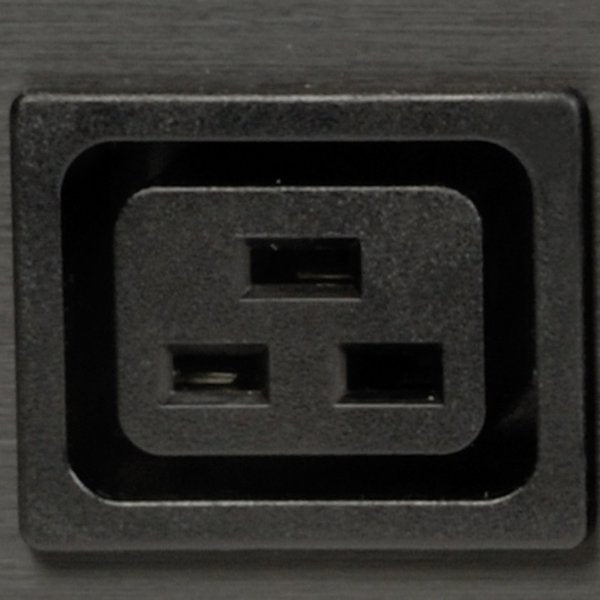

NEMA Receptacle Configuration (20) C13; (4) C19

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 24

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 0C ~ 40C (32F ~ 104F)

Output Capacity Details 3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet

Output Nominal Voltage 200; 208; 220; 230; 240

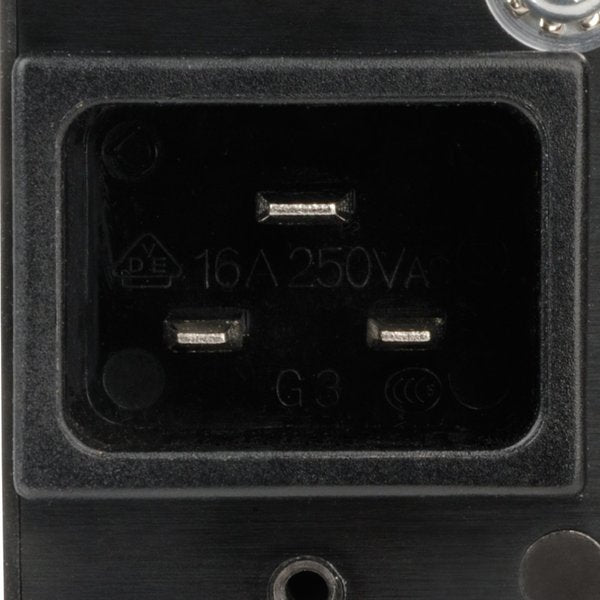

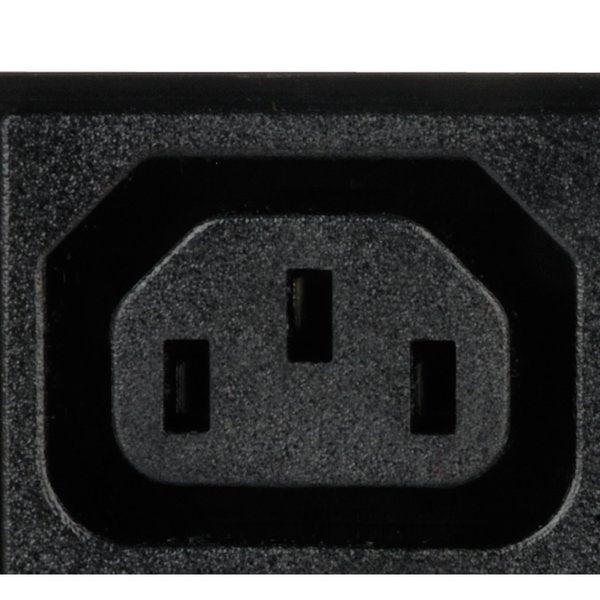

Output Receptacles (20) C13; (4) C19

Output Voltage 208 V AC, 230 V AC, 240 V AC

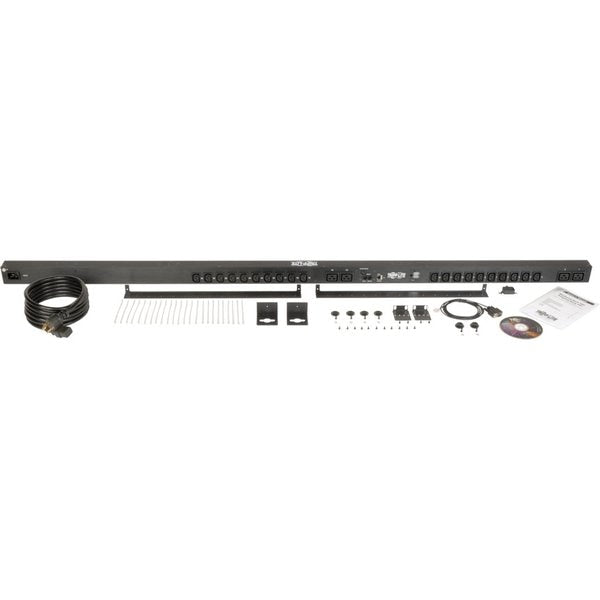

Package Contents PDUMNV20HV PDU Monitored 208V - 240V 20A 24 Outlet, Plug Retention Plates, Rack Mount Brackets, Owner's Manual

Package Includes Rackmount PDU;Plug retention plates;Rack mounting brackets;Owner's manual

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type NEMA L6-20P; IEC-320 C20

PDU Type Monitored

Product Name PDUMNV20HV PDU Monitored 208V - 240V 20A 24 Outlet

Product Type PDU

Protection Type Short Circuit Protection, Overload Protection

Receptacle Detail 24

Recommended Electrical Service 20A 208/240V; 16A 230V

Relative Humidity 5-95% non-condensing

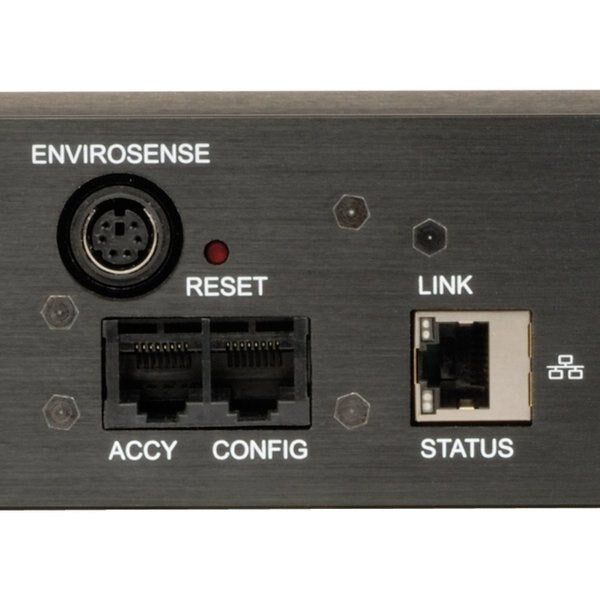

SNMP Compatibility Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems

Storage Temperature Range 5 to 122F (-15 to 50C)

Switches Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees

Unit Dimensions (hwd / in.) 70.000 x 2.190 x 2.650

Voltage 208/240V

Width 2.2
