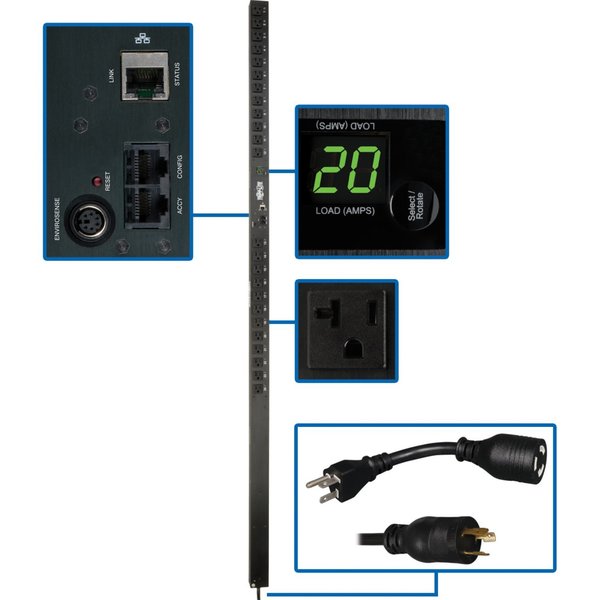

PDU, Switched, 1.9kW, 120V, 24 5-15/20R, 0U

SKU
Brand Tripp Lite
Categories
Description PDU,Switched,1.9kW,120V,24 5-15/20R,0U
graingerSKU: , mscSKU: , zoro_no: G5177947, mongo_id: 65bbe6423aaddbd5a901aa23

Web Price

$999.99 / each

Product Details

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 3.05m

Country of Origin (subject to change) Taiwan, Province of China

Customized Load Management Receptacles Each outlet is individually controllable via remote interface

Depth 2.7

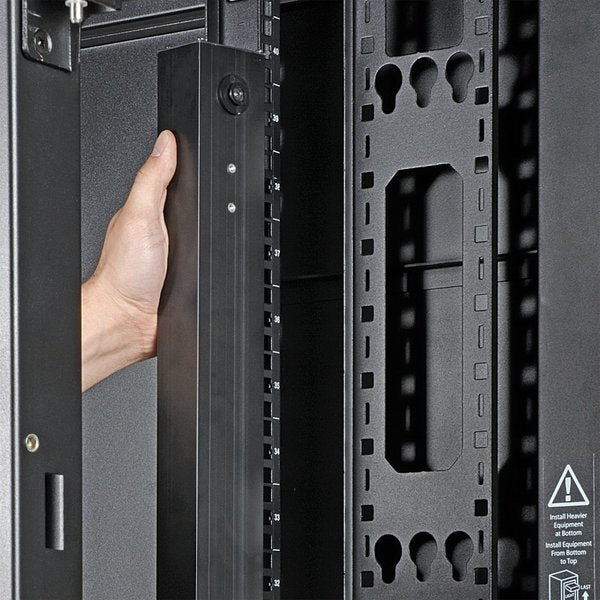

Form Factors Supported 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

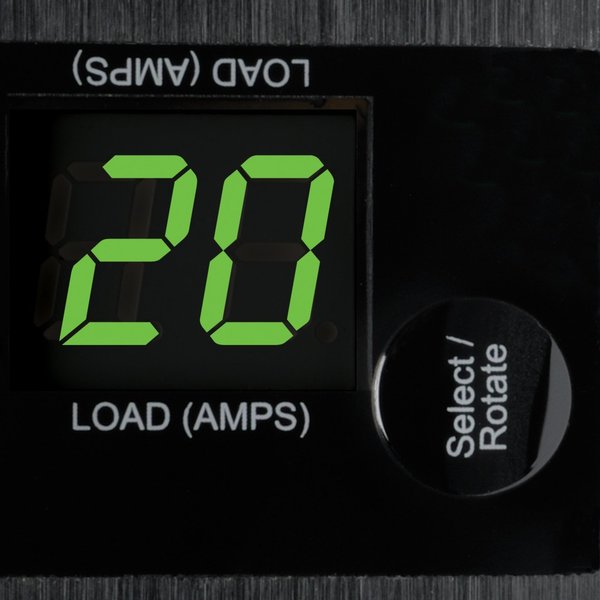

Front Panel LCD Display Digital meter reports PDU output current in amps

Front Panel LEDs 24 power availability LEDs confirm power off/on status for each built-in outlet

Height 70

Input Cord Length (ft.) 10

Input Phase Single-Phase

Input Voltage 120 V AC

Max. Amps 20A

Maximum Input Amps 20

Mount Type Rack-mountable

Mounting Orientation Vertical

Mounting Style Vertical Rackmount/0U

NEMA Plug Configuration NEMA 5-20P; NEMA L5-20P

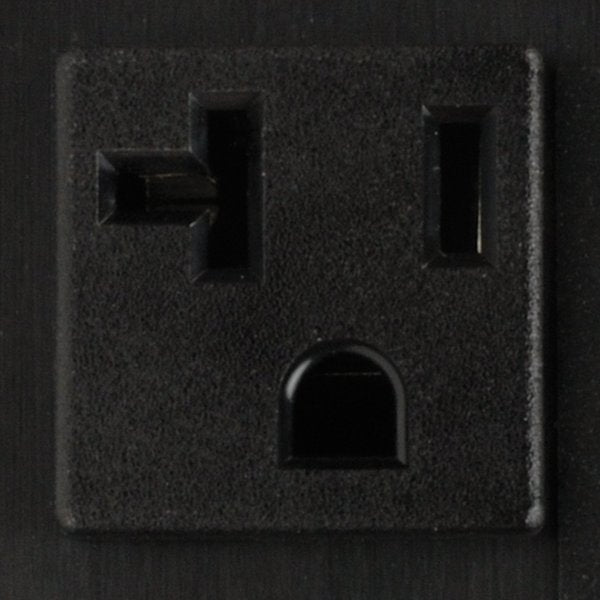

NEMA Receptacle Configuration NEMA 5-15/20R

Network (RJ-45) Yes

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Number of Outlets 24

Operating Elevation (ft.) 0-10,000

Output Capacity Details 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet

Output Nominal Voltage 100; 120; 127

Output Receptacles (24) 5-15/20R

Output Voltage 120 V AC

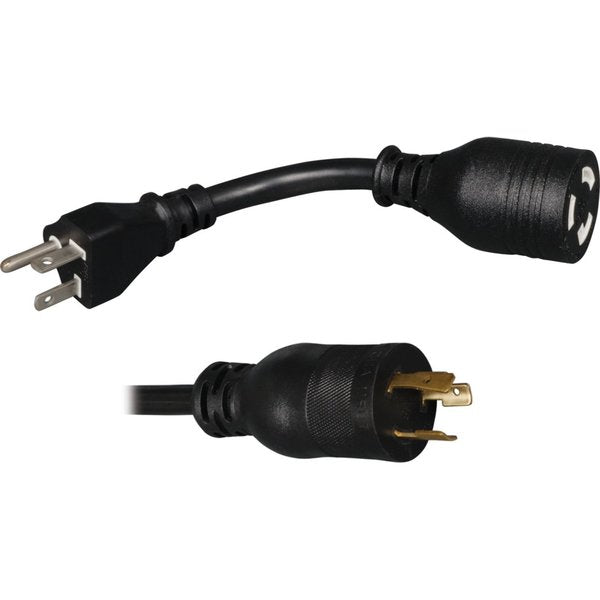

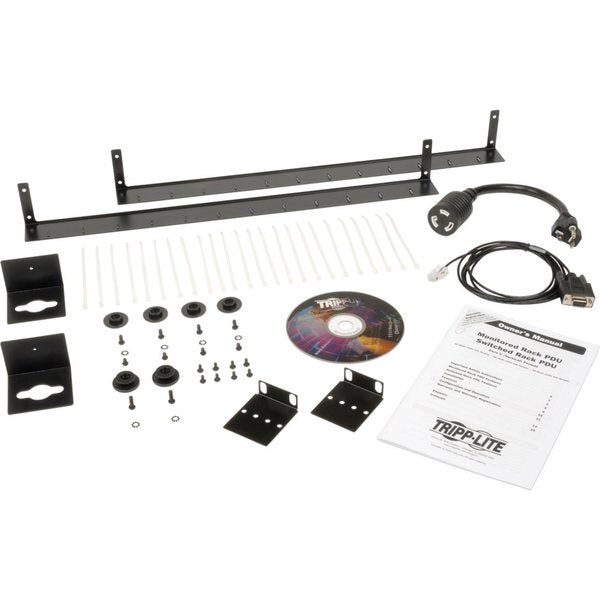

Package Contents PDUMV20NET PDU Switched 120V 20A 24 Outlet, Rackmount PDU, L5-20R to 5-15/20P adapter, Rackmount brackets

Package Includes Rackmount PDU;L5-20R to 5-15/20P adapter;Rackmount brackets;PDUMVROTATEBRKT

Package Quantity 1

PDU Form Factor Vertical (0U)

PDU Plug Type NEMA 5-20P; NEMA L5-20P

PDU Type Switched

Plug/Connector Type NEMA L5-20P

Product Name PDUMV20NET PDU Switched 120V 20A 24 Outlet

Product Type PDU

Receptacle Detail 24 x NEMA 5-15/20R

Recommended Electrical Service 20A 120V

Relative Humidity 0-95% non-condensing

SNMP Compatibility Pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems. Remote management enables outlets to be turned on and off individually

Switches Recessed reset switch for interface reboot and factory reset

Unit Dimensions (hwd / in.) 70.000 x 2.190 x 2.650

Voltage 120VAC

Width 2.2
