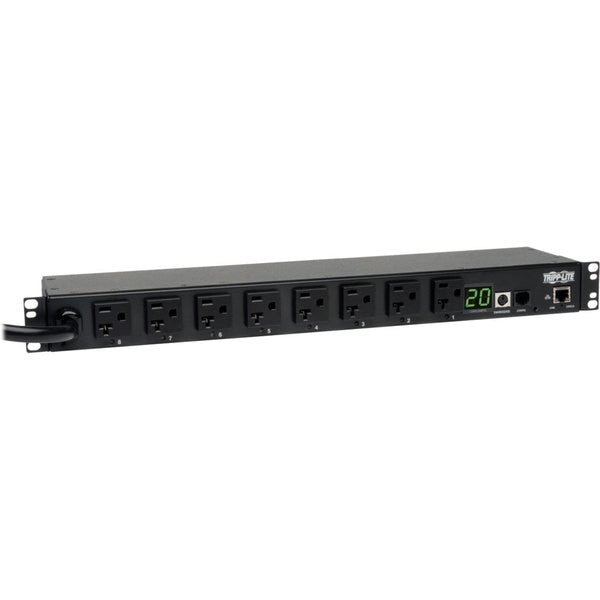

Home / PDU, Switched, 1.9kW, 120V, 8 5-15/20R, 1U

PDU, Switched, 1.9kW, 120V, 8 5-15/20R, 1U

SKU
Brand Tripp Lite
Categories
Description PDU,Switched,1.9kW,120V,8 5-15/20R,1U

Web Price

$741.24 / each

Product Details

Certifications & Standards TAA Compliant

Communications Cable RJ45-to-DB9 configuration/console Access cable

Cord Length 3.66m

Country of Origin (subject to change) Taiwan, Province of China

Customized Load Management Receptacles 8 individually switched output receptacles

Depth 4.3

Form Factors Supported 1U rackmount

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Front Panel LCD Display Digital display reports total PDU output current in amps

Front Panel LEDs 8 LEDs display power on-off status for each output receptacle

Green Certification or Other Recognition RoHS

Green Environmental Attribute Yes

Grounding Rear panel grounding lug

Height 1.8

Housing Material Metal

Includes Switched PDUMH20NET2 8-Outlets PDU1U Mounting BracketsPowerAlert Software CDCord Retention BracketsConfiguration CableUser Manual

Input Cord Length (ft.) 12

Input Phase Single-Phase

Input Voltage 120 V AC

Input Voltage Range 100 V AC - 127 V AC

Material of Construction Metal

Max. Amps 20A

Maximum Input Amps 20

Minimum Required Rack Depth (inches) 9.3

Mount Type Rack-mountable

Mounting Orientation Horizontal

Mounting Style Horizontal Rackmount/1U

Mouting Style Rack-mountable

NEMA Plug Configuration NEMA 5-20P; NEMA L5-20P

NEMA Receptacle Configuration NEMA 5-15/20R

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Network Monitoring Port RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.

Number of Outlets 8

Operating Elevation (ft.) 0-10,000

Output Capacity Details 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet

Output Nominal Voltage 100; 120; 127

Output Receptacles (8) 5-15/20R

Output Voltage 120 V AC

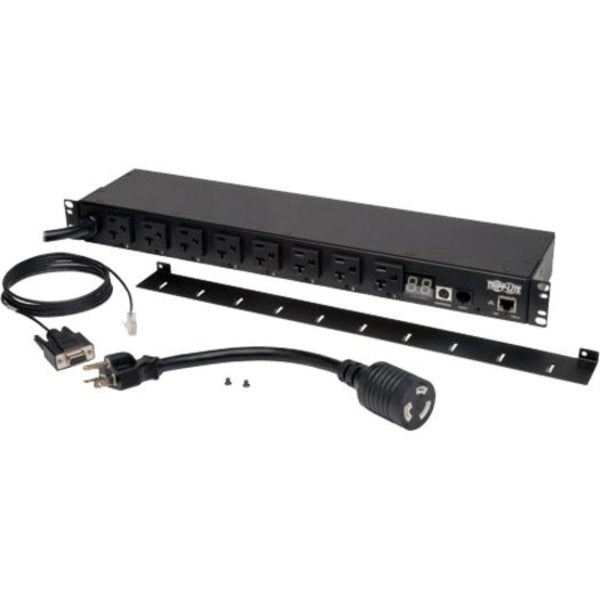

Package Contents Switched PDUMH20NET2 8-Outlets PDU, 1U Mounting Brackets, PowerAlert Software CD, Cord Retention Brackets, Configuration Cable, User Manual

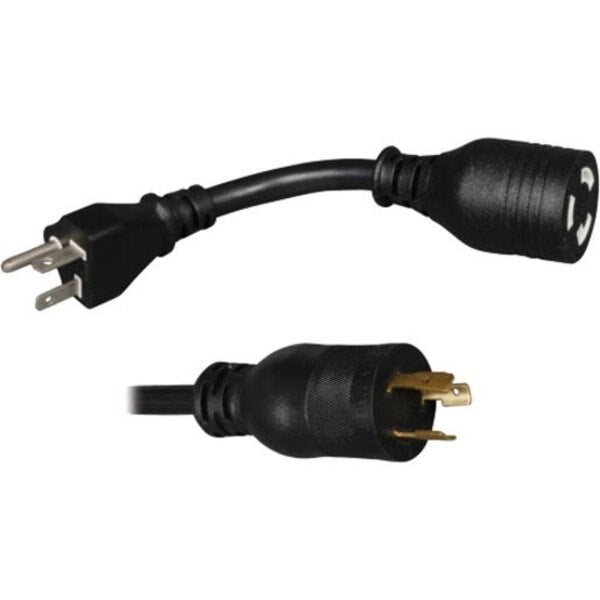

Package Includes PDU with attached L5-20P input power cord and 5-20P plug adapter;Rackmount installation brackets and wire retention plates;Configuration cable;User manual

Package Quantity 1

PDU Form Factor Horizontal (1U)

PDU Plug Type NEMA 5-20P; NEMA L5-20P

PDU Type Switched

Plug/Connector Type NEMA L5-20P, NEMA 5-20P

Power Indicator Yes

Product Name Switched PDUMH20NET2 8-Outlets PDU

Product Series Switched

Product Type PDU

Rack Height 1U

Receptacle Detail 8 x NEMA 5-15/20R

Receptacle Type NEMA 5-15/20R

Recommended Electrical Service 20A 120V

Relative Humidity 5-95% non condensing

SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via PowerAlert Console Launcher, Telnet, SSH, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually

Standards TAA Compliant

Storage Temperature Range 5 to 122F (-15 to 50C)

TAA Compliant Yes

Unit Dimensions (hwd / in.) 1.750 x 17.500 x 4.250

Voltage 120V

Width 17.5
