Home / PDU, Switched, 2.3/2.9kW, 200/240V, 8 C13, 1U

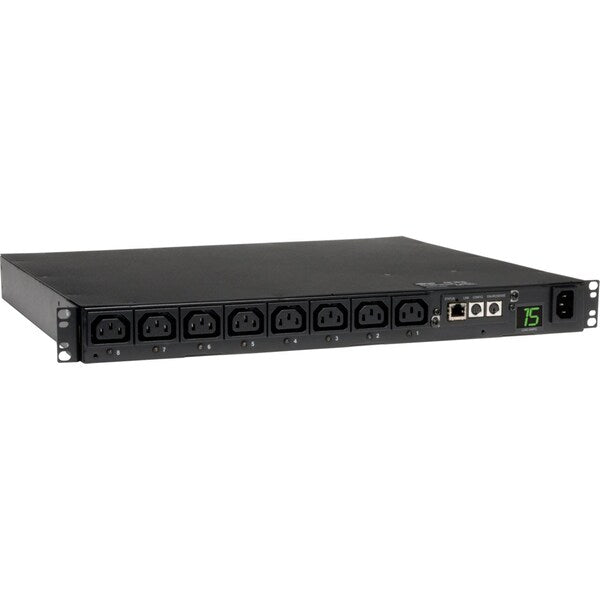

PDU, Switched, 2.3/2.9kW, 200/240V, 8 C13, 1U

SKU
Brand Tripp Lite
Categories
Description PDU,Switched,2.3/2.9kW,200/240V,8 C13,1U
graingerSKU: , mscSKU: , zoro_no: G5178428, mongo_id: 65bbe8bc22d7a989a991279e

Web Price

$721.24 / each

Qty

Product Details

Communications Cable Micro-USB- to-USB A configuration/console Access cable

Cord Length 6.5 ft.

Country of Origin (subject to change) China

Customized Load Management Receptacles 8 individually switched output receptacles

Depth 14.8

Features Digital Display

Form Factors Supported 1U rackmount, Includes mounting accessories for 2-4 post racks

Frequency 50/60 Hz

Frequency Compatibility 50 / 60 Hz

Front Panel LCD Display Digital display reports total PDU output current in amps

Front Panel LEDs 8 LEDs display power on-off status for each output receptacle

Grounding Back panel grounding lug

Height 1.8

High Availability PDU Features Auto Probe Monitoring and Reboot (included); Auto Load Shedding

Housing Material Metal

Hz_ 50/60 Hz

Includes Mounting Accessories

Input Connection Type C14 inlet

Input Cord Length (ft.) 6.5

Input Phase Single-Phase

Input Voltage 230 V AC

Input Voltage Range 208 V AC - 240 V AC

Material of Construction Metal

Max. Amps 15A

Maximum Input Amps 12

Metered Yes

Minimum Required Rack Depth (inches) 17.1

Mount Type Rack-mountable

Mounting Style Horizontal Rackmount/1U

NEMA Plug Configuration IEC-320 C14

NEMA Receptacle Configuration C13

Network (RJ-45) Yes

Network Compatibility 10 Mbps; 100 Mbps (Fast Ethernet)

Network Monitoring Port RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.

Number of Outlets 8

Operating Elevation (ft.) 0-10,000

Operating Temperature Range 32ÃÂ° to 104ÃÂ°F (0ÃÂ° to 40ÃÂ°C)

Output Capacity Details 2.5kW (208V), 2.3kW (230V) / 12A (10A CE) total capacity

Output Nominal Voltage 208/230V

Output Receptacles (8) C13

Output Voltage 240 V AC, 208 V AC

Package Contents PDUMH15HVNET PDU Switched 208V - 240V 15A 8 Outlet, Rackmount PDU, Rack mounting brackets

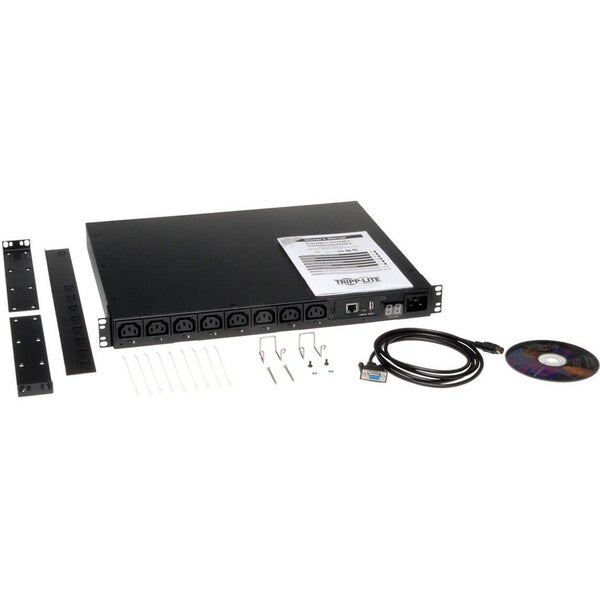

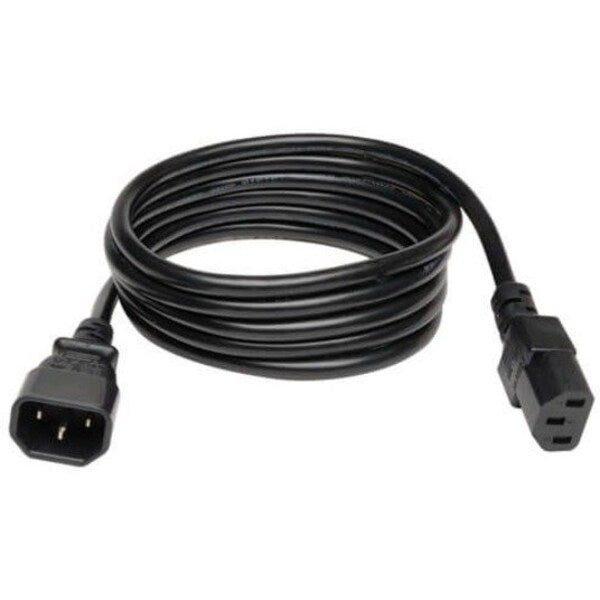

Package Includes 1U Switched PDU;Mounting brackets;Cord retention plates;C13 to C14 power cable

Package Quantity 1

PDU Form Factor Horizontal (1U)

PDU Input Voltage 208; 230

PDU Plug Type IEC-320 C14

PDU Type Switched

Phase 1

Plug/Connector Detail 1 x IEC 60320 C14

Product Certifications CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1

Product Compliance CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)

Product Name PDUMH15HVNET PDU Switched 208V - 240V 15A 8 Outlet

Product Type PDU

Protection Type Short Circuit Protection, Overload Protection

Rack Height 1U

Receptacle Detail 8 x IEC 60320 C13

Recommended Electrical Service Single-phase 12/10A 208/230V service

Relative Humidity 5% to 95% non-condensing

SNMP Compatibility Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Standards UL/CAN 60950-1, FCC / EN Class A, NOM, CE (IEC 60950), TAA Compliant

Storage Temperature Range -22ÃÂ° to 122ÃÂ°F (-30ÃÂ° to 50ÃÂ°C)

TAA Compliant Yes

Type Switched

Unit Dimensions (hwd / in.) 1.720 x 14.770 x 17.330

Voltage 200/240V

Watts 2.5kW (208V), 2.3kW (230V)

Width 17.3
